WEG 14PL42 A - Weed Eater Lawn Tractor (1994) 14HP 42" TRACTOR-CHASSIS/ENCLOSURES Parts Diagram

Lawn Tractor

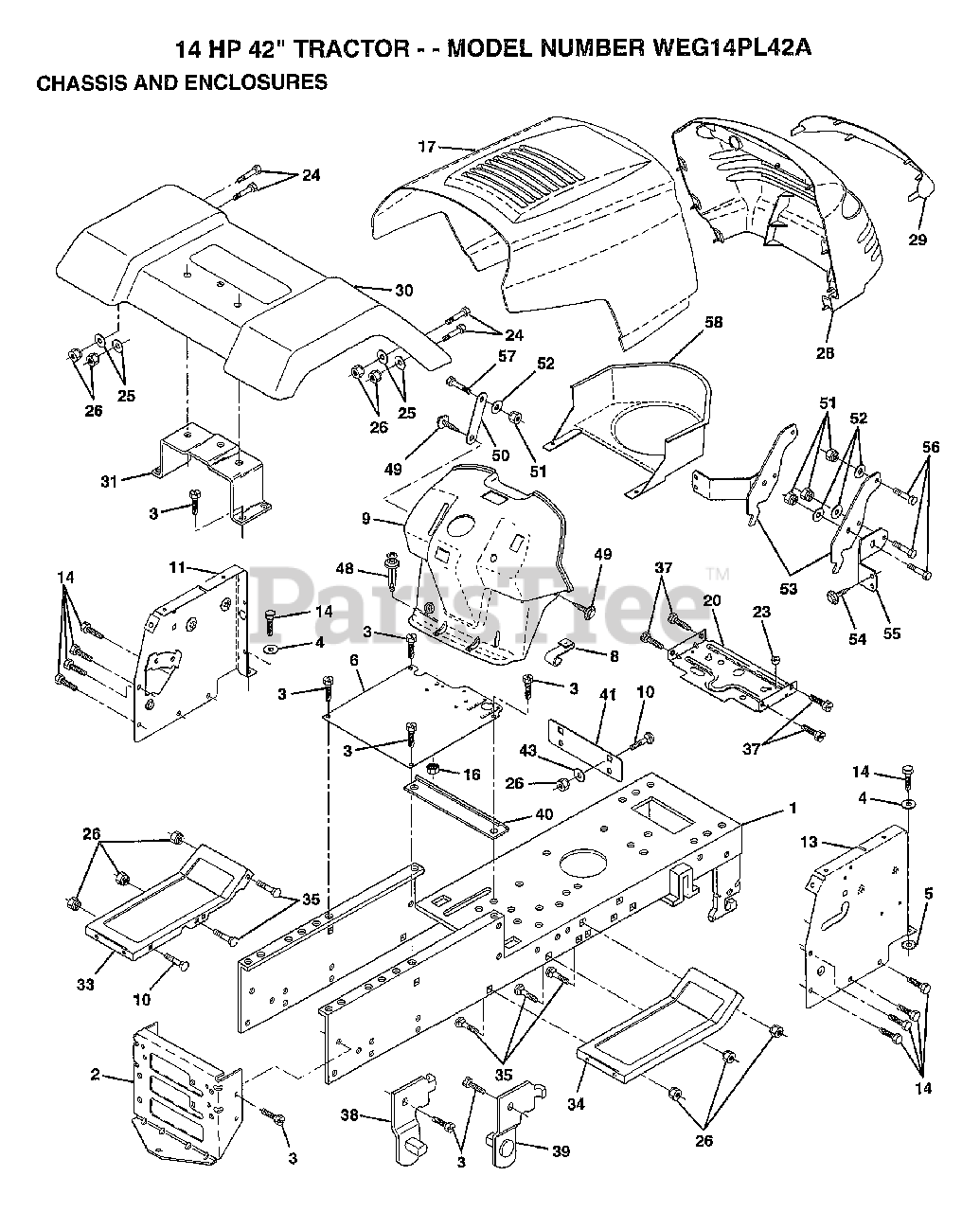

14HP 42" TRACTOR-CHASSIS/ENCLOSURES Parts Diagram

  • Title
1

Electrolux/AYP 140341

SUB= 145501

$

$

Not available

2

Electrolux/AYP 140356

SUB= 145009

$

$

Not available

3

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 4 left!

0

4

Electrolux/AYP 19131216

WASHER
(Superseded to 819131216)

$

$

Not available

5

Electrolux/AYP 11050600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 140169

SUB= 145206X431

$

$

Not available

8

Electrolux/AYP 126471X

"CLIP,INSULATOR"
(Superseded to 532126471)

$4.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 140072

SUB= 532142465

$

$

Not available

10

Murray 72140608

SUB= 72110608

$

$

Not available

11

Electrolux/AYP 140815

SUB= 146965

$

$

Not available

13

Electrolux/AYP 140178

SUB= 146959
(Superseded to 532140178)

$

$

Not available

14

Electrolux/AYP 17490608

SCREW LT
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

16

Murray 73510400

NUT
(Superseded to 873640400)

$

$

Not available

17

Electrolux/AYP 139394X550

SUB= 159639X550
(Superseded to 532182408)

$80.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 140281

SUB= 140281X431

$

$

Not available

23

Murray 124028X

SUB= 532124028

$

$

Not available

24

Electrolux/AYP 74780616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 2 left!

0

26

Electrolux/AYP 73800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 140141

SUB= 157373
(Superseded to 532179101)

$

$

Not available

29

Electrolux/AYP 140273

LENS GRILLE
(Superseded to 532140273)

$

$

Not available

$

$

Not available

31

Electrolux/AYP 139976

BRACKET SUPT FEND
(Superseded to 532139976)

$17.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 105465X550

SUB= 145244X550

$

$

Not available

34

Electrolux/AYP 105464X550

SUB= 145243X550

$

$

Not available

35

Electrolux/AYP 72110606

BOLT
(Superseded to 872110606)

$4.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 17490512

SCREW
(Superseded to 583607701)

$7.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 139886

BRACKET ASM LH
(Superseded to 532139886)

$8.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 139887

BRACKET ASM RH
(Superseded to 532139887)

$

$

Not available

40

Electrolux/AYP 139977

SPACER FENDER LT

$

$

Not available

41

Electrolux/AYP 139978

PLATE EXTEN FEND

$

$

Not available

43

Electrolux/AYP 19171416

WASHER
(Superseded to 819171416)

$4.99

$

In Stock, Qty 8

0

48

Electrolux/AYP 138096

RIVET.PUSH.PLATE
(Superseded to 532138096)

$

$

Not available

49

Electrolux/AYP 17490412

SCREW HEX CRT

$2.99

$

In Stock, only 1 left!

0

50

Electrolux/AYP 142779

BRACE SUPT DASH
(Superseded to 532142779)

$

$

Not available

51

Electrolux/AYP 73800400

NUT
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 19091416

WASHER
(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 140219

HING PICK-OFF HD
(Superseded to 532140219)

$

$

Not available

54

Electrolux/AYP 17030814

SUB= 91817030814
(Superseded to 532161464)

$

$

Not available

55

Electrolux/AYP 143007

BRACKET GRILLE
(Superseded to 532143007)

$

$

Not available

56

Electrolux/AYP 74760412

BOLT LT
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

57

Electrolux/AYP 74780412

SUB= 74780414
(Superseded to 874780412)

$

$

Not available

58

Electrolux/AYP 140806

DUCT AIR 12-15H
(Superseded to 532150127)

$

$

Not available

Electrolux/AYP 5479J

PLUG BUTTON T
(Superseded to 532005479)

$5.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 134014

PLUG DOME
(Superseded to 532134014)

$

$

Not available
