WEG 125R38 A - Weed Eater Lawn Tractor (1994) HOOD Parts Diagram

Lawn Tractor

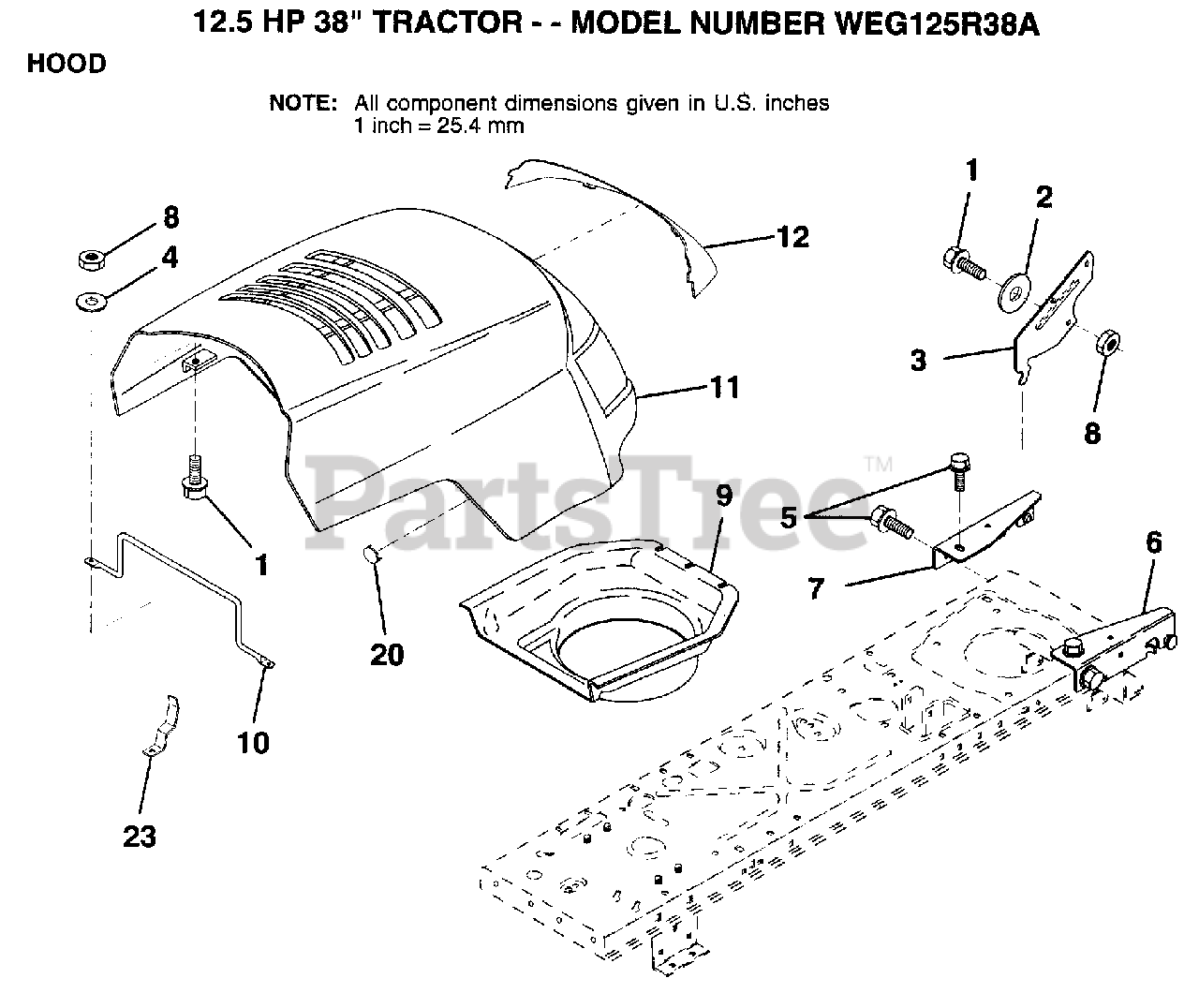

HOOD Parts Diagram

  • Title
1

Electrolux/AYP 74760412

BOLT LT
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

2

Electrolux/AYP 19092016

WASHER
(Superseded to 819092016)

$6.99

$

In Stock, only 1 left!

0

3

Electrolux/AYP 139158

BRACKET.PVT.HOOD

$2.49

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 19091016

WASHER
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 17490512

SCREW
(Superseded to 583607701)

$7.49

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 140051

BRACKET ASM HD RH
(Superseded to 532140051)

$

$

Not available

7

Electrolux/AYP 140050

BRACKET ASM HD LH
(Superseded to 532140050)

$

$

Not available

8

Electrolux/AYP 73800400

NUT
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 139624

DUCT.INTAKE.AIR

$

$

Not available

10

Electrolux/AYP 141321

ROD SUPT HOOD
(Superseded to 584315801)

$3.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 143011

SUB= 144866

$

$

Not available

12

Electrolux/AYP 139298

LENS.PL.BAR.CLEAR

$

$

Not available

23

Electrolux/AYP 139969

LATCH.HOOD.LR
(Superseded to 532139969)

$

$

Not available
