WE T6500 A - Weed Eater Tiller (2003) Handle Assembly Parts Diagram

Tiller

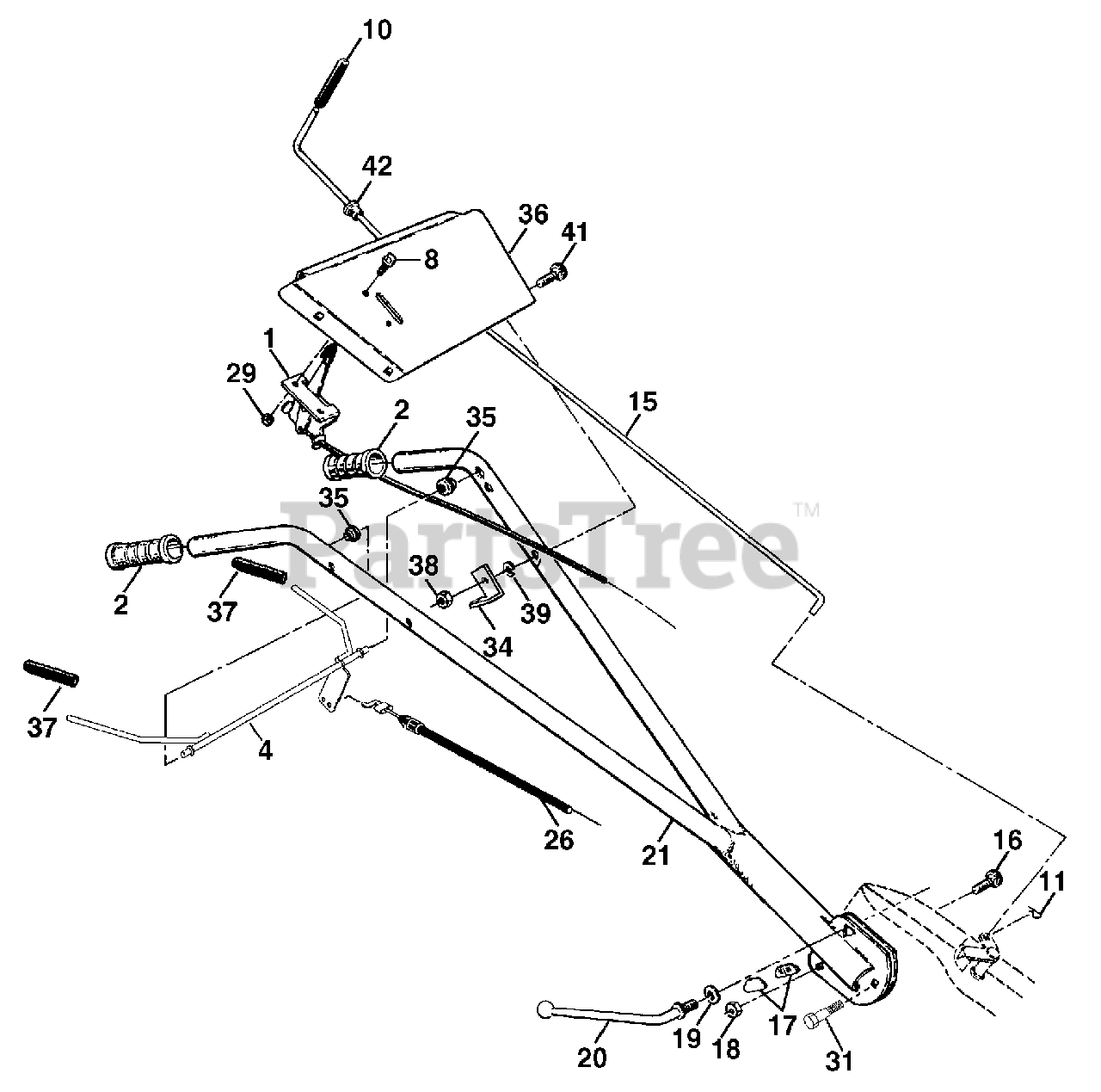

Handle Assembly Parts Diagram

  • Title
1

Electrolux/AYP 175769

Control, Throttle
(Superseded to 532175769)

$37.99

$

In Stock, only 1 left!

0

2

Electrolux/AYP 150744

Grip, Handle
(Superseded to 532150744)

$6.49

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 159227

Bar, Control
(Superseded to 532159227)

$26.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 71191008

Screw, Pan Hd. #10-24
(Superseded to 871191008)

$6.49

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 8389J

Grip, Handle
(Superseded to 532008389)

$

$

Not available

11

Electrolux/AYP 4497H

Clip, Hairpin
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

15

Electrolux/AYP 108281X

Rod, Shift
(Superseded to 532108281)

$

$

Not available

16

Electrolux/AYP 72110608

Bolt, Carriage 3/8-16 x 1 Gr. 5
(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 109229X

Lock, Handle
(Superseded to 532109229)

$7.49

$

In Stock, only 3 left!

0

18

Electrolux/AYP 73680600

Nut Crownlock 3/8-16 UNC
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 19131611

Washer 13/32 x 1 x 11 Ga.
(Superseded to 596140201)

$3.99

$

In Stock, only 1 left!

0

20

Electrolux/AYP 109228X

Lever, Lock, Handle
(Superseded to 532109228)

$13.99

$

In Stock, only 1 left!

0

$

$

Not available

26

Electrolux/AYP 159232

Cable, Clutch
(Superseded to 532159232)

$

$

Not available

29

Electrolux/AYP 73731000

Nut, Keps #10-24 UNC

$2.49

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 150696

Bolt, Pivot
(Superseded to 532150696)

$7.49

$

In Stock, only 3 left!

0

34

Electrolux/AYP 145821

Bracket, Clutch Cable
(Superseded to 532145821)

$

$

Not available

35

Electrolux/AYP 146480

Grommet, Handle
(Superseded to 532146480)

$

$

Not available

36

Electrolux/AYP 126949X550

Bracket, Handle

$

$

Not available

37

Electrolux/AYP 102604X

Grip, Bar Control
(Superseded to 532102604)

$6.49

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 10040500

Washer, Lock 5/16
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 73800500

Locknut 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

41

Electrolux/AYP 72110514

Bolt, Carriage 5/16-18 x 1-3/4
(Superseded to 872110514)

$4.99

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 121248X

Bushing, Snap
(Superseded to 532121248)

$6.49

$

Usually ships in 3-10 days

0
