WE F500 F - Weed Eater Tiller (1998) BELT GUARD AND PULLEY Parts Diagram

Tiller

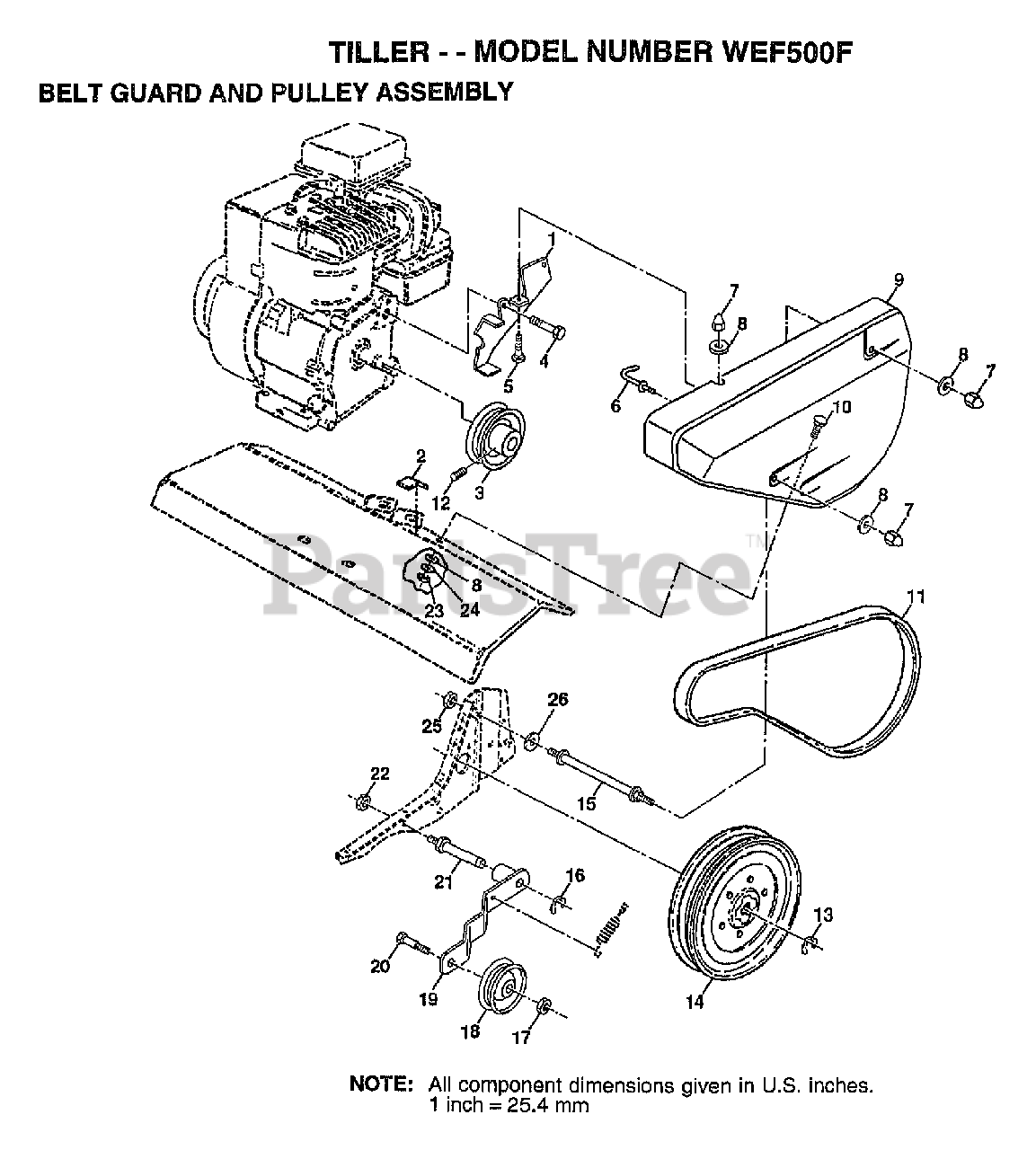

BELT GUARD AND PULLEY Parts Diagram

  • Title
1

Electrolux/AYP 159233

BRKT GUARD BELT

$2.49

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 109227X

PAD IDLER TI
(Superseded to 532109227)

$4.99

$

In Stock, Qty 20+

0

3

Electrolux/AYP 130812

ENGINE PULLEY
(Superseded to 592642101)

$13.99

$

In Stock, only 2 left!

0

4

Electrolux/AYP 74610812

BOLT.HEX.HEAD
(Superseded to 583614001)

$4.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 72140404

BOLT
(Superseded to 872140404)

$6.49

$

Usually ships in 3-10 days

0

6

$

$

Not available

7

Electrolux/AYP 104213X

NUT-CAP TI
(Superseded to 583644101)

$6.49

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 19091016

WASHER
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 131158X550

GUARD.PNT.BELT

$

$

Not available

10

Electrolux/AYP 72140405

BOLT T
(Superseded to 872140405)

$7.49

$

In Stock, Qty 7

0

11

Electrolux/AYP 9180R

V BELT STD
(Superseded to 532009180)

$30.99

$

In Stock, only 3 left!

0

12

Electrolux/AYP 23230506

SET SCREW
(Superseded to 823230506)

$4.99

$

In Stock, only 2 left!

0

13

Electrolux/AYP 12000028

SUB= 2267J
(Superseded to 812000028)

$7.49

$

In Stock, Qty 7

0

14

Electrolux/AYP 151223

SHEAVE.TRANS
(Superseded to 532151223)

$39.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 110528X

BOLT TI
(Superseded to 583660001)

$17.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 12000036

KLIP RING TI
(Superseded to 812000036)

$6.49

$

In Stock, only 1 left!

0

17

Electrolux/AYP 73350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

18

Electrolux/AYP 161806

"PULLEY,IDLER"
(Superseded to 532161806)

$31.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 162290

"ARM, IDLER"
(Superseded to 583005201)

$5.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 74760620

SUB= 74780620
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 106968X

SHAFT IDLER TI
(Superseded to 532106968)

$15.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 73350500

JAM NUT TI
(Superseded to 873350500)

$8.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 73220400

SUB= 50675
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

24

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

25

Murray 73510400

NUT
(Superseded to 873640400)

$

$

Not available

26

Electrolux/AYP 19091416

WASHER
(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0
