WE F500 E - Weed Eater Tiller (1998) HANDLE Parts Diagram

Tiller

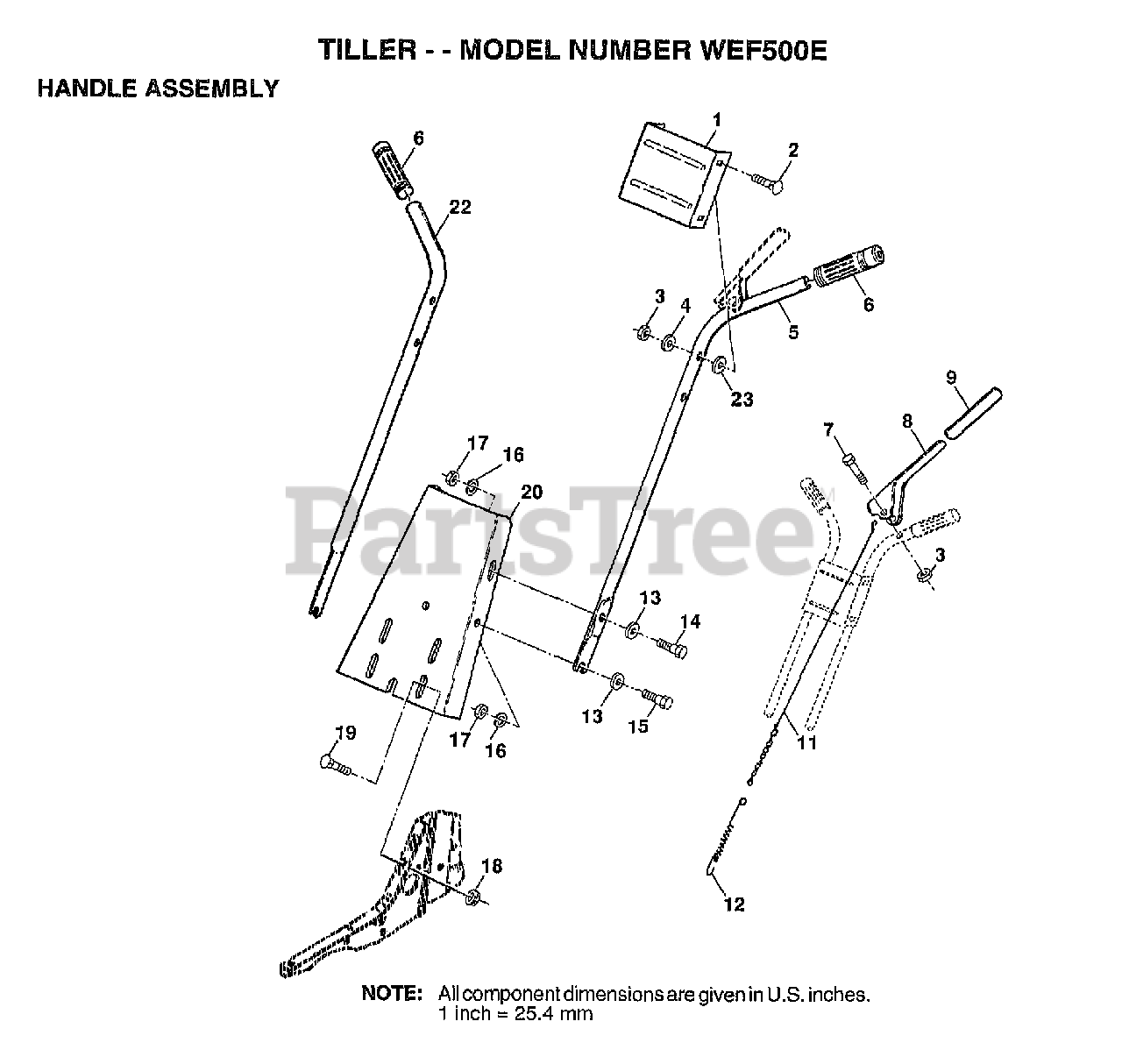

HANDLE Parts Diagram

  • Title
1

Electrolux/AYP 137176X550

PANEL.CNTRL.HDLE.
(Superseded to 583675501)

$

$

Not available

2

Electrolux/AYP 72140512

BOLT
(Superseded to 582736101)

$

$

Not available

3

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

4

Electrolux/AYP 19111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

5

Electrolux/AYP 151473

HANDLE LH
(Superseded to 582981601)

$14.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 9266R

SUB= 624A78

$

$

Not available

7

Electrolux/AYP 74760524

BOLT.HEX.5/16-1.5

$2.49

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 3069J

SUB= 164937
(Superseded to 583014501)

$

$

Not available

9

Electrolux/AYP 8206H

GRIP T
(Superseded to 532008206)

$11.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 3067J

SUB= 100382K

$

$

Not available

12

Electrolux/AYP 3070J

SPRING EXT TI
(Superseded to 583731801)

$

$

Not available

13

Electrolux/AYP 19121414

WASHER
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

14

$

$

Not available

15

Electrolux/AYP 74760512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

16

Electrolux/AYP 10040500

LOCKWASHER
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 73220500

NUT.HEX.5/16-18
(Superseded to 873220500)

$6.49

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 98000129

NUT
(Superseded to 532426589)

$6.49

$

In Stock, Qty 15

0

19

Electrolux/AYP 72140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

20

Electrolux/AYP 9209R550

PANEL.HANDLE.TILL
(Superseded to 583780101)

$11.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 151474

HANDLE RH
(Superseded to 584447801)

$14.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 2 left!

0
