WE 301 (960220021-00) - Weed Eater Lawn Tractor (2013-11) DRIVE Parts Diagram

Lawn Tractor

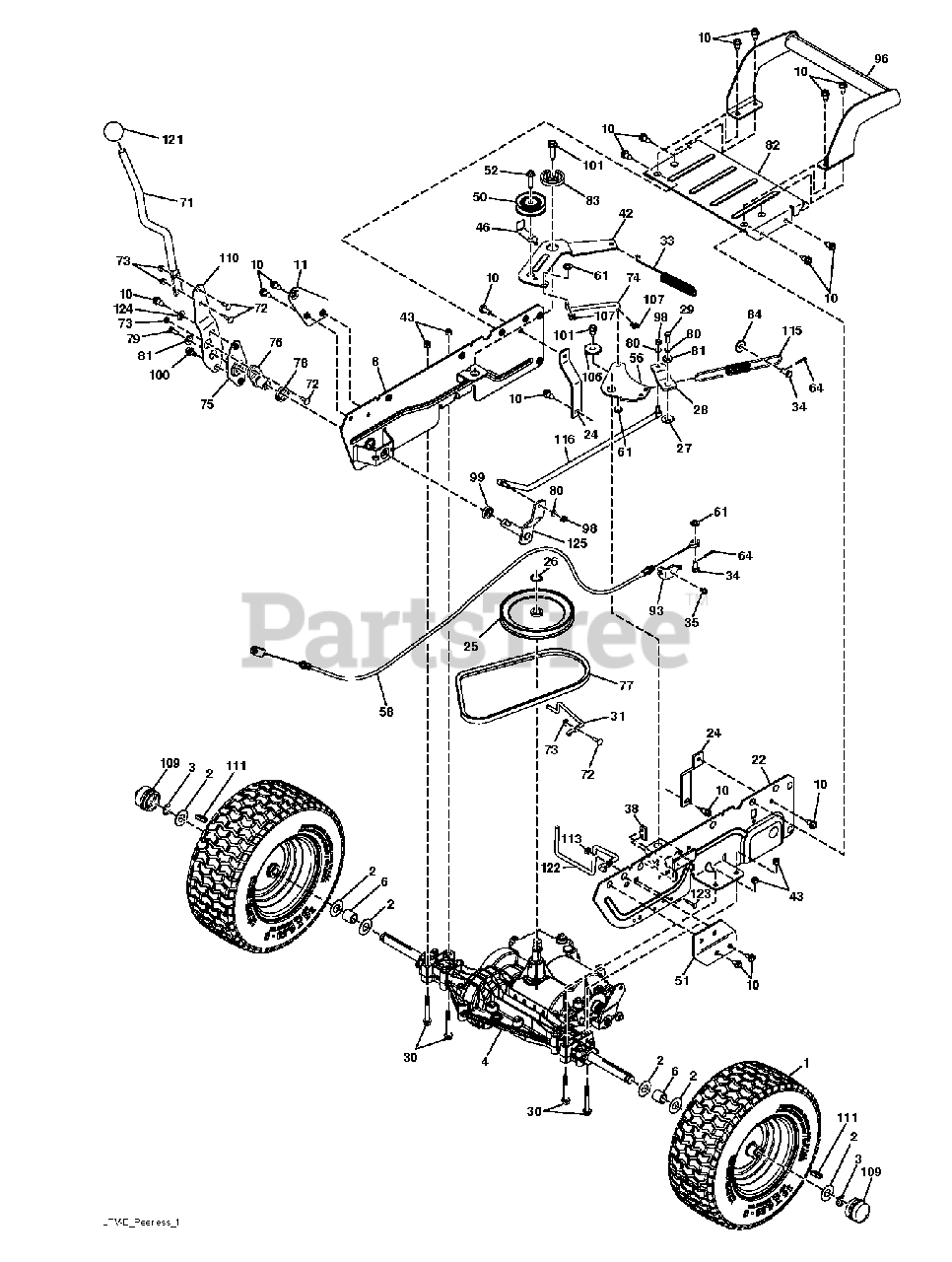

DRIVE Parts Diagram

  • Title

1

Poulan TBD

Note: 532 44 12-38- WHEEL

$

$

Not available

2

Poulan 532121748

WASHER

$4.99

$

In Stock, Qty 10

0

3

Poulan 812000001

E-RING LT

$4.99

$

Usually ships in 3-10 days

0

4

Poulan 584836301

TRANSMISSION 4SPD MST 204-583A

$666.99

$

Usually ships in 3-10 days

0

6

Poulan 532156972

SPACER, AXLE PVST

$6.99

$

Usually ships in 3-10 days

0

8

Poulan 581524702

WELDMENT.SIDEPLATE.RH.X431

$68.99

$

Usually ships in 3-10 days

0

10

Poulan 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 14

0

11

Poulan 532436741

BRACKET.SUPPORT.RH

$7.49

$

Usually ships in 3-10 days

0

22

Poulan 581524602

WELDMENT.SIDEPLATE.LH.X431

$

$

Not available

24

Poulan 580960802

STRAP.TORQUE.PMST.LRVB.PNT.431

$

$

Not available

25

Poulan 581437701

PULLEY.INPUT.LRVB.PMST

$14.99

$

Usually ships in 3-10 days

0

26

Poulan 812000028

RETAINING RING LT
(Superseded to 532002267)

$7.49

$

In Stock, Qty 8

0

27

Poulan 532105701

WASH-SHFT PLT LT

$6.49

$

Usually ships in 3-10 days

0

28

Poulan 580949302

ARM.SHIFTER.GEARDRIVE.PNT.431

$

$

Not available

29

Poulan 874550412

Bolt, 1/4-20 unf Grade 8 w/Patch
(Superseded to 871040412)

$6.49

$

Usually ships in 3-10 days

0

30

Poulan 874490540

BOLT

$4.99

$

Usually ships in 3-10 days

0

31

Poulan 581438102

Drive Belt Keeper, Lrvb.X431

$5.99

$

In Stock, only 2 left!

0

33

Poulan 581593101

Tensioner Spring

$9.49

$

In Stock, only 3 left!

0

34

Poulan 581525001

PIN.HEX.CROSSDRILLED.3125

$3.49

$

Usually ships in 3-10 days

0

35

Poulan 817490406

SCREW.1/4-20X3/8

$4.99

$

Usually ships in 3-10 days

0

38

Poulan 581223001

PLATE NUT ZTR
(Superseded to 581223002)

$3.99

$

In Stock, only 4 left!

0

42

Poulan 580961302

ARM.CLUTHCHING.LRVB..PNT.431

$4.99

$

Usually ships in 3-10 days

0

43

Poulan 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

46

Poulan 581444202

KEEPER.BELT.CLUTCHING.ARM.X431

$5.99

$

Usually ships in 3-10 days

0

50

Poulan 532199534

PULLEY.V-IDLER.

$37.99

$

Usually ships in 3-10 days

0

51

Poulan 532436739

BRACKET SUPPORT.LH

$6.49

$

In Stock, only 4 left!

0

52

Poulan 817580520

Bolt, 5/16-18 X 1.25

$4.99

$

In Stock, only 3 left!

0

56

Poulan 581444002

BELLCRANK GROUNDDRIVE.LRVB.431

$10.99

$

Usually ships in 3-10 days

0

58

Poulan 581531601

Brake Cable, LRVB Pmst

$48.99

$

Usually ships in 3-10 days

0

61

Poulan 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 18

0

64

Poulan 876020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

Usually ships in 3-10 days

0

71

Poulan 532436865

TUBE.SHIFT.LRVB

$15.99

$

Usually ships in 3-10 days

0

72

Poulan 872110406

(Superseded to 582735501)

$7.99

$

Usually ships in 3-10 days

0

73

Poulan 873680400

NUT.CROWNLOCK.1/4
(Superseded to 586668901)

$4.99

$

In Stock, Qty 18

0

74

Poulan 580961201

LINK.CLUTCHING.ARM.BELLCRANK

$4.99

$

Usually ships in 3-10 days

0

75

Poulan 532428464

MNTG BRKT. SHIFT ARM

$4.99

$

Usually ships in 3-10 days

0

76

Poulan 532444304

HUB.SHIFT

$8.99

$

Usually ships in 3-10 days

0

77

Poulan 581605901

Drive Belt, Ground.Lrvb.Pmst

$27.99

$

In Stock, only 3 left!

0

78

Poulan 532429055

SPACER.NYLON.

$4.99

$

Usually ships in 3-10 days

0

79

Poulan 874780412

(Superseded to 874780416)

$6.49

$

Usually ships in 3-10 days

0

80

Poulan 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

81

Poulan 819091210

WASHER LT
(Superseded to 734115441)

$4.99

$

Usually ships in 3-10 days

0

82

Poulan 581525202

COVER.REAR.LRVB.PMSTX431

$

$

Not available

83

Poulan 532194321

SPACER.RETAINER

$9.49

$

In Stock, Qty 11

0

84

Poulan 819111610

WASHER

$6.49

$

Usually ships in 3-10 days

0

93

Poulan 532428070

BRAKE.MOUNT.CABLE.LRV

$4.99

$

In Stock, only 1 left!

0

96

Poulan 532442073

BUMPER.REAR.WELDMENT.BLACK.LRV

$34.99

$

Usually ships in 3-10 days

0

98

Poulan 532150360

NUT LOCK CENTER 1/4 -28 FNTHD
(Superseded to 873610400)

$

$

Not available

99

Poulan 581049201

SPACER.ARM.SHIFTER

$3.49

$

Usually ships in 3-10 days

0

100

Poulan 532165492

BOLT.SHOULDER.5/16-18X

$10.99

$

In Stock, only 3 left!

0

101

Poulan 817060624

SCREW 3/8-16 X 1-1/2

$7.49

$

In Stock, only 1 left!

0

106

Poulan 532199092

SPACER.RETAINER

$6.99

$

In Stock, Qty 12

0

107

Poulan 532178062

CLIP RETAINER

$4.99

$

In Stock, only 1 left!

0

109

Poulan 532436499

CAP.HUB.AXLE.LRVA/B

$7.49

$

Usually ships in 3-10 days

0

110

Poulan 532428461

BRACKET, SHIFTER FLEX

$15.99

$

Usually ships in 3-10 days

0

111

Poulan 532123583

SQUARE KEY

$4.99

$

In Stock, only 3 left!

0

113

Poulan 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 3 left!

0

115

Poulan 581493801

SPRING.BRAKE.ENGAGE.LRVB.PMST

$4.99

$

Usually ships in 3-10 days

0

116

Poulan 580949201

LINK.STUD.BALL.GEARDRIV

$17.99

$

Usually ships in 3-10 days

0

121

Poulan 583960901

KNOB.SHIFT.GEARDRIVE.LRVB

$

$

Not available

122

Poulan 584443802

Engine Belt Keeper, LRV Gen2

$

$

Not available

123

Poulan 872110505

BOLT
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

124

Poulan 532166002

WASHER.SRRTD.5/16

$6.49

$

Usually ships in 3-10 days

0

125

Poulan 580949802

SUBASM.SHAFT.SIFT.GEARDRVE.431

$9.49

$

Usually ships in 3-10 days

0
