WE 261 (960280001-02) - Weed Eater Lawn Tractor (2011-11) CHASSIS ENCLOSURES Parts Diagram

Lawn Tractor

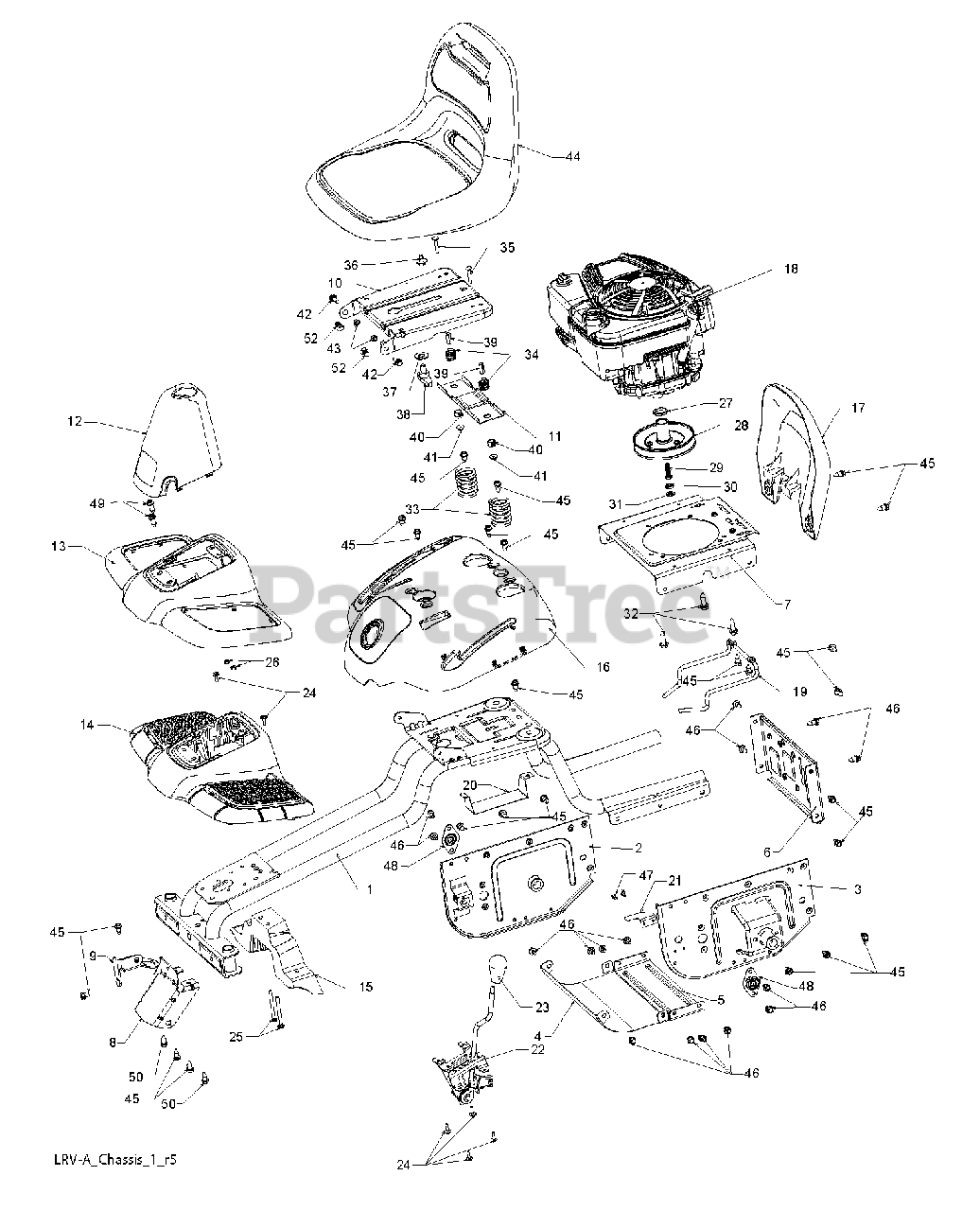

CHASSIS ENCLOSURES Parts Diagram

  • Title

1

Poulan 532428048

CHASSIS.WLD.26".LRV

$

$

Not available

2

Poulan 532428247

SUPPORT, AXEL LH

Note: LH

$66.99

$

Usually ships in 3-10 days

0

3

Poulan 532428244

RP SUPPORT, AXLE RH
(Superseded to 532439816)

Note: RH

$66.99

$

Usually ships in 3-10 days

0

4

Poulan 532428346

SHIELD, TRANSAXLE FRONT

Note: FRONT

$

$

Not available

5

Poulan 532428110

STRAP.CROSS.FRICTION.DRIVE

$13.99

$

In Stock, only 1 left!

0

6

Poulan 532428109

COVER, FRICTION DRIVE

$24.99

$

Usually ships in 3-10 days

0

7

Poulan 532428040

PLATE, ENGINE

$

$

Not available

8

Poulan 532428576

BRACKET, CHASSIS FRONT

Note: FRONT

$14.99

$

Usually ships in 3-10 days

0

9

Poulan 532428856

BRACKET, STEERING SUPPORT

$7.49

$

Usually ships in 3-10 days

0

10

Poulan 532195530

PAN.ASM.SEAT.1SLOT

$21.99

$

Usually ships in 3-10 days

0

11

Poulan 532174648

BRKT.MNTNG.SWITCH.SEAT.BLACK

$10.99

$

Usually ships in 3-10 days

0

12

Poulan 532428248

BOOT, DUST LRV (2 2)

$20.99

$

Usually ships in 3-10 days

0

13

Poulan 532436496

FOOTREST.AESTHETIC.WE.GRN.LRV

$29.99

$

Usually ships in 3-10 days

0

14

Poulan 532428250

STRUCTURE, FOOT REST

$47.99

$

Usually ships in 3-10 days

0

15

Poulan 532428249

SUPPORT, FOOT REST

$23.99

$

Usually ships in 3-10 days

0

16

Poulan 532436497

FENDER.CNTRL.PNL.WE.GRN.LRV

$

$

Not available

17

Poulan 532428348

GUARD.ENGINE.LRV

$24.99

$

Usually ships in 3-10 days

0

18

Poulan 000000000

Note: ENGINE B S MODEL NO 12S907-2463-B1 (440885)

$

$

Not available

19

Poulan 532428986

KEEPER, BELT

$9.99

$

Usually ships in 3-10 days

0

20

Poulan 532428046

BRACKET, BATTERY LRV

$6.49

$

In Stock, only 1 left!

0

21

Poulan 532429815

LEVER, SWITCH

$4.99

$

Usually ships in 3-10 days

0

22

Poulan 532428826

CABLE.ASM.CLUTCH.W/BRACKET

$109.99

$

Usually ships in 3-10 days

0

23

Poulan 532149846

KNOB.OVAL.CUSTOM.BLACK

$13.99

$

In Stock, only 1 left!

0

24

Poulan 532416358

SCREW.#10 X 0.750.BOS (2 2)
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

25

Poulan 872140424

BOLT.CARRIAGE

$5.99

$

Usually ships in 3-10 days

0

26

Poulan 873510400

NUT
(Superseded to 873640400)

$

$

Not available

27

Poulan 532430087

SPACER.ENGINE.B&S.LRVA

$4.99

$

Usually ships in 3-10 days

0

28

Poulan 532428301

DISC, FRICTION ASM
(Superseded to 580747201)

$53.99

$

Usually ships in 3-10 days

0

29

Poulan 532430817

BOLT, SCKT HD 3/8-24 X 1 .25

$4.99

$

Usually ships in 3-10 days

0

30

Poulan 532430470

BEARING.BALL.689ZZ

$7.49

$

In Stock, only 1 left!

0

31

Poulan 532437322

SPACER.NEUTRAL

$4.99

$

In Stock, only 2 left!

0

32

Poulan 817490506

(Superseded to 583608601)

$2.99

$

Usually ships in 3-10 days

0

33

Poulan 532124181

SPRING COMPRESSION
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

34

Poulan 532121250

SPRING

$7.49

$

Usually ships in 3-10 days

0

35

Poulan 872050412

BOLT.ROUND.HEAD.SQUARE.NECK

$6.49

$

Usually ships in 3-10 days

0

36

Poulan 532127018

BOLT,SHOULD

$7.49

$

Usually ships in 3-10 days

0

37

Poulan 819171912

WASHER

$7.49

$

In Stock, only 1 left!

0

38

Poulan 532166369

KNOB.SEAT.ADJ.WINGNUT

$10.99

$

In Stock, only 1 left!

0

39

Poulan 532134300

SPACER SPLIT 28X.96

$7.49

$

Usually ships in 3-10 days

0

40

Poulan 532121248

BUSHING

$6.49

$

Usually ships in 3-10 days

0

41

Poulan 532123976

NUT T
(Superseded to 586668901)

$4.99

$

In Stock, Qty 18

0

42

Poulan 532171852

BOLT.SHOULDER.5/16-18
(Superseded to 587907801)

$4.99

$

In Stock, Qty 8

0

43

Poulan 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

44

Poulan 532440691

SEAT.SUBASY.OPP.WEEDEATER.LRVA

$169.99

$

Usually ships in 3-10 days

0

45

Poulan 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 14

0

46

Poulan 817490508

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

47

Poulan 532086777

(Superseded to 532750097)

$4.99

$

In Stock, Qty 16

0

48

Poulan 532408981

BEARING FLANGE BALL

$9.99

$

In Stock, Qty 10

0

49

Poulan 817060516

SCREW 5/16-18X1

$6.49

$

Usually ships in 3-10 days

0

50

Poulan 532165492

BOLT.SHOULDER.5/16-18X

$10.99

$

In Stock, only 3 left!

0

52

Poulan 532145006

PUSH CLIP

$6.49

$

Usually ships in 3-10 days

0
