WE 261 (960240002-02) - Weed Eater Lawn Tractor (2011-10) DRIVE Parts Diagram

Lawn Tractor

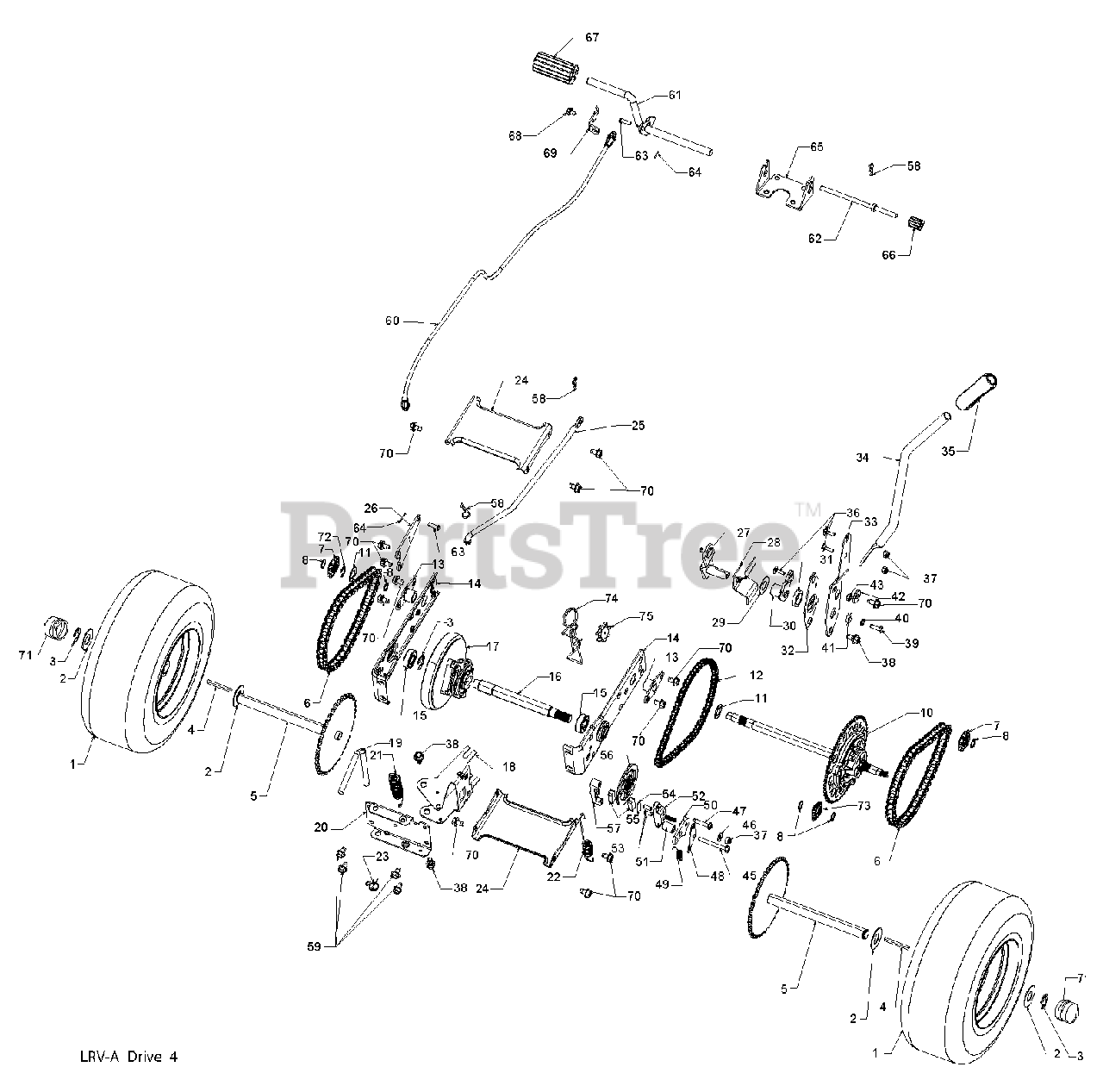

DRIVE Parts Diagram

  • Title

--

Poulan 532436144

TRANSAXLE.KIT.SERVICE

$605.99

$

Usually ships in 3-10 days

0

1

Poulan 532436498

WHEEL.ASM.REAR.LRV.13"MS613
(Superseded to 581420701)

Note: REAR

$

$

Not available

2

Poulan 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

3

Poulan 812000001

E-RING LT

$4.99

$

Usually ships in 3-10 days

0

4

Poulan 532123583

SQUARE KEY

$4.99

$

In Stock, Qty 7

0

5

Poulan 532427939

WELDMENT.AXLE.DRIVEN

$51.99

$

Usually ships in 3-10 days

0

6

Poulan 532428069

CHAIN.DRIVE

$

$

Not available

7

Poulan 532427873

SPROCKET.9.TOOTH.SPLINED

$8.99

$

Usually ships in 3-10 days

0

8

Poulan 812100009

SNAP RING

$4.99

$

Usually ships in 3-10 days

0

10

Poulan 532428876

DIFFERENTIAL ASM LRV
(Superseded to 532436144)

$605.99

$

Usually ships in 3-10 days

0

11

Poulan 532001370

THRUST WASHER

Note: 1370H

$6.49

$

In Stock, only 2 left!

0

12

Poulan 532430645

CHAIN, PRIMARY DRIVE

$24.99

$

In Stock, only 4 left!

0

13

Poulan 532430845

BUSHING.FLANGE.5/8

$

$

Not available

14

Poulan 532438568

BRACKET.CARRIER

$10.99

$

Usually ships in 3-10 days

0

15

Poulan 532124793

BEARING.BALL

Note: 9159R

$15.99

$

Usually ships in 3-10 days

0

16

Poulan 532427926

SHAFT.INPUT.LRV

$40.99

$

Usually ships in 3-10 days

0

17

Poulan 532437281

SUBASM.WHEEL.FRICTION
(Superseded to 532436144)

$605.99

$

Usually ships in 3-10 days

0

18

Poulan 532424759

ARM, SHIFT

$11.99

$

Usually ships in 3-10 days

0

19

Poulan 532430870

ROD.BYPASS.LRV

$15.99

$

Usually ships in 3-10 days

0

20

Poulan 532427997

BRACE CARRIER REAR

$8.99

$

In Stock, only 1 left!

0

21

Poulan 532428077

SPRING, CARRIER

$7.49

$

In Stock, only 1 left!

0

22

Poulan 532428076

SPRING, BRAKE

$

$

Not available

23

Poulan 532431374

SPRING, BYPASS

$7.99

$

In Stock, Qty 10

0

24

Poulan 532427995

BRACE CARRIER BOX

$9.99

$

Usually ships in 3-10 days

0

25

Poulan 532428303

(Superseded to 583447301)

$13.99

$

Usually ships in 3-10 days

0

26

Poulan 532429816

ARM. CLUTCH.LRV

$6.49

$

Usually ships in 3-10 days

0

27

Poulan 532429053

WELDMENT SHIFT LEVER

$21.99

$

Usually ships in 3-10 days

0

28

Poulan 532428302

RP SUPPORT, SHIFT LEVER
(Superseded to 532439816)

$66.99

$

Usually ships in 3-10 days

0

29

Poulan 532174840

WASHER NYLON

$

$

Not available

30

Poulan 532444304

HUB.SHIFT

$8.99

$

Usually ships in 3-10 days

0

31

Poulan 532429055

SPACER.NYLON.

$4.99

$

Usually ships in 3-10 days

0

32

Poulan 532428464

MNTG BRKT. SHIFT ARM

$4.99

$

Usually ships in 3-10 days

0

33

Poulan 532428461

BRACKET, SHIFTER FLEX

$15.99

$

Usually ships in 3-10 days

0

34

Poulan 532428462

TUBE SHIFT ARM

$15.99

$

Usually ships in 3-10 days

0

35

Poulan 532411555

GRIP.HANDLE.LIFT.PVC.BLACK

$9.49

$

In Stock, only 2 left!

0

36

Poulan 872110406

(Superseded to 582735501)

$7.99

$

Usually ships in 3-10 days

0

37

Poulan 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

38

Poulan 532165492

BOLT.SHOULDER.5/16-18X

$10.99

$

In Stock, only 3 left!

0

39

Poulan 874780412

(Superseded to 874780416)

$6.49

$

Usually ships in 3-10 days

0

40

Poulan 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

41

Poulan 819091210

WASHER LT
(Superseded to 734115441)

$4.99

$

Usually ships in 3-10 days

0

42

Poulan 532166002

WASHER.SRRTD.5/16

$6.49

$

Usually ships in 3-10 days

0

43

Poulan 873680400

NUT.CROWNLOCK.1/4
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

45

Poulan 817490436

SCREW.HXWH.THDRL.1/4-20X2.25

$

$

Not available

46

Poulan 819091016

WASHER
(Superseded to 596582301)

$3.99

$

In Stock, Qty 7

0

47

Poulan 817490420

SCREW.HXWH.THDRL.1/4-20X1-1/4
(Superseded to 583608401)

$1.99

$

Usually ships in 3-10 days

0

48

Poulan 532430249

PLATE.ANTI-ROTATION.BRAKE

$4.99

$

Usually ships in 3-10 days

0

49

Poulan 532430245

SPRING, BRAKE RETURN

$4.99

$

Usually ships in 3-10 days

0

50

Poulan 532428021

ARM.BRAKE

$7.49

$

In Stock, only 1 left!

0

51

Poulan 532430247

SPACER.RETURN.BRAKE.LRV

$4.99

$

Usually ships in 3-10 days

0

52

Poulan 532428078

CALIPER.BRAKE.ASM

$

$

Not available

53

Poulan 877010810

PIN.DOWEL

$4.99

$

Usually ships in 3-10 days

0

54

Poulan 532428019

PLATE, BRAKE PAD

$4.99

$

Usually ships in 3-10 days

0

55

Poulan 532428017

PUCK BRAKE

$4.99

$

In Stock, only 2 left!

0

56

Poulan 532435253

ROTOR.BRAKE

$

$

Not available

57

Poulan 532428016

CAP, BRAKE CALIPER

$6.49

$

Usually ships in 3-10 days

0

58

Poulan 532124788

(Superseded to 532004497)

Note: 4497H

$9.99

$

In Stock, Qty 12

0

59

Poulan 817490508

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

60

Poulan 532440855

CABLE.BRAKE.

$80.99

$

In Stock, only 1 left!

0

61

Poulan 532427945

SHAFT.ASM.PEDAL.LRV

$10.99

$

Usually ships in 3-10 days

0

62

Poulan 532429678

ROD.BRAKE.PARK.LRV

$8.99

$

Usually ships in 3-10 days

0

63

Poulan 877100812

PIN.CLEVIS

$6.49

$

In Stock, only 1 left!

0

64

Poulan 532421076

PIN.COTTER.5/64X3/4

$4.99

$

Usually ships in 3-10 days

0

65

Poulan 532429325

BRACKET.SUPPORT.BRAKE.LRV

$8.99

$

In Stock, only 1 left!

0

66

Poulan 532429694

COVER.PEDAL.BRAKE.PARKING.LRV

$6.49

$

Usually ships in 3-10 days

0

67

Poulan 532429693

COVER.PEDAL.BRAKE.LRV

$8.99

$

In Stock, only 1 left!

0

68

Poulan 817060516

SCREW 5/16-18X1

$6.49

$

Usually ships in 3-10 days

0

69

Poulan 532428070

BRAKE.MOUNT.CABLE.LRV

$4.99

$

In Stock, only 1 left!

0

70

Poulan 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

71

Poulan 532436499

CAP.HUB.AXLE.LRVA/B

$7.49

$

Usually ships in 3-10 days

0

72

Poulan 812000002

RETAINING RING LT

$7.49

$

In Stock, only 1 left!

0

73

Poulan 532429519

SPROCKET.11 TOOTH.SPLINED

$

$

Not available

74

Poulan 532437841

TENSION.LRV.CHAIN

$8.99

$

In Stock, only 2 left!

0

75

Poulan 532433495

SPROCKET.IDLER.7TOOTH.LRV

$

$

Not available
