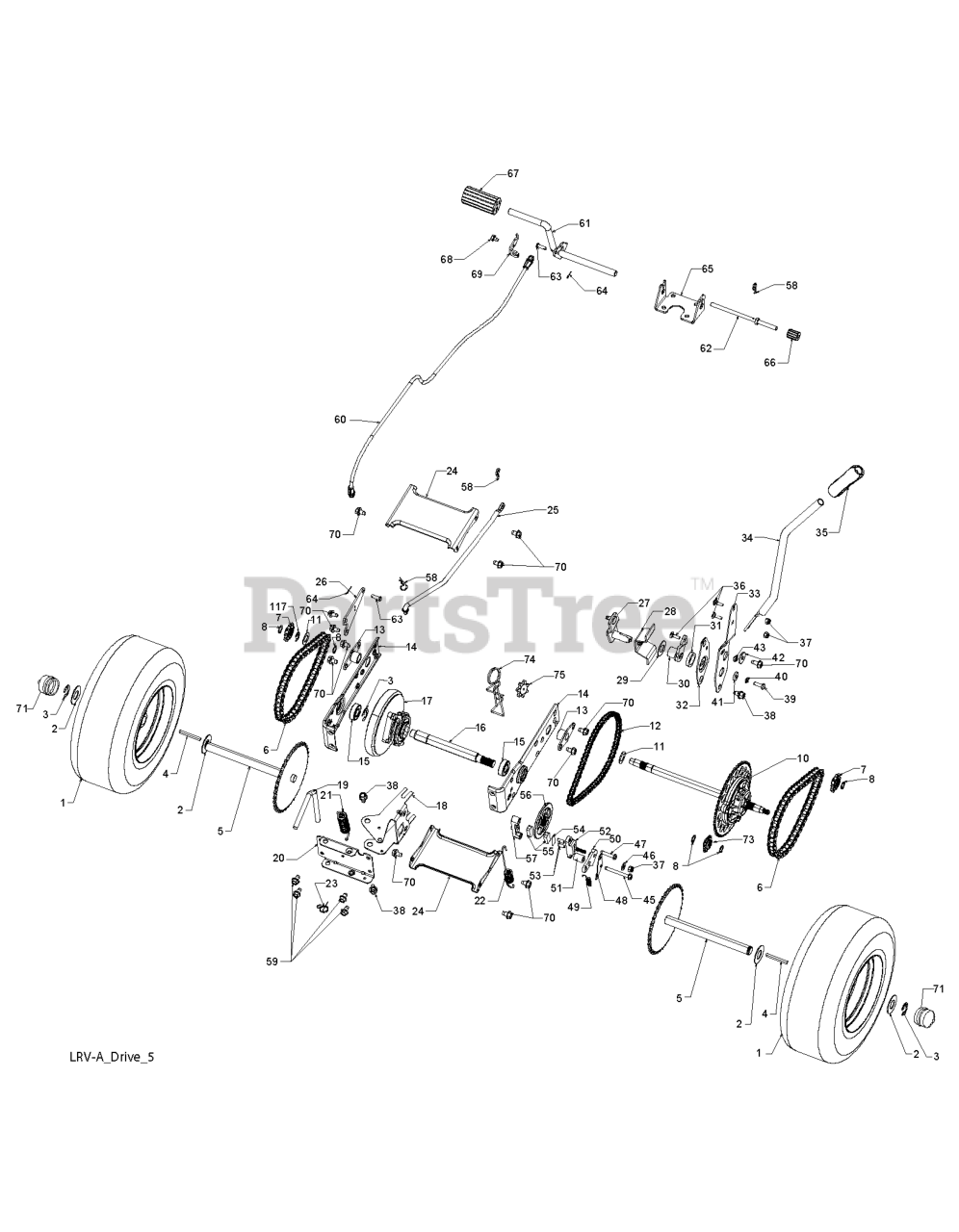

WE 261 (960240001-00) - Weed Eater Lawn Tractor (2010-07) DRIVE Parts Diagram

Lawn Tractor

DRIVE Parts Diagram

  • Title
71

Husqvarna 532436499

CAP.HUB.AXLE.LRVA/B

$7.49

$

Usually ships in 3-10 days

0

7

Husqvarna 532427873

SPROCKET.9.TOOTH.SPLINED

$8.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532427939

WELDMENT.AXLE.DRIVEN

$51.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532165492

BOLT.SHOULDER.5/16-18X

$10.99

$

In Stock, only 3 left!

0

Husqvarna 532436144

TRANSAXLE.KIT.SERVICE

Note: NOT SHOWN

$605.99

$

Usually ships in 3-10 days

0

49

Husqvarna 532430245

SPRING, BRAKE RETURN

$4.99

$

Usually ships in 3-10 days

0

67

Husqvarna 532429693

COVER.PEDAL.BRAKE.LRV

$8.99

$

In Stock, only 1 left!

0

117

$6.49

$

Usually ships in 3-10 days

0

6

Husqvarna 532428069

CHAIN.DRIVE

$

$

Not available

24

Husqvarna 532427995

BRACE CARRIER BOX

$9.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532428302

RP SUPPORT, SHIFT LEVER

$

$

Not available

18

Husqvarna 532424759

ARM, SHIFT

$11.99

$

Usually ships in 3-10 days

0

48

Husqvarna 532430249

PLATE.ANTI-ROTATION.BRAKE

$4.99

$

Usually ships in 3-10 days

0

41

$6.99

$

Usually ships in 3-10 days

0

64

Husqvarna 876020208

COTTER PIN

$

$

Not available

8

$4.99

$

Usually ships in 3-10 days

0

73

Husqvarna 532429519

SPROCKET.11 TOOTH.SPLINED

$

$

Not available

15

Husqvarna 532124793

BEARING.BALL

Note: 9159R

$15.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532428876

DIFFERENTIAL ASM LRV

$

$

Not available

47

Husqvarna 817490420

SCREW.HXWH.THDRL.1/4-20X1-1/4
(Superseded to 583608401)

$1.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532429053

WELDMENT SHIFT LEVER

$21.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532431374

SPRING, BYPASS

$7.99

$

In Stock, Qty 10

0

34

Husqvarna 532428462

TUBE SHIFT ARM

$15.99

$

Usually ships in 3-10 days

0

57

Husqvarna 532428016

CAP, BRAKE CALIPER

$6.49

$

Usually ships in 3-10 days

0

55

Husqvarna 532428017

PUCK BRAKE

$4.99

$

In Stock, only 2 left!

0

58

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

Note: 4497H

$9.99

$

In Stock, Qty 12

0

56

Husqvarna 532435253

ROTOR.BRAKE

$

$

Not available

22

Husqvarna 532428076

SPRING, BRAKE

$

$

Not available

52

Husqvarna 532428078

CALIPER.BRAKE.ASM

$

$

Not available

3

$4.99

$

Usually ships in 3-10 days

0

63

Husqvarna 877100812

PIN.CLEVIS

$6.49

$

In Stock, only 1 left!

0

20

Husqvarna 532427997

BRACE CARRIER REAR

$8.99

$

In Stock, only 1 left!

0

30

Husqvarna 532183900

RB HUB.SHIFT
(Superseded to 532444304)

$8.99

$

Usually ships in 3-10 days

0

59

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532428070

BRAKE.MOUNT.CABLE.LRV

$4.99

$

In Stock, only 1 left!

0

54

Husqvarna 532428019

PLATE, BRAKE PAD

$4.99

$

Usually ships in 3-10 days

0

36

Husqvarna 872110406

BOLT
(Superseded to 582735501)

$7.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532428106

WHEEL, FRICTION A5M
(Superseded to 532436144)

$605.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532429816

ARM. CLUTCH.LRV

$6.49

$

Usually ships in 3-10 days

0

74

Husqvarna 532437841

TENSION.LRV.CHAIN

$8.99

$

In Stock, only 2 left!

0

50

$7.49

$

In Stock, only 1 left!

0

70

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

40

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

60

Husqvarna 532440855

CABLE.BRAKE.

$80.99

$

In Stock, only 1 left!

0

14

Husqvarna 532438568

BRACKET.CARRIER

$10.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532166002

WASHER.SRRTD.5/16

$6.49

$

Usually ships in 3-10 days

0

13

Husqvarna 532430845

BUSHING.FLANGE.5/8

$

$

Not available

37

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

51

Husqvarna 532430247

SPACER.RETURN.BRAKE.LRV

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532430870

ROD.BYPASS.LRV

$15.99

$

Usually ships in 3-10 days

0

75

Husqvarna 532433495

SPROCKET.IDLER.7TOOTH.LRV

$

$

Not available

62

Husqvarna 532429678

ROD.BRAKE.PARK.LRV

$8.99

$

Usually ships in 3-10 days

0

$4.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532428464

MNTG BRKT. SHIFT ARM

$4.99

$

Usually ships in 3-10 days

0

$4.99

$

In Stock, Qty 20+

0

43

Husqvarna 873680400

NUT.CROWNLOCK.1/4
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

33

Husqvarna 532428461

BRACKET, SHIFTER FLEX

$15.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532436498

RB WHEEL.ASM.REAR.LRV.13"MS613
(Superseded to 581420701)

Note: REAR

$

$

Not available

35

Husqvarna 532196492

GRIP.LEVER.5625.ID
(Superseded to 532411555)

$9.49

$

In Stock, only 2 left!

0

12

Husqvarna 532430645

CHAIN, PRIMARY DRIVE

$24.99

$

In Stock, only 4 left!

0

16

Husqvarna 532427926

SHAFT.INPUT.LRV

$40.99

$

Usually ships in 3-10 days

0

68

Husqvarna 817490406

RP_SCREW.1/4-20X3/8
(Superseded to 817600406)

$6.49

$

Usually ships in 3-10 days

0

31

Husqvarna 532429055

SPACER.NYLON.

$4.99

$

Usually ships in 3-10 days

0

61

Husqvarna 532427945

SHAFT.ASM.PEDAL.LRV

$10.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532428077

SPRING, CARRIER

$7.49

$

In Stock, only 1 left!

0

39

Husqvarna 874780412

BOLT
(Superseded to 874780414)

$6.49

$

Usually ships in 3-10 days

0

53

$4.99

$

Usually ships in 3-10 days

0

66

Husqvarna 532429694

COVER.PEDAL.BRAKE.PARKING.LRV

$6.49

$

Usually ships in 3-10 days

0

4

Husqvarna 532123583

SQUARE KEY

$4.99

$

In Stock, Qty 7

0

29

Husqvarna 532174840

WASHER NYLON

$

$

Not available

45

Husqvarna 817490436

SCREW.HXWH.THDRL.1/4-20X2.25

$

$

Not available

11

Husqvarna 532001370

THRUST WASHER

Note: 1370H

$6.49

$

In Stock, only 2 left!

0

65

Husqvarna 532429325

BRACKET.SUPPORT.BRAKE.LRV

$8.99

$

In Stock, only 1 left!

0

25

Husqvarna 532428303

LINK
(Superseded to 583447301)

$13.99

$

Usually ships in 3-10 days

0
