WE 261 (960240001-00) - Weed Eater Lawn Tractor (2010-06) Mower Deck Parts Diagram

Lawn Tractor

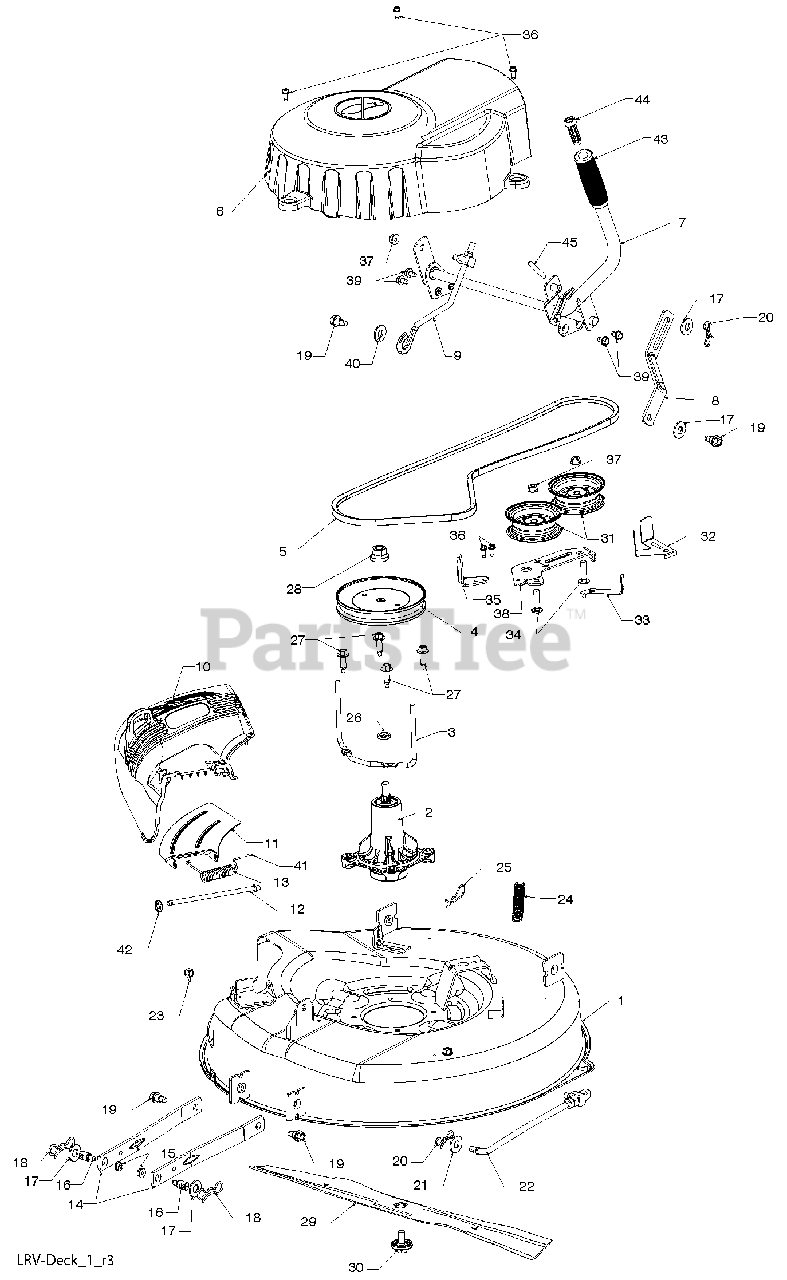

Mower Deck Parts Diagram

  • Title

1

Electrolux/AYP 532428193

DECK, 26"
(Superseded to 584344001)

$218.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 532192870

MANDREL ASM
(Superseded to 587819701)

$56.99

$

In Stock, Qty 20+

0

3

Electrolux/AYP 532432520

KEEPER, BELT
(Superseded to 589676103)

$7.99

$

In Stock, Qty 12

0

4

Electrolux/AYP 532432594

PULLEY, MANDREL

$15.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 532428578

BELT

$48.99

$

In Stock, only 1 left!

0

6

Electrolux/AYP 532428242

COVER, MANDREL

$34.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 532429395

LIFT ASM, DECK

$78.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 532429195

LINK, DECK LIFT

$

$

Not available

9

Electrolux/AYP 532429397

LINK, ADJUSTABLE

$

$

Not available

10

Electrolux/AYP 532428146

DEFLECTOR

$39.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 532428968

SUPPORT, DEFLECTOR

$10.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 532131491

ROD, HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

13

Electrolux/AYP 532197026

SPRING, TORSION

$10.99

$

In Stock, Qty 20+

0

14

Electrolux/AYP 532418863

ARM, MOWER SUPPORT

$20.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 873900500

NUT, LOCK
(Superseded to 596135701)

$3.99

$

In Stock, only 2 left!

0

16

Electrolux/AYP 532195161

STUD

$

$

Not available

17

Electrolux/AYP 819191912

WASHER

$6.49

$

In Stock, Qty 20+

0

18

Electrolux/AYP 532194209

PIN

$3.99

$

In Stock, only 1 left!

0

19

Electrolux/AYP 532196539

BOLT, SHOULDER

$7.49

$

In Stock, Qty 20+

0

20

Electrolux/AYP 532194208

PIN

$3.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 819171912

WASHER, 17/32 X 1 3/16

$7.49

$

In Stock, only 1 left!

0

22

Electrolux/AYP 532429350

LINK, DECK

$27.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 873930600

NUT, LCK 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 532429531

SPRING, DECK

$4.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 532124788

PIN
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

26

Electrolux/AYP 532187690

SPACER, MANDREL

$4.99

$

In Stock, Qty 20+

0

27

Electrolux/AYP 532173984

BOLT, MANDREL
(Superseded to 584953901)

$4.99

$

In Stock, Qty 14

0

28

Electrolux/AYP 532400234

NUT, LOCK
(Superseded to 596134801)

$4.99

$

In Stock, Qty 13

0

29

Electrolux/AYP 532428500

BLADE

$27.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 532193003

BOLT, BLADE

$8.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 532193197

PULLEY, IDLER
(Superseded to 532177968)

$31.99

$

In Stock, Qty 10

0

32

Electrolux/AYP 532141043

GUARD, IDLER

$

$

Not available

33

Electrolux/AYP 532193414

KEEPER, BELT IDLER

$6.49

$

In Stock, only 1 left!

0

34

Electrolux/AYP 872110612

BOLT, 3/8-16 X 1 1/2

$6.49

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 532199470

ARM, BRAKE
(Superseded to 532400130)

$18.99

$

In Stock, only 2 left!

0

36

Electrolux/AYP 532137729

SCREW, 1/4-20 X 5/8

$4.99

$

In Stock, Qty 20+

0

37

Electrolux/AYP 873900600

NUT, 3/8-16 FLANGE
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

38

Electrolux/AYP 532428435

ARM, IDLER

$8.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 817490508

BOLT, 5/16-18 X 1/2

$6.49

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 819171616

WASHER, 16 GA.
(Superseded to 596040101)

$3.99

$

In Stock, Qty 20+

0

41

Electrolux/AYP 532105304

CAP, SLEEVE

$4.99

$

In Stock, Qty 20+

0

42

Electrolux/AYP 532110452

NUT, PUSH

$3.99

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 532125631

GRIP, HANDLE

$7.99

$

In Stock, only 1 left!

0

44

Electrolux/AYP 532429401

PLUNGER

$

$

Not available

45

Electrolux/AYP 532105767

PIN

$6.49

$

In Stock, only 3 left!

0
