WE 261 (960240001-00) - Weed Eater Lawn Tractor (2010-06) Electrical Parts Diagram

Lawn Tractor

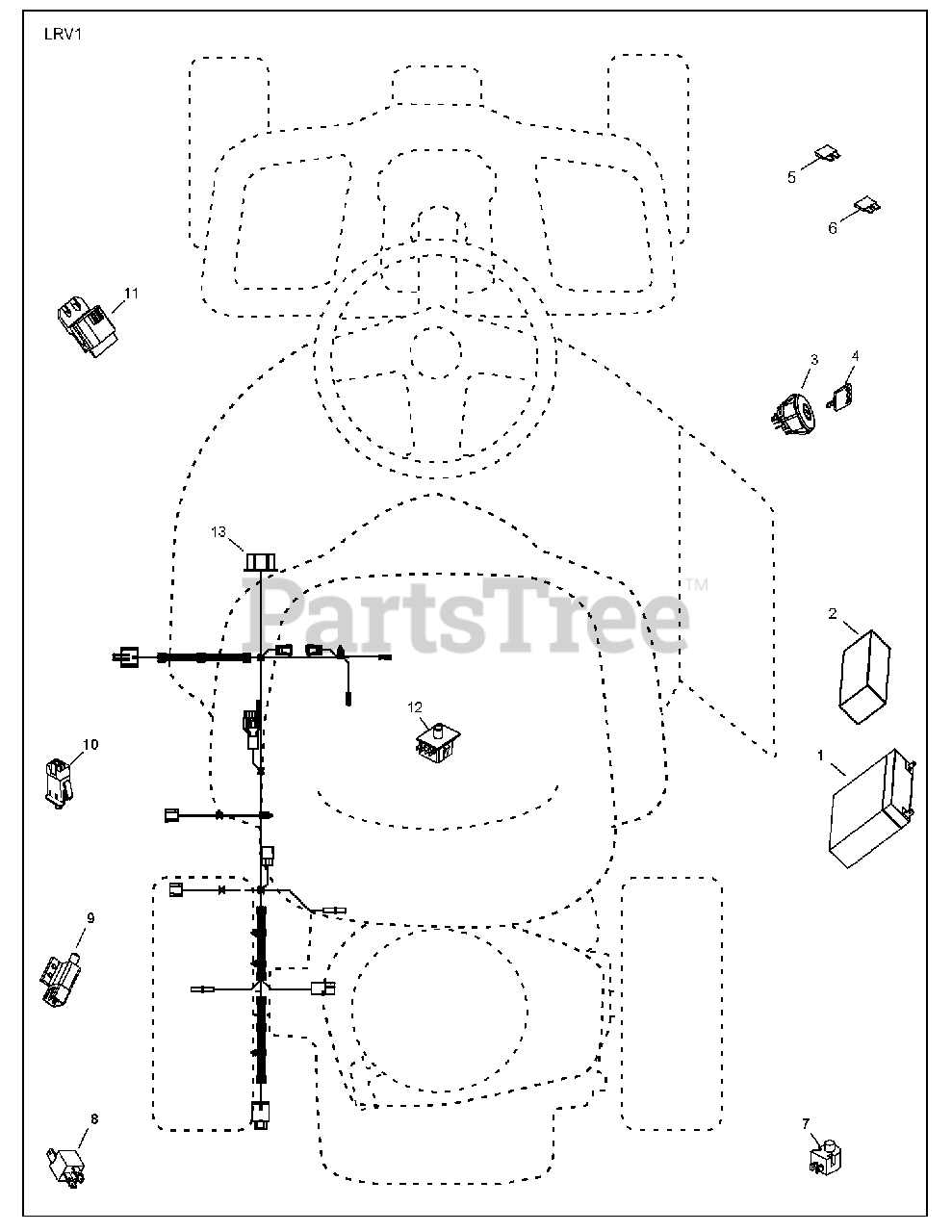

Electrical Parts Diagram

  • Title

1

Electrolux/AYP 532423264

BATTERY, 12V, 8AH
(Superseded to 583629801)

$120.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 532425416

FOAM, POLYURETHANE

$36.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 532193350

SWITCH, IGN, DLTA, P-IN, ROS

$22.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 532411933

KEY, MOLDED ENGLISH/SPANISH

$9.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 532411935

KEY, MOLDED ENGLISH/FRENCH/INTERNATIONAL

$10.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 532433330

FUSE, 5A
(Superseded to 583489001)

$9.49

$

In Stock, only 1 left!

0

6

Electrolux/AYP 532425937

FUSE, 40A

$6.49

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 532160784

SWITCH, PLUNGER, NO, OLIVE

$20.99

$

In Stock, only 1 left!

0

8

Electrolux/AYP 532431542

RELAY, 40A

$15.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 532109553

SWITCH, INTLK,CL, MWR, GRY
(Superseded to 539101080)

$17.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 532176138

SWITCH, INTERLOCK, NONC,GRAY

$22.99

$

In Stock, Qty 9

0

11

Electrolux/AYP 532431846

MODULE, STARTING, RECOIL, LRV

$

$

Not available

12

Electrolux/AYP 532192749

SWITCH, SEAT, DP, ROS

$21.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 532428477

HARNESS, IGN, ELECTSTART, LRV

$103.99

$

Usually ships in 3-10 days

0
