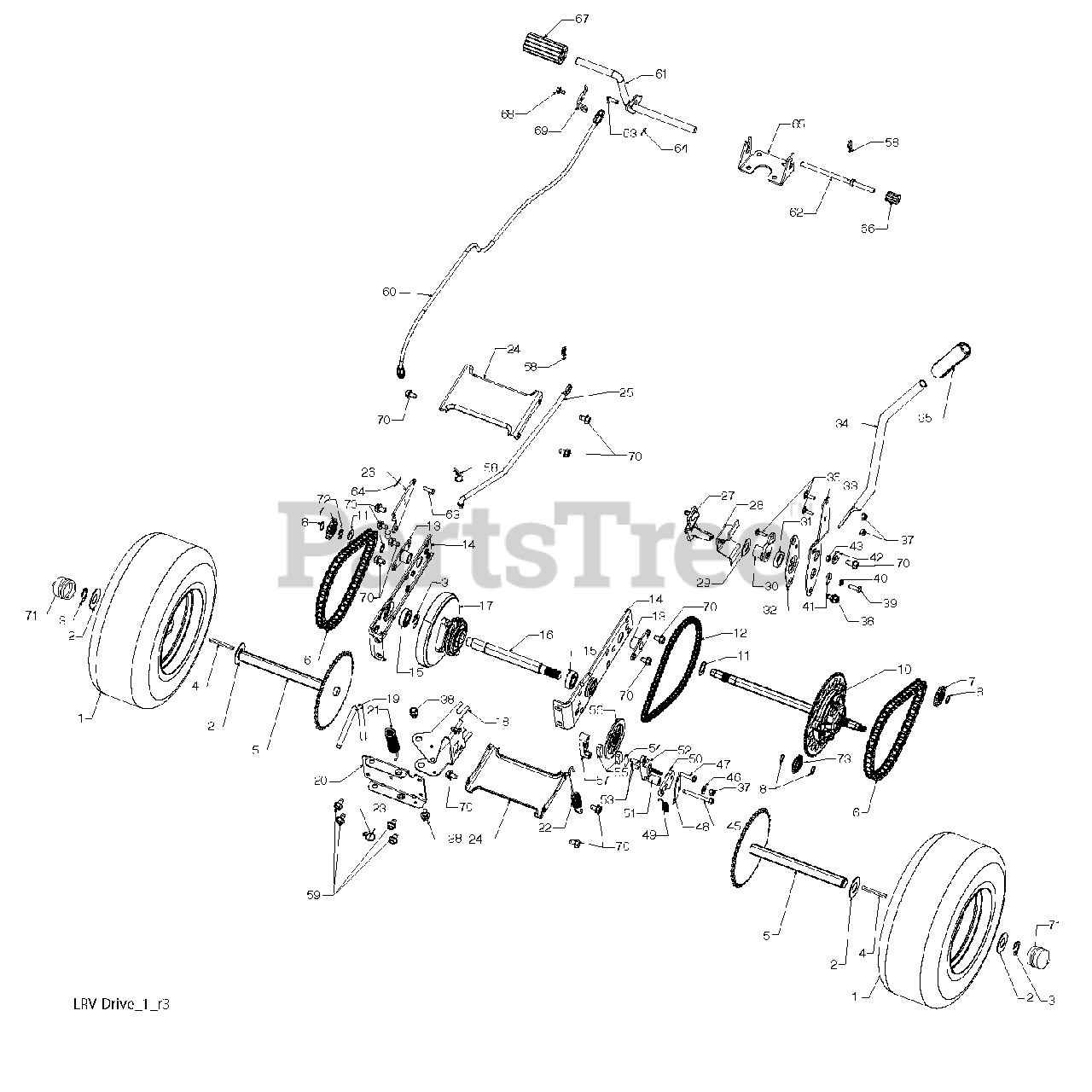

WE 261 (960240001-00) - Weed Eater Lawn Tractor (2010-06) Drive Parts Diagram

Lawn Tractor

Drive Parts Diagram

  • Title

Electrolux/AYP 532436144

SERVICE, TRANSAXLE

$605.99

$

Usually ships in 3-10 days

0

1

Electrolux/AYP 532436498

WHEEL ASM (REAR)
(Superseded to 581420701)

$

$

Not available

2

Electrolux/AYP 532121748

WASHER, 16 GA.

$4.99

$

In Stock, Qty 20+

0

3

Electrolux/AYP 812000001

E-CLIP

$4.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 532123583

KEY. SQUARE

$4.99

$

In Stock, Qty 7

0

5

Electrolux/AYP 532427939

WELDMENT. DRIVE AXLE

$51.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 532428069

CHAIN DRIVE

$

$

Not available

7

Electrolux/AYP 532427873

SPROCKET. 9 TOOTH SPLINED

$8.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 812100009

RING, SNAP

$4.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 532428876

DIFFERENTIAL ASM
(Superseded to 532436144)

$605.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 532001370

WASHER, THRUST

$6.49

$

In Stock, only 2 left!

0

12

Electrolux/AYP 532430645

CHAIN, PRIMARY DRIVE

$24.99

$

In Stock, only 4 left!

0

13

Electrolux/AYP 532430845

BUSHING

$

$

Not available

14

Electrolux/AYP 532427946

BRACKET, CARRIER
(Superseded to 532438568)

$10.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 532124793

BEARING ASM

$15.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 532427926

SHAFT INPUT

$40.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 532428106

WHEEL, FRICTION A5M
(Superseded to 532436144)

$605.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 532424759

ARM, SHIFT

$11.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 532430870

ROD, BYPASS

$15.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 532427997

BRACE CARRIER REAR

$8.99

$

In Stock, only 1 left!

0

21

Electrolux/AYP 532428077

SPRING, CARRIER

$7.49

$

In Stock, only 1 left!

0

22

Electrolux/AYP 532428076

SPRING, BRAKE

$

$

Not available

23

Electrolux/AYP 532431374

SPRING, BYPASS

$7.99

$

In Stock, Qty 10

0

24

Electrolux/AYP 532427995

BRACE CARRIER BOX

$9.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 532428303

LINK, SHIFT
(Superseded to 583447301)

$13.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 532429816

ARM. CLUTCH

$6.49

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 532429053

WELDMENT SHIFT LEVER

$21.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 532428302

SUPPORT, SHIFT LEVER
(Superseded to 532439816)

$66.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 532174840

WASHER, NYLON

$

$

Not available

30

Electrolux/AYP 532183900

HUB SHIFT LEVER
(Superseded to 532444304)

$8.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 532429055

SPACER, NYLON

$4.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 532428464

MNTG BRKT. SHIFT ARM

$4.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 532428461

BRACKET, SHIFTER FLEX

$15.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 532428462

TUBE SHIFT ARM

$15.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 532196492

GRIP, HANDLE
(Superseded to 532411555)

$9.49

$

In Stock, only 2 left!

0

36

Electrolux/AYP 872110406

BOLT, CARRIAGE - 114-20 X 3/4
(Superseded to 582735501)

$7.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 873800400

NUT NYLON LOCK 114-20
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 532165492

BOLT, SHOULDER

$10.99

$

In Stock, only 3 left!

0

39

Electrolux/AYP 874780412

BOLT, 1/4-20 X 3/4
(Superseded to 874780416)

$6.49

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 810040400

WASHER, LOCK
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

41

Electrolux/AYP 819091210

WASHER FLAT
(Superseded to 734115441)

$4.99

$

In Stock, only 2 left!

0

42

Electrolux/AYP 532166002

WASHER, SERRATED

$6.49

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 873680400

NUT, CROWN LOCK 114-20
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

45

Electrolux/AYP 817490436

SCREW 1/4-20 X 2 114

$

$

Not available

46

Electrolux/AYP 819091016

WASHER
(Superseded to 596582301)

$3.99

$

In Stock, Qty 7

0

47

Electrolux/AYP 817490420

SCREW, 1/4-20 X 1 1/2
(Superseded to 583608401)

$1.99

$

Usually ships in 3-10 days

0

48

Electrolux/AYP 532430249

PLATE BRAKE ANTI - ROTATE

$4.99

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 532430245

SPRING, BRAKE RETURN

$4.99

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 532428021

ARM, BRAKE

$7.49

$

In Stock, only 1 left!

0

51

Electrolux/AYP 532430247

SPACER RETURN

$4.99

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 532428078

CALIPER, BRAKE ASM

$

$

Not available

53

Electrolux/AYP 877010810

PIN, DOWEL 1/4

$4.99

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 532428019

PLATE, BRAKE PAD

$4.99

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 532428017

PUCK BRAKE

$4.99

$

In Stock, only 2 left!

0

56

Electrolux/AYP 532435253

ROTOR, BRAKE

$

$

Not available

57

Electrolux/AYP 532428016

CAP, BRAKE CALIPER

$6.49

$

Usually ships in 3-10 days

0

58

Electrolux/AYP 532124788

PIN, RETAINER
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

59

Electrolux/AYP 817490508

BOLT, 5/16-16 X 112

$6.49

$

Usually ships in 3-10 days

0

60

Electrolux/AYP 532428460

CABLE, BRAKE
(Superseded to 532440855)

$80.99

$

In Stock, only 1 left!

0

61

Electrolux/AYP 532427945

WELDMENT, PEDAL

$10.99

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 532429678

ROD, PARKING BRAKE

$8.99

$

Usually ships in 3-10 days

0

63

Electrolux/AYP 877100812

PIN, .25 X .75 CLEVIS

$6.49

$

In Stock, only 1 left!

0

64

Electrolux/AYP 876020208

PIN, 1/16 DIA. COTTER

$

$

Not available

65

Electrolux/AYP 532429325

BRACKET, BRAKE SUPPORT

$8.99

$

In Stock, only 1 left!

0

66

Electrolux/AYP 532429694

COVER PEDAL

$6.49

$

Usually ships in 3-10 days

0

67

Electrolux/AYP 532429693

COVER, BRAKE PEDAL

$8.99

$

In Stock, only 1 left!

0

68

Electrolux/AYP 817490406

SCREW, 1/4-20 X 3/8

$4.99

$

Usually ships in 3-10 days

0

69

Electrolux/AYP 532428070

BRAKE CABLE MOUNT

$4.99

$

In Stock, only 1 left!

0

70

Electrolux/AYP 817000512

BOLT, 5/16-18 X 3/4
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

71

Electrolux/AYP 532436499

CAP HUB AXLE

$7.49

$

Usually ships in 3-10 days

0

72

Electrolux/AYP 812000002

E RING #5133-62

$7.49

$

In Stock, only 1 left!

0

73

Electrolux/AYP 532429519

SPROCKET II TOOTH SPLINED

$

$

Not available
