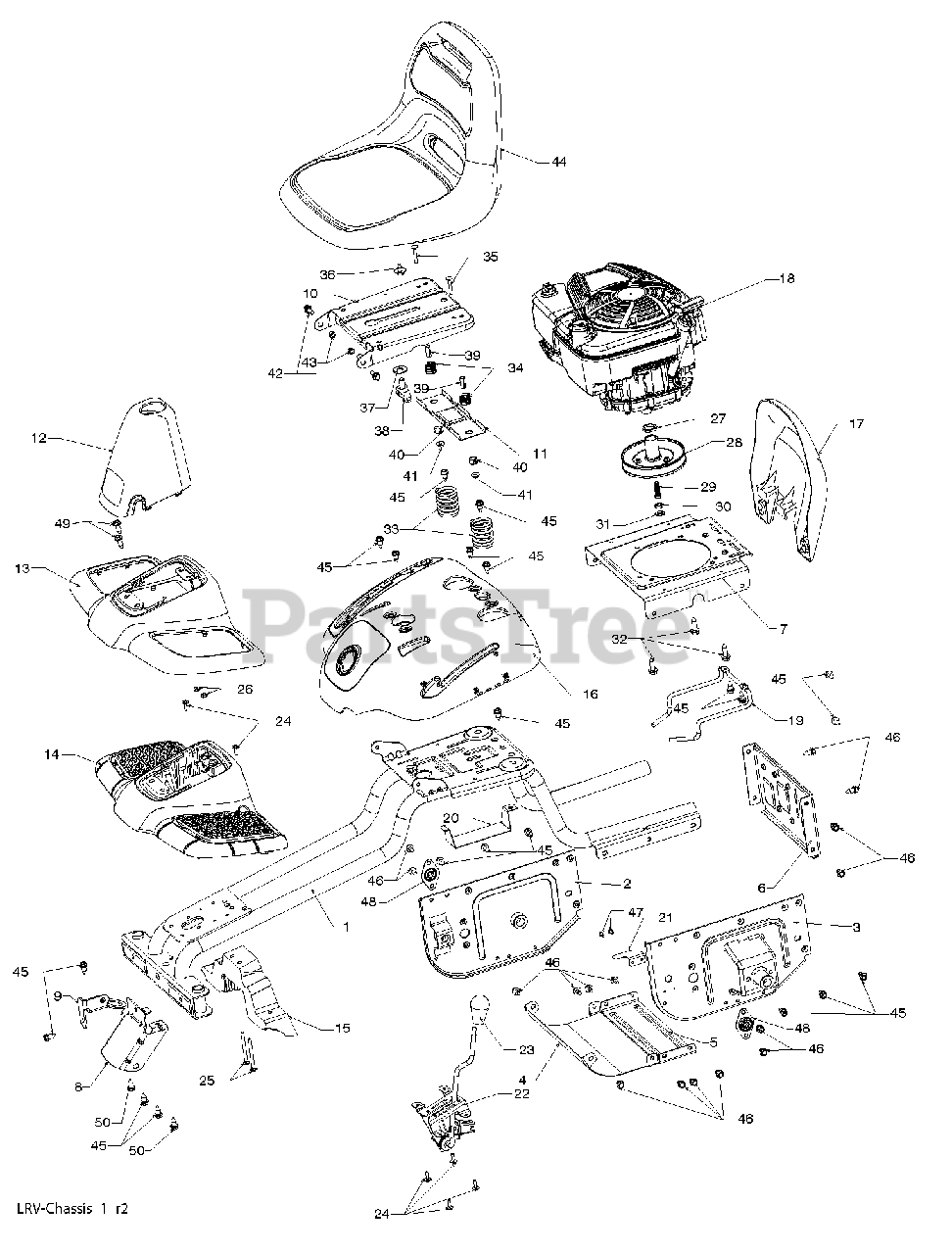

WE 261 (960240001-00) - Weed Eater Lawn Tractor (2010-06) Chassis Parts Diagram

Lawn Tractor

Chassis Parts Diagram

  • Title

1

Electrolux/AYP 532428048

WELDMENT, CHASSIS

$

$

Not available

2

Electrolux/AYP 532428247

SUPPORT, AXEL LH

$66.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 532428244

SUPPORT, AXEL RH
(Superseded to 532439816)

$66.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 532428346

SHIELD, TRANSAXLE FRONT

$

$

Not available

5

Electrolux/AYP 532428110

BRACE, AXLE CROSS

$13.99

$

In Stock, only 1 left!

0

6

Electrolux/AYP 532428109

COVER, FRICTION DRIVE

$24.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 532428040

PLATE, ENGINE

$

$

Not available

8

Electrolux/AYP 532428576

BRACKET, CHASSIS FRONT

$14.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 532428856

BRACKET, STEERING SUPPORT

$7.49

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 532195530

PAN, SEAT

$21.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 532174648

BRACKET, SWITCH MOUNTING

$10.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 532436891

BOOT, DUST
(Superseded to 583513801)

$51.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 532436496

COVER, FOOT REST

$29.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 532428250

STRUCTURE, FOOT REST

$47.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 532428249

SUPPORT, FOOT REST

$23.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 532436497

FENDER, CONTROL

$

$

Not available

17

Electrolux/AYP 532428348

GUARD, ENGINE

$24.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 532428047

ENGINE, (NON-CALIFORNIA) 12S907-1411-B1

$

$

Not available

18

Electrolux/AYP 532432389

ENGINE, (California) 121S07-1415-F1

$

$

Not available

18

Electrolux/AYP 532435674

ENGINE, (CANADA) 12S907-1463-B1

$

$

Not available

19

Electrolux/AYP 532428986

KEEPER, BELT

$9.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 532428046

BRACKET, BATTERY

$6.49

$

In Stock, only 1 left!

0

21

Electrolux/AYP 532429815

LEVER, SWITCH

$4.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 532428826

DECK CLUTCH ASM

$109.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 532149846

KNOB

$13.99

$

In Stock, only 1 left!

0

24

Electrolux/AYP 532416358

SCREW, NO. 10
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

25

Electrolux/AYP 872140424

BOLT, CARRIAGE 1/4-20 X 3

$5.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 873510400

NUT, 1/4-20
(Superseded to 873640400)

$

$

Not available

27

Electrolux/AYP 532430087

SPACER, ENGINE

$4.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 532428301

DISC, FRICTION ASM
(Superseded to 580747201)

$53.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 532430817

BOLT, SCKT HD 3/8-24 X 1 .25

$4.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 532430470

BEARING

$7.49

$

In Stock, only 1 left!

0

31

Electrolux/AYP 532430469

SPACER, NEUTRAL
(Superseded to 532437322)

$4.99

$

In Stock, only 2 left!

0

32

Electrolux/AYP 532150406

BOLT, 3/8-16 X .280

$7.49

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 532124181

SPRING, SEAT
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

34

Electrolux/AYP 532121250

SPRING

$7.49

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 872050412

BOLT, 1/4-20 X 1 1/2

$6.49

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 532127018

BOLT, SHOULDER

$7.49

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 819171912

WASHER, 17/32 X 1 3/16

$7.49

$

In Stock, only 1 left!

0

38

Electrolux/AYP 532166369

KNOB, SEAT

$10.99

$

In Stock, only 1 left!

0

39

Electrolux/AYP 532134300

SPACER

$7.49

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 532121248

BUSHING, NYLON SNAP

$6.49

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 532123976

NUT, LOCK
(Superseded to 586668901)

$4.99

$

In Stock, Qty 18

0

42

Electrolux/AYP 532171852

BOLT, 5/16-18 SHOULDER
(Superseded to 587907801)

$4.99

$

In Stock, Qty 8

0

43

Electrolux/AYP 873800500

NUT, 5/16-18
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

44

Electrolux/AYP 532428243

SEAT
(Superseded to 532440691)

$169.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 817000512

BOLT, 5/16-18 X 3/4
(Superseded to 532428867)

$6.49

$

In Stock, Qty 14

0

46

Electrolux/AYP 817490508

BOLT, 5/16-18 X 1/2

$6.49

$

Usually ships in 3-10 days

0

47

Electrolux/AYP 532086777

SCREW
(Superseded to 532750097)

$4.99

$

In Stock, Qty 16

0

48

Electrolux/AYP 532408981

BEARING, FLANGE, BALL

$9.99

$

In Stock, Qty 10

0

49

Electrolux/AYP 817060516

SCREW, 5/16-18 X1

$6.49

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 532165492

Bolt, Shoulder, 5/16-18 x .561

$10.99

$

In Stock, only 3 left!

0
