WE 261 (960240001-00) - Weed Eater Lawn Tractor (2009-12) Steering Parts Diagram

Lawn Tractor

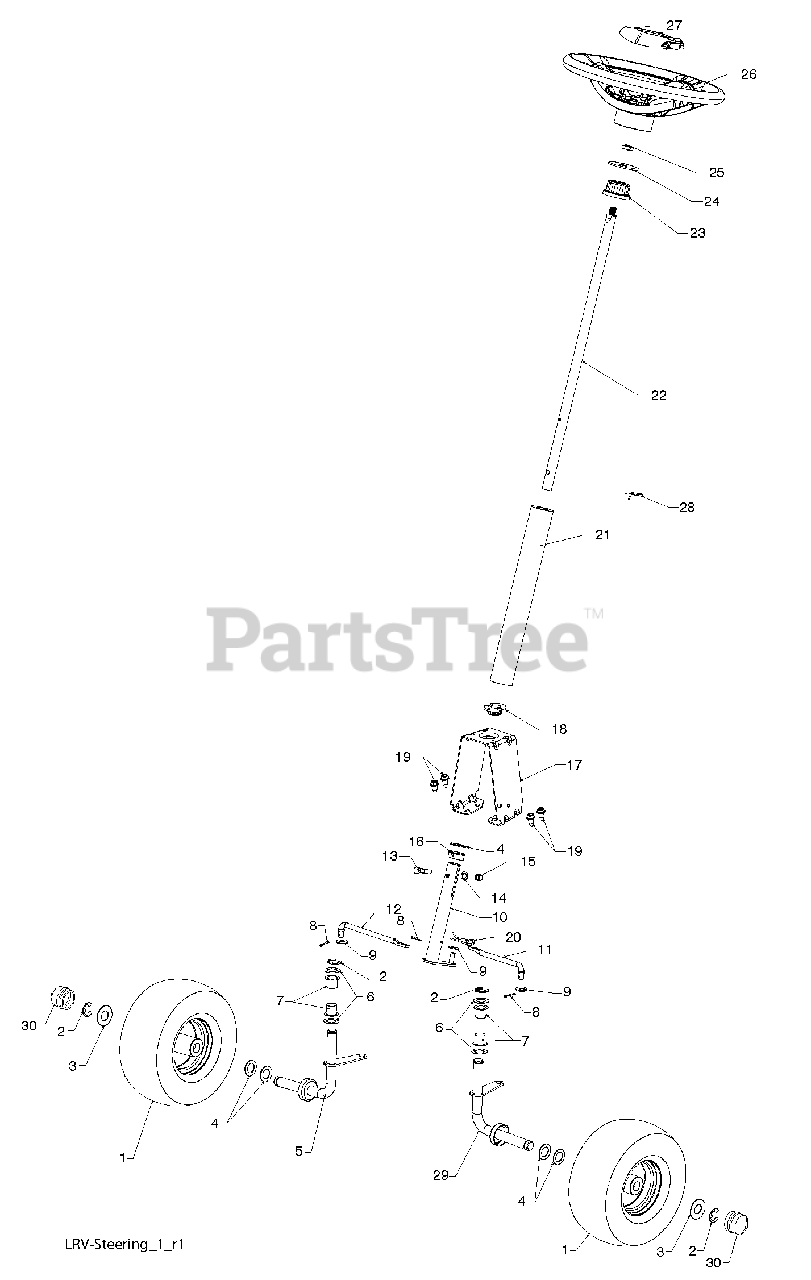

Steering Parts Diagram

  • Title
1

Electrolux/AYP 428269X613

WHEEL ASM (FRONT)
(Superseded to 581420601)

$

$

Not available

2

Electrolux/AYP 12000001

E-CLIP
(Superseded to 812000001)

$4.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 188967

WASHER, HARDENED
(Superseded to 532188967)

$4.99

$

In Stock, Qty 20+

0

4

Electrolux/AYP 121749X

WASHER, 1/4 X 3/4
(Superseded to 532121749)

$3.49

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 428034

SPINDLE, RH
(Superseded to 532435324)

$31.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 6266H W

ASHER, HARDENED THRUST

$

$

Not available

7

Electrolux/AYP 3366R B

USHING, STEERING COLUMN

$

$

Not available

8

Electrolux/AYP 421076

PIN, 5/64 X 3/4 COTTER
(Superseded to 532421076)

$4.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 19131414

WASHER
(Superseded to 819131414)

$6.49

$

In Stock, only 2 left!

0

10

Electrolux/AYP 428057

WELDMENT, LWR STRG SHAFT
(Superseded to 532428057)

$34.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 428035

LINK, STRNG LH
(Superseded to 532428035)

$

$

Not available

12

Electrolux/AYP 428036

LINK, STRNG RH
(Superseded to 532428036)

$

$

Not available

13

Electrolux/AYP 74780524

BOLT, 5/16-18 X 1 1/2
(Superseded to 596582201)

$3.99

$

In Stock, Qty 12

0

14

Electrolux/AYP 19131016

WASHER
(Superseded to 819131016)

$6.49

$

In Stock, Qty 5

0

15

Electrolux/AYP 73800500

NUT, 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

16

Electrolux/AYP 428044

BUSHING, STEERING SNAP
(Superseded to 532428044)

$4.99

$

In Stock, only 1 left!

0

17

Electrolux/AYP 428252

SUPPORT, UPPER STEERING
(Superseded to 532428252)

$14.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 195227

BUSHING, UPPER STEERING
(Superseded to 532195227)

$6.99

$

In Stock, Qty 15

0

19

Electrolux/AYP 17000512

BOLT, 5/16-18 X 3/4
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

20

Electrolux/AYP 428045

CLIP, RETAINER SPRING
(Superseded to 532428045)

$

$

Not available

21

Electrolux/AYP 428347

COVER, STEERING COLUMN

$5.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 428213

SHAFT, STEERING
(Superseded to 532428213)

$

$

Not available

23

Electrolux/AYP 186737

ADAPTER, STEERING WHEEL
(Superseded to 587738905)

$9.49

$

In Stock, Qty 8

0

24

Electrolux/AYP 19183812

WASHER, 9/16 X 2 3/8 12 GA.
(Superseded to 819183812)

$9.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 73940800

NUT, JAM LOCK 1/2-20
(Superseded to 873940800)

$7.49

$

In Stock, only 4 left!

0

26

Electrolux/AYP 414851X418

WHEEL, STEERING

$45.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 414852X418

CAP, STEERING WHEEL
(Superseded to 532436502)

$341.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 199849

CLIP, RETAINER SPRING
(Superseded to 532199849)

$6.49

$

In Stock, Qty 8

0

29

Electrolux/AYP 428033

SPINDLE, LH
(Superseded to 532435323)

$27.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 104757X613

CAP, HUB, AXLE
(Superseded to 532436499)

$7.49

$

Usually ships in 3-10 days

0
