WE 261 (960240001-00) - Weed Eater Lawn Tractor (2009-12) Mower Deck Parts Diagram

Lawn Tractor

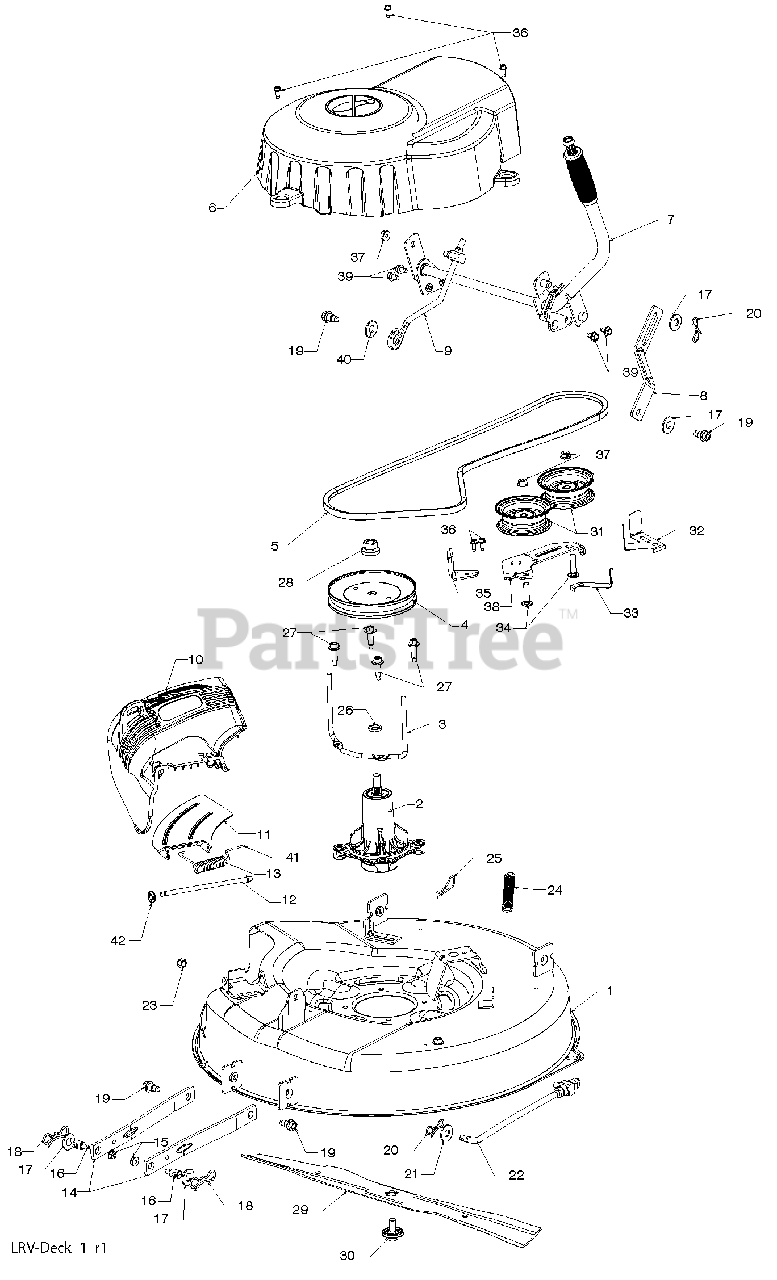

Mower Deck Parts Diagram

  • Title
1

Electrolux/AYP 428193

DECK, 26"
(Superseded to 584344001)

$218.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 192870

MANDREL ASM
(Superseded to 587819701)

$56.99

$

In Stock, Qty 17

0

3

Electrolux/AYP 432520

KEEPER, BELT

$

$

Not available

4

Electrolux/AYP 432594

PULLEY, MANDREL
(Superseded to 532432594)

$15.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 428578

BELT
(Superseded to 532428578)

$48.99

$

In Stock, only 1 left!

0

6

Electrolux/AYP 428242

COVER, MANDREL
(Superseded to 532428242)

$34.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 429395

LIFT ASM, DECK
(Superseded to 532429395)

$78.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 429195

LINK, DECK LIFT
(Superseded to 532429195)

$

$

Not available

9

Electrolux/AYP 429397

LINK, ADJUSTABLE
(Superseded to 532429397)

$

$

Not available

10

Electrolux/AYP 428146

DEFLECTOR
(Superseded to 532428146)

$39.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 428968

SUPPORT, DEFLECTOR
(Superseded to 532428968)

$10.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 131491

ROD, HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

13

Electrolux/AYP 197026

SPRING, TORSION
(Superseded to 532197026)

$10.99

$

In Stock, Qty 20+

0

14

Electrolux/AYP 418863

ARM, MOWER SUPPORT

$3.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 73900500

NUT, LOCK
(Superseded to 596135701)

$3.99

$

In Stock, only 2 left!

0

16

Electrolux/AYP 195161

STUD
(Superseded to 532195161)

$

$

Not available

17

Electrolux/AYP 19191912

WASHER
(Superseded to 819191912)

$6.49

$

In Stock, Qty 20+

0

18

Electrolux/AYP 194209

PIN
(Superseded to 532194209)

$3.99

$

In Stock, only 1 left!

0

19

Electrolux/AYP 196539

BOLT, SHOULDER
(Superseded to 532196539)

$7.49

$

In Stock, Qty 20+

0

20

Electrolux/AYP 194208

PIN
(Superseded to 532194208)

$3.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 19171912

WASHER, 17/32 X 1 3/16
(Superseded to 819171912)

$7.49

$

In Stock, only 1 left!

0

22

Electrolux/AYP 429350

LINK, DECK
(Superseded to 532429350)

$27.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 73930600

NUT, LCK 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 429531

SPRING, DECK
(Superseded to 532429531)

$4.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 4497H

PIN
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

26

Electrolux/AYP 187690

SPACER, MANDREL
(Superseded to 532187690)

$4.99

$

In Stock, Qty 20+

0

27

Electrolux/AYP 173984

BOLT, MANDREL
(Superseded to 584953901)

$4.99

$

In Stock, Qty 16

0

28

Electrolux/AYP 400234

NUT, LOCK
(Superseded to 596134801)

$4.99

$

In Stock, Qty 12

0

29

Electrolux/AYP 428500

BLADE
(Superseded to 532428500)

$27.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 193003

BOLT, BLADE
(Superseded to 532193003)

$8.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 193197

PULLEY, IDLER
(Superseded to 532177968)

$31.99

$

In Stock, Qty 9

0

32

Electrolux/AYP 141043

GUARD, IDLER
(Superseded to 532141043)

$

$

Not available

33

Electrolux/AYP 193414

KEEPER, BELT IDLER
(Superseded to 532193414)

$6.49

$

In Stock, only 1 left!

0

34

Electrolux/AYP 72110612

BOLT, 3/8-16 X 1 1/2
(Superseded to 872110612)

$6.49

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 199470

ARM, BRAKE
(Superseded to 532400130)

$18.99

$

In Stock, only 2 left!

0

36

Electrolux/AYP 137729

SCREW, 1/4-20 X 5/8
(Superseded to 532137729)

$4.99

$

In Stock, Qty 20+

0

37

Murray 73900600

NUT, 3/8-16 FLANGE

$

$

Not available

38

Electrolux/AYP 428435

ARM, IDLER
(Superseded to 532428435)

$8.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 17490508

BOLT, 5/16-18 X 1/2
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 19171616

WASHER, 16 GA.

$2.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 105304X

CAP, SLEEVE
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

42

Electrolux/AYP 110452X

NUT, PUSH
(Superseded to 532110452)

$3.99

$

Usually ships in 3-10 days

0
