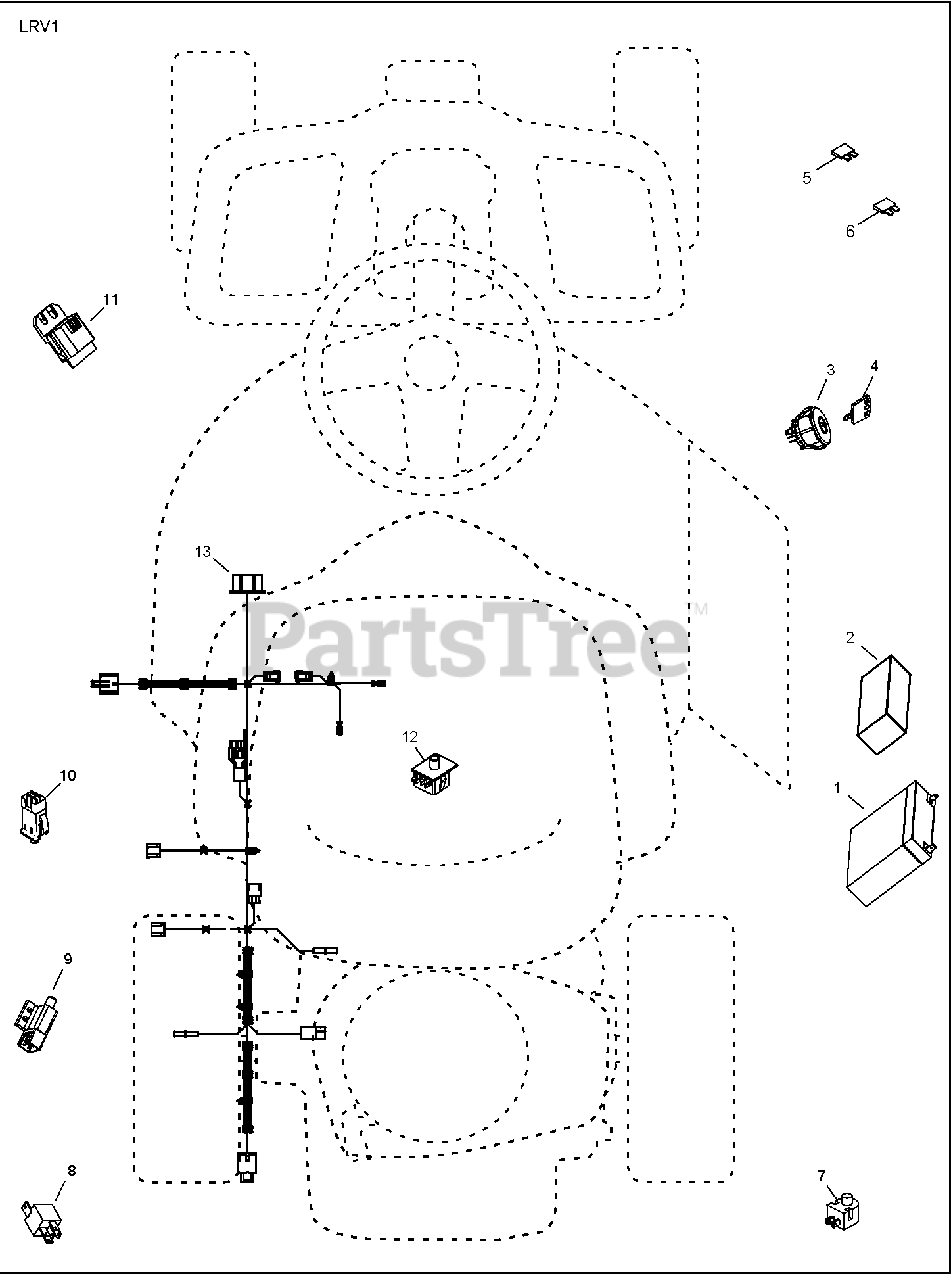

WE 261 (960240001-00) - Weed Eater Lawn Tractor (2009-12) Electrical Parts Diagram

Lawn Tractor

Electrical Parts Diagram

  • Title

1

Electrolux/AYP 423264

BATTERY, 12V, 8AH
(Superseded to 583629801)

$120.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 425416

FOAM, POLYURETHANE
(Superseded to 532425416)

$36.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 193350

SWITCH, IGN, DLTA, P-IN, ROS
(Superseded to 532193350)

$22.99

$

In Stock, only 1 left!

0

4

Electrolux/AYP 411934

KEY, MOLDED

$5.49

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 433330

FUSE, 5A
(Superseded to 583489001)

$9.49

$

In Stock, only 1 left!

0

6

Electrolux/AYP 425937

FUSE, 40A
(Superseded to 532425937)

$6.49

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 160784

SWITCH, PLUNGER, NO, OLIVE
(Superseded to 532160784)

$20.99

$

In Stock, only 1 left!

0

8

Electrolux/AYP 431542

RELAY, 40A
(Superseded to 532431542)

$15.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 109553X

SWITCH, INTLK,CL, MWR, GRY
(Superseded to 539101080)

$17.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 176138

SWITCH, INTERLOCK, NONC,GRAY
(Superseded to 532176138)

$22.99

$

In Stock, Qty 7

0

11

Electrolux/AYP 431846

MODULE, STARTING, RECOIL, LRV
(Superseded to 532431846)

$

$

Not available

12

Electrolux/AYP 192749

SWITCH, SEAT, DP, ROS
(Superseded to 532192749)

$21.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 428477

HARNESS, IGN, ELECTSTART, LRV
(Superseded to 532428477)

$103.99

$

Usually ships in 3-10 days

0
