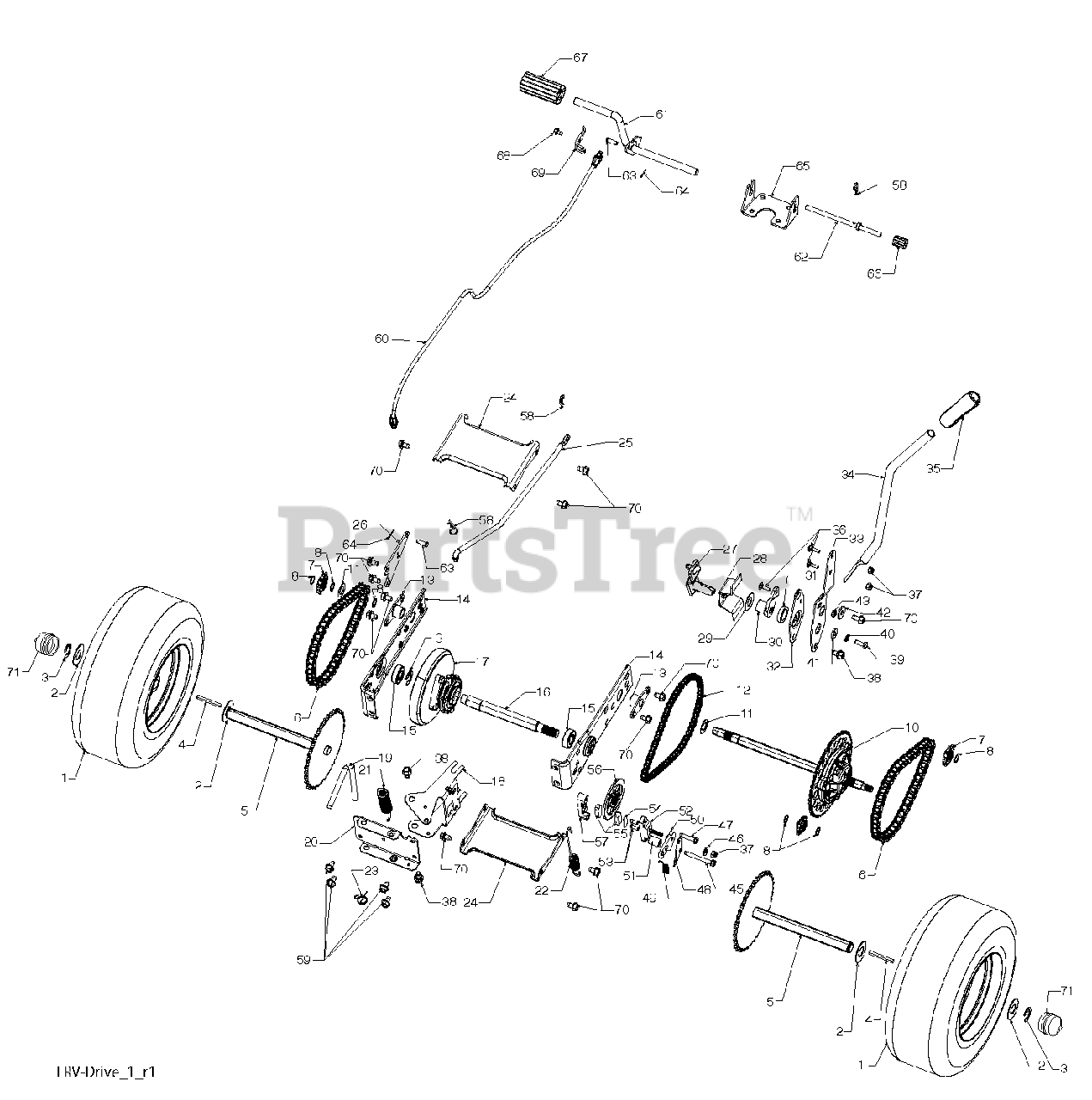

WE 261 (960240001-00) - Weed Eater Lawn Tractor (2009-12) Drive Parts Diagram

Lawn Tractor

Drive Parts Diagram

  • Title

1

Electrolux/AYP 428268X613

WHEEL ASM (REAR)
(Superseded to 581420701)

$

$

Not available

2

Electrolux/AYP 121748X

WASHER, 16 GA.
(Superseded to 532121748)

$4.99

$

In Stock, Qty 14

0

3

Electrolux/AYP 12000001

E-CLIP
(Superseded to 812000001)

$4.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 123583X

KEY. SQUARE
(Superseded to 532123583)

$4.99

$

In Stock, Qty 7

0

5

Electrolux/AYP 427939

WELDMENT. DRIVE AXLE
(Superseded to 532427939)

$51.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 428069

CHAIN DRIVE
(Superseded to 532428069)

$

$

Not available

7

Electrolux/AYP 427873

SPROCKET. 9 TOOTH SPLINED
(Superseded to 532427873)

$8.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 12100009

RING, SNAP
(Superseded to 812100009)

$4.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 428876

DIFFERENTIAL ASM
(Superseded to 532428876)

$605.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 1370H

WASHER, THRUST
(Superseded to 532001370)

$6.49

$

In Stock, only 2 left!

0

12

Electrolux/AYP 430645

CHAIN, PRIMARY DRIVE
(Superseded to 532430645)

$24.99

$

In Stock, only 4 left!

0

13

Electrolux/AYP 430845

BUSHING
(Superseded to 532430845)

$

$

Not available

14

Electrolux/AYP 427946

BRACKET, CARRIER
(Superseded to 532438568)

$10.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 9159R

BEARING ASM
(Superseded to 532124793)

$15.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 427926

SHAFT INPUT
(Superseded to 532427926)

$40.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 428106

WHEEL, FRICTION A5M
(Superseded to 532436144)

$605.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 424759

ARM, SHIFT
(Superseded to 532424759)

$11.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 430870

ROD, BYPASS
(Superseded to 532430870)

$15.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 427997

BRACE CARRIER REAR
(Superseded to 532427997)

$8.99

$

In Stock, only 1 left!

0

21

Electrolux/AYP 428077

SPRING, CARRIER
(Superseded to 532428077)

$7.49

$

In Stock, only 1 left!

0

22

Electrolux/AYP 428076

SPRING, BRAKE
(Superseded to 532428076)

$

$

Not available

23

Electrolux/AYP 431374

SPRING, BYPASS
(Superseded to 532431374)

$7.99

$

In Stock, Qty 10

0

24

Electrolux/AYP 427995

BRACE CARRIER BOX
(Superseded to 532427995)

$9.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 429303

LINK, SHIFT

$8.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 429816

ARM. CLUTCH

$2.49

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 429053

WELDMENT SHIFT LEVER
(Superseded to 532429053)

$21.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 428302

SUPPORT, SHIFT LEVER
(Superseded to 532439816)

$66.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 174840

WASHER, NYLON
(Superseded to 532174840)

$

$

Not available

30

Electrolux/AYP 183900

HUB SHIFT LEVER
(Superseded to 532444304)

$8.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 429055

SPACER, NYLON
(Superseded to 532429055)

$4.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 428464

MNTG BRKT. SHIFT ARM
(Superseded to 532428464)

$4.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 428461

BRACKET, SHIFTER FLEX
(Superseded to 532428461)

$15.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 428462

TUBE SHIFT ARM

$8.49

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 196492

GRIP, HANDLE
(Superseded to 532411555)

$9.49

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 72110406

BOLT, CARRIAGE - 114-20 X 3/4
(Superseded to 582735501)

$7.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 73800400

NUT NYLON LOCK 114-20
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 165492

BOLT, SHOULDER
(Superseded to 532165492)

$10.99

$

In Stock, only 3 left!

0

39

Electrolux/AYP 74780412

BOLT, 1/4-20 X 3/4
(Superseded to 874780412)

$

$

Not available

40

Electrolux/AYP 10040400

WASHER, LOCK
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

41

Electrolux/AYP 19091210

WASHER FLAT
(Superseded to 819091210)

$4.99

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 166002

WASHER, SERRATED
(Superseded to 532166002)

$6.49

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 73680400

NUT, CROWN LOCK 114-20
(Superseded to 586668901)

$4.99

$

In Stock, Qty 18

0

45

Electrolux/AYP 17490436

SCREW 1/4-20 X 2 114
(Superseded to 817490436)

$

$

Not available

46

Electrolux/AYP 19091016

WASHER
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

47

Electrolux/AYP 17490420

SCREW, 1/4-20 X 1 1/2
(Superseded to 583608401)

$1.99

$

Usually ships in 3-10 days

0

48

Electrolux/AYP 430249

PLATE BRAKE ANTI - ROTATE

$2.49

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 430245

SPRING, BRAKE RETURN
(Superseded to 532430245)

$4.99

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 428021

ARM, BRAKE
(Superseded to 532428021)

$7.49

$

In Stock, only 1 left!

0

51

Electrolux/AYP 430247

SPACER RETURN
(Superseded to 532430247)

$4.99

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 428078

CALIPER, BRAKE ASM
(Superseded to 532428078)

$

$

Not available

53

Electrolux/AYP 77010810

PIN, DOWEL 1/4
(Superseded to 877010810)

$4.99

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 428019

PLATE, BRAKE PAD
(Superseded to 532428019)

$4.99

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 428017

PUCK BRAKE
(Superseded to 532428017)

$4.99

$

In Stock, only 2 left!

0

56

Electrolux/AYP 428014

ROTOR, BRAKE
(Superseded to 532435253)

$

$

Not available

57

Electrolux/AYP 428016

CAP, BRAKE CALIPER
(Superseded to 532428016)

$6.49

$

Usually ships in 3-10 days

0

58

Electrolux/AYP 4497H

PIN, RETAINER
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

59

Electrolux/AYP 17490508

BOLT, 5/16-16 X 112
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

60

Electrolux/AYP 428460

CABLE, BRAKE
(Superseded to 532440855)

$80.99

$

In Stock, only 1 left!

0

61

Electrolux/AYP 427945

WELDMENT, PEDAL
(Superseded to 532427945)

$10.99

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 429678

ROD, PARKING BRAKE
(Superseded to 532429678)

$8.99

$

Usually ships in 3-10 days

0

63

Electrolux/AYP 77100812

PIN, .25 X .75 CLEVIS

$2.49

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 76020208

PIN, 1/16 DIA. COTTER

$

$

Not available

65

Electrolux/AYP 429325

BRACKET, BRAKE SUPPORT
(Superseded to 532429325)

$8.99

$

In Stock, only 1 left!

0

66

Electrolux/AYP 429694

COVER PEDAL
(Superseded to 532429694)

$6.49

$

Usually ships in 3-10 days

0

67

Electrolux/AYP 429693

COVER, BRAKE PEDAL
(Superseded to 532429693)

$8.99

$

In Stock, only 1 left!

0

68

Electrolux/AYP 17490408

SCREW, 1/4-20 X 1/2

$

$

Not available

69

Electrolux/AYP 428070

BRAKE CABLE MOUNT
(Superseded to 532428070)

$4.99

$

In Stock, only 1 left!

0

70

Electrolux/AYP 17000512

BOLT, 5/16-18 X 3/4
(Superseded to 532428867)

$6.49

$

In Stock, Qty 14

0

71

Electrolux/AYP 104757X613

CAP HUB AXLE
(Superseded to 532436499)

$7.49

$

Usually ships in 3-10 days

0
