WE 261 (960220011-00) - Weed Eater Lawn Tractor (2010-06) CHASSIS & ENCLOSURES Parts Diagram

Lawn Tractor

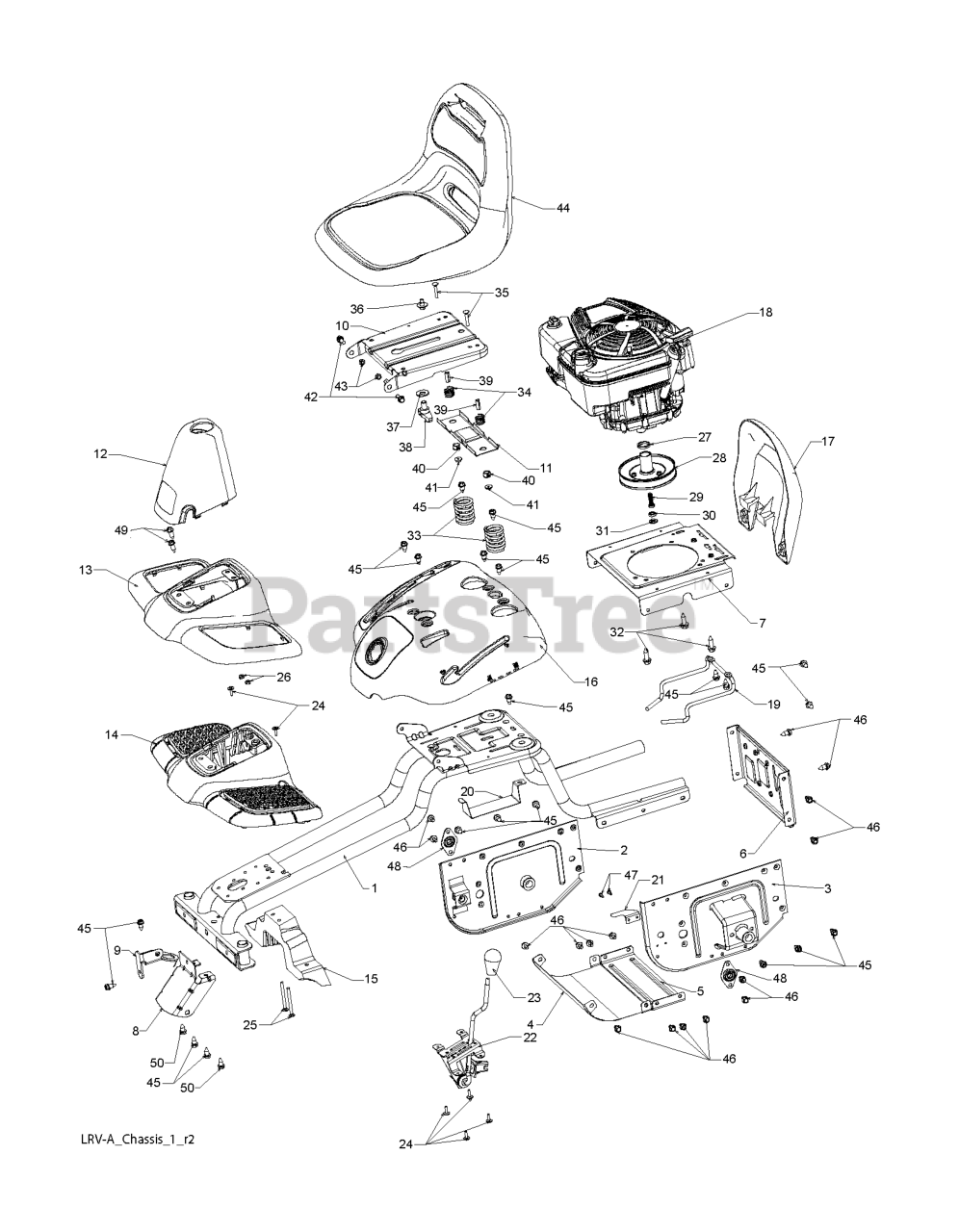

CHASSIS & ENCLOSURES Parts Diagram

  • Title

11

Husqvarna 532174648

BRKT.MNTNG.SWITCH.SEAT.BLACK

$10.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532428247

SUPPORT, AXEL LH

Note: LH

$66.99

$

Usually ships in 3-10 days

0

47

Husqvarna 532086777

TAPPING SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 16

0

30

Husqvarna 532430470

BEARING.BALL.689ZZ

$7.49

$

Usually ships in 3-10 days

0

41

Husqvarna 532123976

NUT T
(Superseded to 873900400)

$4.99

$

In Stock, Qty 18

0

23

Husqvarna 532149846

KNOB.OVAL.CUSTOM.BLACK

$13.99

$

In Stock, only 1 left!

0

19

Husqvarna 532428986

KEEPER, BELT

$9.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532171852

BOLT.SHOULDER.5/16-18
(Superseded to 587907801)

$4.99

$

In Stock, Qty 8

0

29

Husqvarna 532430817

BOLT, SCKT HD 3/8-24 X 1 .25

$4.99

$

Usually ships in 3-10 days

0

35

Husqvarna 872050412

BOLT.ROUND.HEAD.SQUARE.NECK

$6.49

$

Usually ships in 3-10 days

0

3

Husqvarna 532428244

RP SUPPORT, AXLE RH

Note: RH

$

$

Not available

50

Husqvarna 532165492

BOLT.SHOULDER.5/16-18X

$10.99

$

In Stock, only 3 left!

0

48

Husqvarna 532408981

BEARING FLANGE BALL

$9.99

$

In Stock, Qty 10

0

43

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532134300

SPACER SPLIT 28X.96

$7.49

$

Usually ships in 3-10 days

0

49

Husqvarna 817060516

SCREW 5/16-18X1

$6.49

$

Usually ships in 3-10 days

0

24

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

20

Husqvarna 532428046

BRACKET, BATTERY LRV

$6.49

$

In Stock, only 1 left!

0

10

Husqvarna 532195530

PAN.ASM.SEAT.1SLOT

$21.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532430087

SPACER.ENGINE.B&S.LRVA

$4.99

$

Usually ships in 3-10 days

0

37

Husqvarna 819171912

WASHER

$7.49

$

In Stock, only 1 left!

0

5

Husqvarna 532428110

STRAP.CROSS.FRICTION.DRIVE

$13.99

$

In Stock, only 1 left!

0

13

Husqvarna 532436496

FOOTREST.AESTHETIC.WE.GRN.LRV

$29.99

$

Usually ships in 3-10 days

0

25

Husqvarna 872140424

BOLT.CARRIAGE

$5.99

$

Usually ships in 3-10 days

0

44

Husqvarna 532428243

SEAT.SUBASY.OPP.WEEDEATER.LRVA
(Superseded to 532440691)

$169.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532428576

BRACKET, CHASSIS FRONT

Note: FRONT

$14.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532166369

KNOB.SEAT.ADJ.WINGNUT

$10.99

$

In Stock, only 1 left!

0

6

Husqvarna 532428109

COVER, FRICTION DRIVE

$24.99

$

Usually ships in 3-10 days

0

45

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 14

0

18

000000000

Note: BRIGGS & STRATTON 12S907-1411-B1 (428047)

$

$

Not available

26

Husqvarna 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 18

0

40

Husqvarna 532121248

BUSHING

$6.49

$

Usually ships in 3-10 days

0

36

Husqvarna 532127018

BOLT,SHOULD

$7.49

$

Usually ships in 3-10 days

0

15

Husqvarna 532428249

SUPPORT, FOOT REST

$23.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532430469

SPACER, NEUTRAL
(Superseded to 532437322)

$4.99

$

In Stock, only 1 left!

0

14

Husqvarna 532428250

STRUCTURE, FOOT REST

$47.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532428826

CABLE.ASM.CLUTCH.W/BRACKET

$109.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532428856

BRACKET, STEERING SUPPORT

$7.49

$

Usually ships in 3-10 days

0

28

Husqvarna 532428301

DISC, FRICTION ASM
(Superseded to 580747201)

$53.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532436891

BOOT
(Superseded to 583513801)

$51.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

16

Husqvarna 532436497

FENDER.CNTRL.PNL.WE.GRN.LRV

$

$

Not available

7

Husqvarna 532428040

PLATE, ENGINE

$

$

Not available

34

Husqvarna 532121250

SPRING

$7.49

$

Usually ships in 3-10 days

0

21

Husqvarna 532429815

LEVER, SWITCH

$4.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532428346

SHIELD, TRANSAXLE FRONT

Note: FRONT

$

$

Not available

1

Husqvarna 532428048

CHASSIS.WLD.26".LRV

$

$

Not available

33

Husqvarna 532124181

SPRING COMPRESSION
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

46

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532428348

GUARD.ENGINE.LRV

$24.99

$

Usually ships in 3-10 days

0
