WE 261 (960220009-02) - Weed Eater Lawn Tractor (2011-10) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

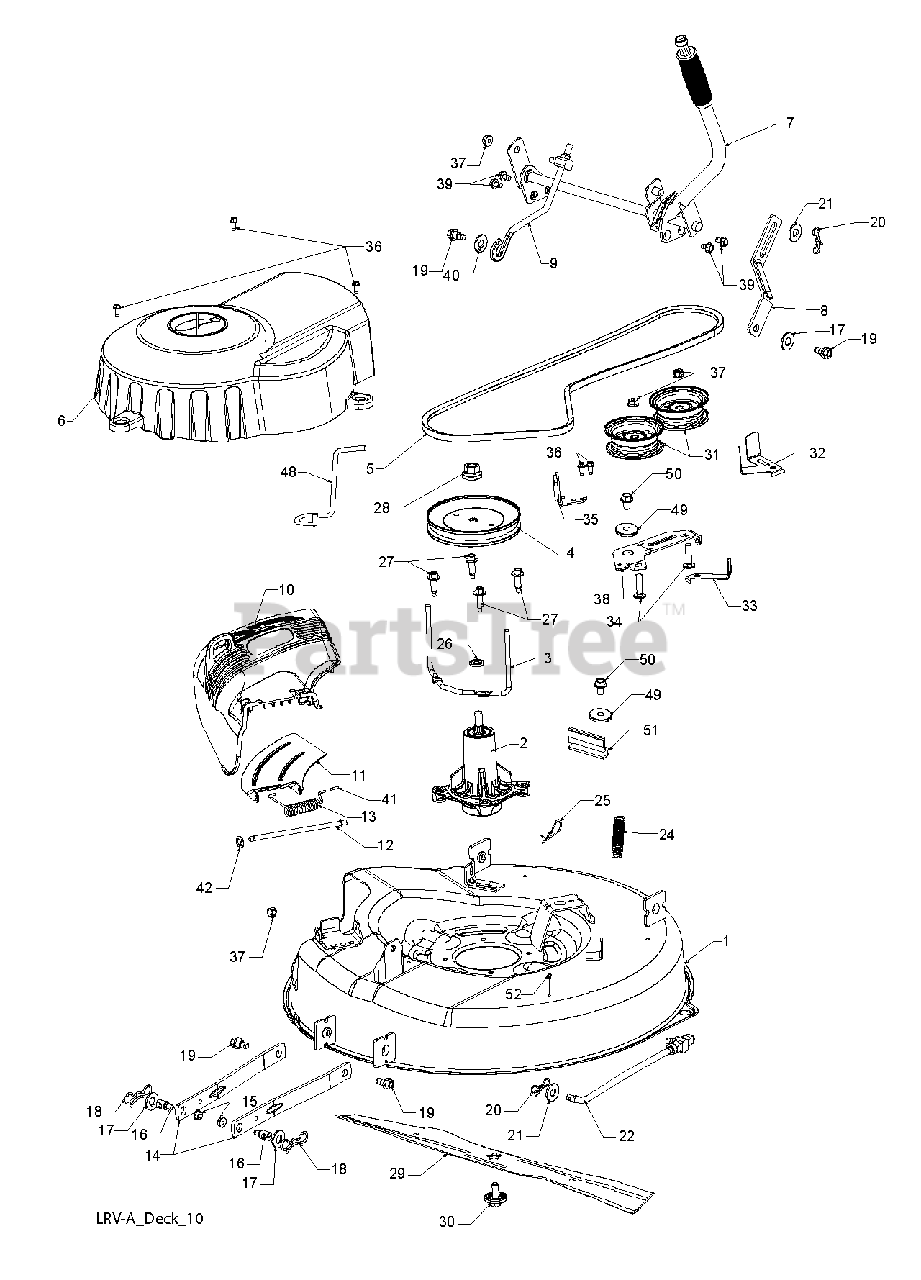

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Poulan 532428193

DECK, 26"
(Superseded to 584344001)

$218.99

$

Usually ships in 3-10 days

0

2

Poulan 532192870

MANDREL.ASM.SUB-NON.GR
(Superseded to 587819701)

$56.99

$

In Stock, Qty 17

0

3

Poulan 532432520

KEEPER.BELT.MANDREL.PULLEY
(Superseded to 589676103)

$7.99

$

In Stock, Qty 12

0

4

Poulan 532432594

PULLEY.MANDREL

$15.99

$

Usually ships in 3-10 days

0

5

Poulan 532428578

BELT

$48.99

$

In Stock, only 1 left!

0

6

Poulan 532428242

COVER, MANDREL

$34.99

$

Usually ships in 3-10 days

0

7

Poulan 532438691

SVC.LIFT.ASM.LRVA

$109.99

$

Usually ships in 3-10 days

0

8

Poulan 532429195

LINK, DECK LIFT

$

$

Not available

9

Poulan 532429397

LINK.ASM.LIFT.ADJUSTABLE

$

$

Not available

10

Poulan 532438923

(Superseded to 583536201)

$43.99

$

Usually ships in 3-10 days

0

11

Poulan 532428968

SUPPORT, DEFLECTOR

$10.99

$

Usually ships in 3-10 days

0

12

Poulan 532131491

ROD.HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

13

Poulan 532197026

SPRING.TORSION.DEFLECT

$10.99

$

In Stock, Qty 20+

0

14

Poulan 532418863

ARMS.SUSP.MOWER.REAR.SRD

$20.99

$

Usually ships in 3-10 days

0

15

Poulan 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 2 left!

0

16

Poulan 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

17

Poulan 819191912

WASHER.CLEAR.ZINC

$6.49

$

In Stock, Qty 20+

0

18

Poulan 532194209

PIN.COTTER.7/16.BOW TI.

$3.99

$

In Stock, only 1 left!

0

19

Poulan 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

20

Poulan 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

Usually ships in 3-10 days

0

21

Poulan 819171912

WASHER

$7.49

$

In Stock, only 1 left!

0

22

Poulan 532429350

LINK.ASM.TOP.DECK.LRV

$27.99

$

Usually ships in 3-10 days

0

24

Poulan 532429531

SPRING.EXTENSION.DECK.LRV

$4.99

$

Usually ships in 3-10 days

0

25

Poulan 532124788

(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

26

Poulan 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, Qty 20+

0

27

Poulan 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 16

0

28

Poulan 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 12

0

29

Poulan 532428500

BLADE.26"

$27.99

$

Usually ships in 3-10 days

0

30

Poulan 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0

31

Poulan 532193197

PULLEY.IDLER.48"PRIMARY
(Superseded to 532177968)

$31.99

$

In Stock, Qty 9

0

32

Poulan 532141043

GUARD, BELT

$

$

Not available

33

Poulan 532193414

KEEPER BELT

$6.49

$

In Stock, only 1 left!

0

34

Poulan 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

35

Poulan 532199470

ARM BRAKE MOWER RH
(Superseded to 532400130)

$18.99

$

In Stock, only 2 left!

0

36

Poulan 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

37

Poulan 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

38

Poulan 532428435

ARM, IDLER

$8.99

$

Usually ships in 3-10 days

0

39

Poulan 817490508

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

40

Poulan 819171616

(Superseded to 596040101)

$3.99

$

In Stock, Qty 20+

0

41

Poulan 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

42

Poulan 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

48

Poulan 532438610

KEEPER.BELT

$4.99

$

In Stock, only 1 left!

0

49

Poulan 532199092

SPACER.RETAINER

$6.99

$

In Stock, Qty 11

0

50

Poulan 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

51

Poulan 532404742

BUMPER.HOOD.TEX.HUSQVARNA

$6.99

$

In Stock, only 2 left!

0

52

Poulan 817670608

SCREW 3/8-16X1/2

$6.49

$

Usually ships in 3-10 days

0
