WE 18N44 A - Weed Eater Lawn Tractor (1995) PEERLESS TRANSAXLE Parts Diagram

Lawn Tractor

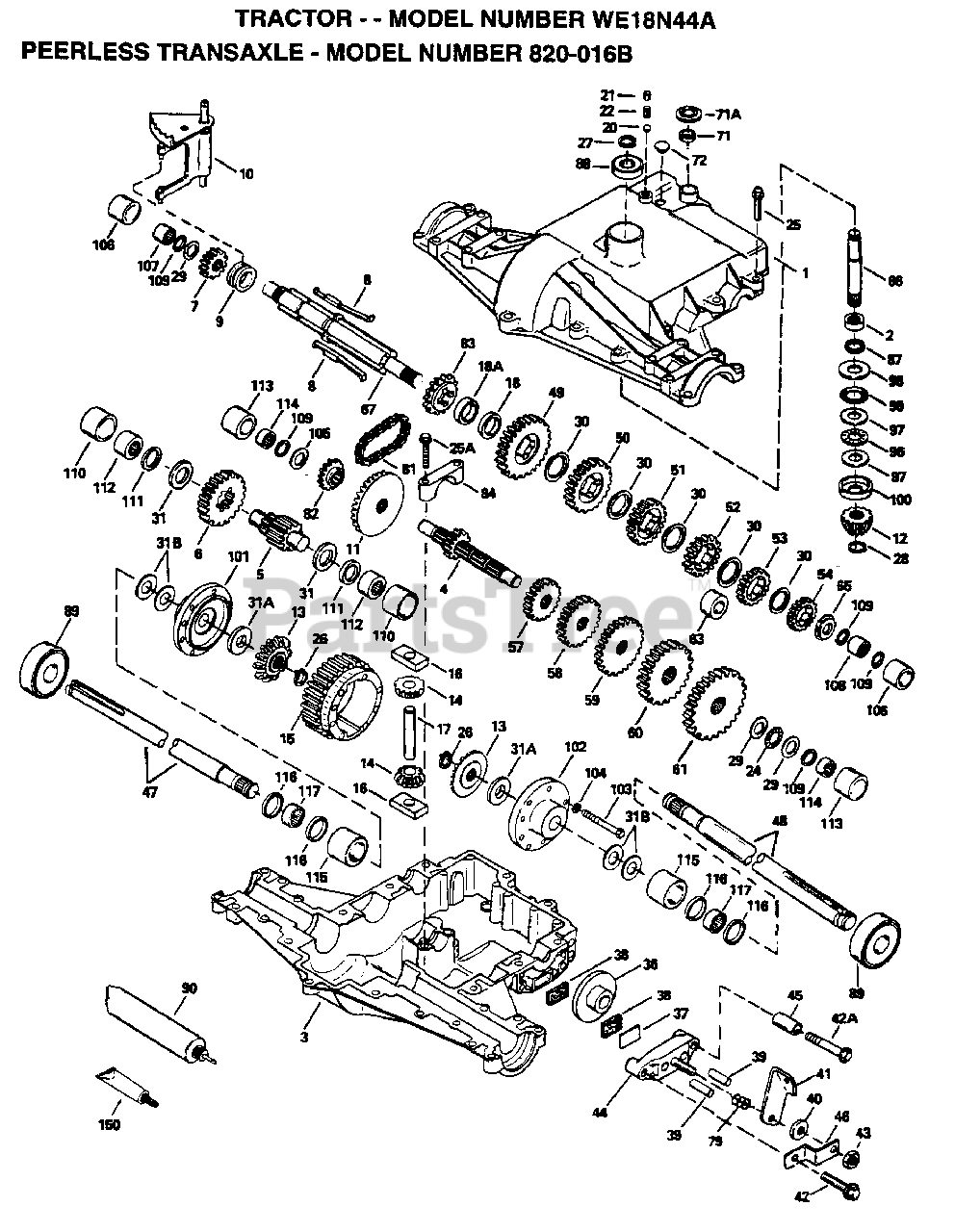

PEERLESS TRANSAXLE Parts Diagram

  • Title

Electrolux/AYP 794513

TRANSAXLE, COMPLETE

$

$

Not available

1

Electrolux/AYP 772098A

COVER TRANSAXLE

$

$

Not available

2

Electrolux/AYP 780155

BEARING NEEDLE

$

$

Not available

3

Electrolux/AYP 770088

CASE TRANSAXLE

$

$

Not available

4

Electrolux/AYP 776291

SHAFT COUNTER

$

$

Not available

5

Electrolux/AYP 776275

SHAFT, OUTPUT, 9T

$

$

Not available

6

Electrolux/AYP 778247

GEAR, OUTPUT, 35T

$

$

Not available

7

Electrolux/AYP 778253

GEAR, SPUR, 15T

$

$

Not available

$

$

Not available

9

Electrolux/AYP 784216

COLLAR SHIFT

$

$

Not available

10

Electrolux/AYP 784342

ROD AND FORK ASSY SHIFT

$

$

Not available

11

Electrolux/AYP 778246

GEAR BEVEL, 33T

$

$

Not available

12

Electrolux/AYP 778245

BEVEL PINION, 13T

$

$

Not available

13

$

$

Not available

14

Electrolux/AYP 778197

PINION, 10T

$

$

Not available

15

Electrolux/AYP 778248

GEAR, RING, 31T

$

$

Not available

16

Electrolux/AYP 786027

BLOCK DRIVE

$

$

Not available

17

$

$

Not available

18

Electrolux/AYP 786121

SPACER, .350/.340 THICK

$

$

Not available

18A

Electrolux/AYP 786122

SPACER, .276/.268 THICK

$

$

Not available

20

Electrolux/AYP 792077

BALL STEEL, 5/16" DIA.

$

$

Not available

21

Electrolux/AYP 792078

SCREW, 3/8-16 X 3/8"

$

$

Not available

$

$

Not available

24

Electrolux/AYP 780071

THRUST BEARING

$

$

Not available

25

Electrolux/AYP 792129

SCREW HEX HD 5/16-18 X 1-1/4

$

$

Not available

25A

Electrolux/AYP 792073

SCREW, 1/4-20 X 1-1/4

$

$

Not available

26

$

$

Not available

27

$

$

Not available

28

Electrolux/AYP 788040

RETAINING RING

$

$

Not available

29

Electrolux/AYP 780072

WASHER THRUST

$

$

Not available

30

Electrolux/AYP 780108

WASHER THRUST

$

$

Not available

31

Electrolux/AYP 780128

WASHER THRUST

$

$

Not available

$

$

Not available

31B

Electrolux/AYP 780042

WASHER THRUST

$

$

Not available

36

$

$

Not available

37

Electrolux/AYP 790007

PLATE BRAKE PAD

$

$

Not available

38

$10.99

$

In Stock, only 1 left!

0

39

$

$

Not available

$

$

Not available

41

Electrolux/AYP 790047

LEVER BRAKE

$

$

Not available

42

Electrolux/AYP 792073

SCREW, 1/4-20 X 1-1/4

$

$

Not available

42A

Electrolux/AYP 792085A

SCREW, 1/4-20 X 2-1/4

$

$

Not available

43

Electrolux/AYP 792075

LOCKNUT 5/16-24

$

$

Not available

44

Electrolux/AYP 790025

HOLDER BRAKE PAD

$

$

Not available

$

$

Not available

46

Electrolux/AYP 786086

BRKT BRAKE LEVER

$

$

Not available

47

Electrolux/AYP 774832

AXLE, 12-5/16" LONG

$

$

Not available

48

Electrolux/AYP 774831

AXLE, 16-3/16" LONG

$

$

Not available

49

Electrolux/AYP 778216A

GEAR, SPUR, 41T

$

$

Not available

50

Electrolux/AYP 778206A

GEAR, SPUR, 35T

$

$

Not available

51

Electrolux/AYP 778205A

GEAR, SPUR, 30T

$

$

Not available

52

Electrolux/AYP 778204A

GEAR, SPUR, 25T

$

$

Not available

53

Electrolux/AYP 778203A

GEAR, SPUR, 22T

$

$

Not available

54

Electrolux/AYP 778273

GEAR, SPUR, 19T

$

$

Not available

57

Electrolux/AYP 778199

GEAR, SPUR, 15T

$

$

Not available

58

Electrolux/AYP 778200

GEAR, SPUR, 20T

$

$

Not available

59

Electrolux/AYP 778201

GEAR, SPUR, 25T

$

$

Not available

60

Electrolux/AYP 778202

GEAR, SPUR, 28T

$

$

Not available

61

Electrolux/AYP 778208

GEAR, SPUR, 31T

$

$

Not available

$

$

Not available

99

Electrolux/AYP 776274

SHAFT INPUT

$

$

Not available

67

Electrolux/AYP 776313

SHAFT BRAKE

$

$

Not available

71

Electrolux/AYP 788069

SEAL SQUARE CUT

$

$

Not available

71A

$

$

Not available

72

Electrolux/AYP 792074

PLUG, THRDED, 9/16-18

$

$

Not available

$

$

Not available

81

Electrolux/AYP 786081

CHAIN, ROLLER

$

$

Not available

82

Electrolux/AYP 786082

SPROCKET 9T

$

$

Not available

83

Electrolux/AYP 786123

SPROCKET 18T (REV)

$

$

Not available

84

Electrolux/AYP 786131

BEARING CAP

$

$

Not available

87

Electrolux/AYP 788042

OIL SEAL 3/4

$

$

Not available

88

Electrolux/AYP 780119

BEARING BALL

$

$

Not available

89

Electrolux/AYP 780050

BEARING BALL

$

$

Not available

90

Electrolux/AYP 788067B

GREASE BENTONITE, 32 OZ.

$

$

Not available

96

Electrolux/AYP 780084

BEARING THRUST

$

$

Not available

97

Electrolux/AYP 780051

WASHER THRUST

$

$

Not available

$

$

Not available

99

$

$

Not available

100

Electrolux/AYP 780166

WASHER CUPPED

$

$

Not available

101

Electrolux/AYP 774833

CARRIER DIFF THREADED HOLES

$

$

Not available

102

Electrolux/AYP 774834

CARRIER DIFF

$

$

Not available

103

Electrolux/AYP 792020

SCREW, 1/4-20 X 2-1/4

$

$

Not available

104

Electrolux/AYP 792006

WASHER LOCK 1/4

$

$

Not available

$

$

Not available

$

$

Not available

107

Electrolux/AYP 780152

BEARING NEEDLE

$

$

Not available

108

Electrolux/AYP 780150

BEARING NEEDLE

$

$

Not available

109

$

$

Not available

110

Electrolux/AYP 786142

SLEEVE STEPPED

$

$

Not available

111

Electrolux/AYP 788071

RING SQ CUT

$

$

Not available

112

Electrolux/AYP 780168

BEARING NEEDLE CAPPED

$

$

Not available

113

Electrolux/AYP 786143

SLEEVE STEPPED

$

$

Not available

114

Electrolux/AYP 780151

BEARING NEEDLE CAPPED

$

$

Not available

115

Electrolux/AYP 786145

SLEEVE STEPPED

$

$

Not available

116

Electrolux/AYP 788070

RING SQ CUT

$

$

Not available

117

Electrolux/AYP 780031

BEARING NEEDLE

$

$

Not available

150

Electrolux/AYP 510334

GASKET ELIMINATOR

$

$

Not available
