WE 18N44 A - Weed Eater Lawn Tractor (1995) MOWER DECK Parts Diagram

Lawn Tractor

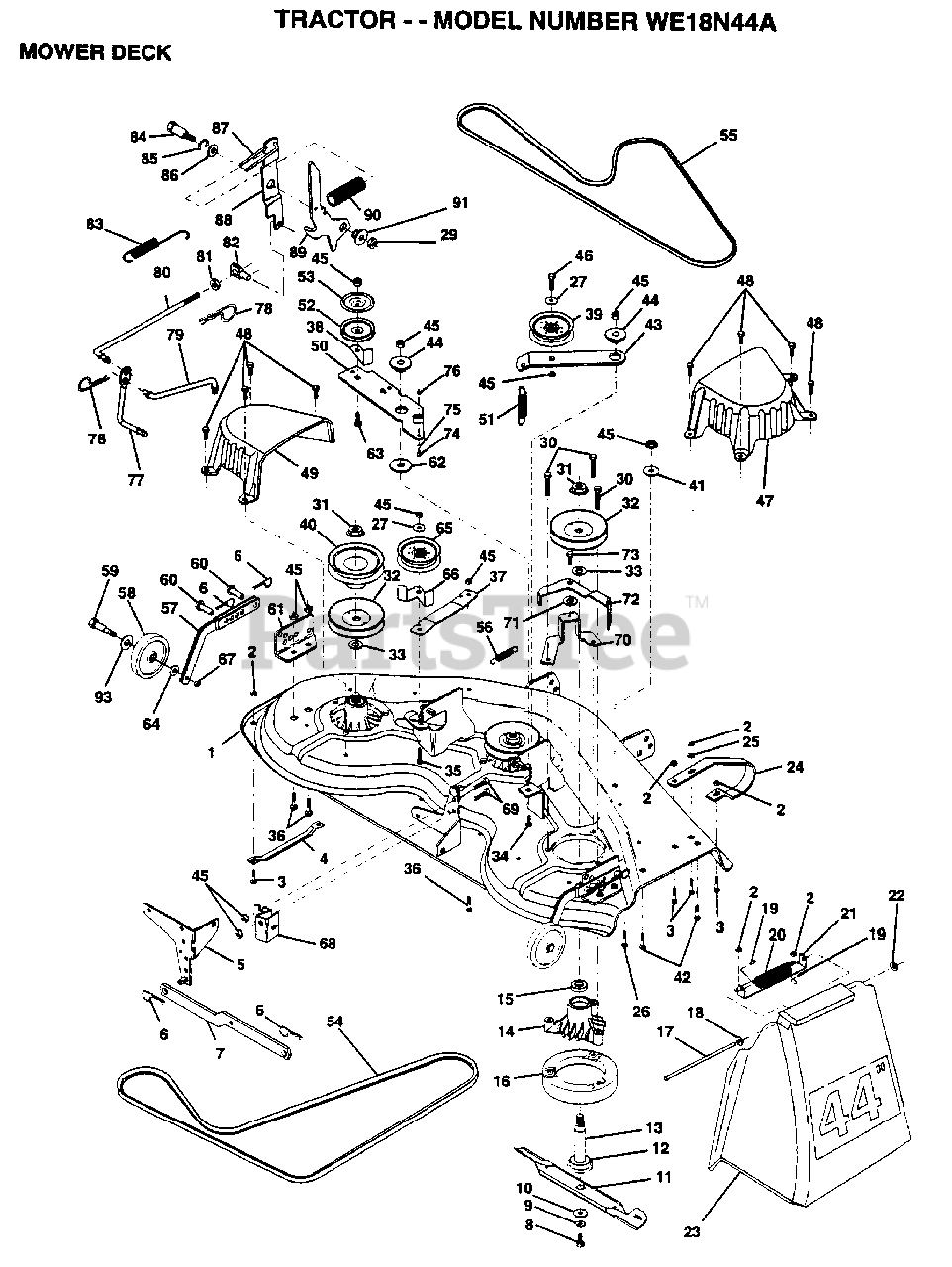

MOWER DECK Parts Diagram

  • Title
1

Electrolux/AYP 140579

"DECK ASM WELD44"""
(Superseded to 583074901)

$607.99

$

Usually ships in 3-10 days

0

2

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

3

Electrolux/AYP 72110506

SUB= 72270506
(Superseded to 872110506)

$7.49

$

In Stock, Qty 20+

0

4

Electrolux/AYP 7631J

RUNNER-LH M
(Superseded to 532007631)

$18.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 138457

BRKT.ASM.SW.44/50
(Superseded to 532138457)

$11.99

$

Usually ships in 3-10 days

0

6

Murray 4939M

SUB= 85902

$

$

Not available

7

Electrolux/AYP 130832

SUB= 130833
(Superseded to 532130832)

$

$

Not available

8

Electrolux/AYP 850857

BLADE BOLT
(Superseded to 532850857)

$4.99

$

In Stock, only 1 left!

0

9

Electrolux/AYP 10030600

SUB= 10040600
(Superseded to 810030600)

$

$

Not available

10

Electrolux/AYP 140296

WASHER.HARD.BLADE
(Superseded to 532140296)

$6.99

$

In Stock, only 2 left!

0

11

Electrolux/AYP 130652

"BLADE.44"" HIPERF"
(Superseded to 532130652)

$27.99

$

In Stock, only 1 left!

0

12

Electrolux/AYP 129895

BEARING.BALL
(Superseded to 532129895)

$17.99

$

In Stock, only 2 left!

0

13

Electrolux/AYP 137553

SHAFT.ASM.W/BRNG
(Superseded to 532137553)

$37.99

$

In Stock, only 1 left!

0

14

Electrolux/AYP 137152

HOUSING.MAND.44.V
(Superseded to 532137152)

$40.99

$

In Stock, only 1 left!

0

15

Electrolux/AYP 110485X

BEARING
(Superseded to 532110485)

$13.99

$

In Stock, Qty 11

0

16

Electrolux/AYP 140329

STRIPPER RND MWR
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 106735X

ROD-HINGE T
(Superseded to 532106735)

$10.99

$

In Stock, only 1 left!

0

18

Electrolux/AYP 19111016

WASHER
(Superseded to 819111016)

$3.99

$

In Stock, Qty 20+

0

19

Electrolux/AYP 105304X

CAP-SLEEVE LT
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

20

Electrolux/AYP 123713X

SPRING TORSION
(Superseded to 532123713)

$7.99

$

In Stock, only 1 left!

0

21

Electrolux/AYP 137607

BRKT DEFLECTOR
(Superseded to 532137607)

$6.49

$

In Stock, only 2 left!

0

22

Electrolux/AYP 110452X

NUT PUSH M
(Superseded to 532110452)

$3.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 109785X

DEFLECTOR SHIELD
(Superseded to 532109785)

$30.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 136321

RUNNER.RH
(Superseded to 532136321)

$

$

Not available

25

Electrolux/AYP 19111216

WASHER M
(Superseded to 819111216)

$0.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 72110606

BOLT
(Superseded to 872110606)

$4.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

29

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 138776

SUB= 157722
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

31

Electrolux/AYP 137266

SUB= 139729
(Superseded to 532139729)

$9.49

$

In Stock, only 1 left!

0

32

Electrolux/AYP 129861

SUB= 153535
(Superseded to 532129861)

$

$

Not available

33

Electrolux/AYP 129963

WASHER
(Superseded to 532187690)

$4.99

$

In Stock, Qty 8

0

34

Electrolux/AYP 72140610

BOLT.3/8-14X1.25
(Superseded to 595901101)

$4.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 72110616

BOLT
(Superseded to 872110616)

$3.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 72110608

BOLT D
(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 137166

STIFFENER.ARM.IDL
(Superseded to 532137166)

$6.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 140365

KEEPER BELT IDLER

$

$

Not available

39

Electrolux/AYP 131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$26.99

$

In Stock, Qty 6

0

40

Electrolux/AYP 136572

"PULLEY.DRIVEN.44"""
(Superseded to 532136572)

$

$

Not available

$2.99

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 72140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

43

Electrolux/AYP 136460

"ARM.IDLER.SEC.44"""
(Superseded to 532136460)

$

$

Not available

44

Electrolux/AYP 122052X

SPACER RETAINER
(Superseded to 532165723)

$6.99

$

In Stock, only 1 left!

0

45

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

$2.99

$

Usually ships in 3-10 days

0

47

Electrolux/AYP 137200

"COVER.MAND.RH.44"""
(Superseded to 532137200)

$

$

Not available

48

Electrolux/AYP 137729

SCREW.1/4-20X5/8
(Superseded to 532137729)

$4.99

$

In Stock, Qty 19

0

49

Electrolux/AYP 136574

COVER.MANDREL.LH
(Superseded to 532136574)

$

$

Not available

50

Electrolux/AYP 137275

SUB= 145009

$

$

Not available

51

Electrolux/AYP 137273

"SPRING.SEC.44""VEN"
(Superseded to 532137273)

$7.99

$

In Stock, Qty 5

0

52

Electrolux/AYP 139245

PULLEY.IDLER.VGRO
(Superseded to 532139245)

$37.99

$

In Stock, only 1 left!

0

53

Electrolux/AYP 137789

SHIELD.IDLER.44.V
(Superseded to 532137789)

$

$

Not available

54

Electrolux/AYP 142686

BELT-V MOWER PRIM
(Superseded to 582960001)

$66.99

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 131290

BELT-V.88.12.MW
(Superseded to 532144200)

$45.99

$

Usually ships in 3-10 days

0

56

Electrolux/AYP 126910X

"SPRING,EXTENTION"
(Superseded to 532126910)

$3.99

$

Usually ships in 3-10 days

0

57

Electrolux/AYP 136577

BAR.ASM.GUAGE.WHL
(Superseded to 532136577)

$

$

Not available

58

Electrolux/AYP 105455X

WHEEL.GAGE.BLK.PL
(Superseded to 532105455)

$18.99

$

In Stock, only 2 left!

0

59

Electrolux/AYP 4898H

BOLT M
(Superseded to 596434402)

$4.99

$

In Stock, only 3 left!

0

60

Electrolux/AYP 139031

PIN.CLEVIS
(Superseded to 532139031)

$6.49

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 136573

BRACKET.GUAGE.WHL
(Superseded to 532136573)

$6.49

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 133943

HARDENED WASHER
(Superseded to 532178515)

$6.99

$

Usually ships in 3-10 days

0

63

Electrolux/AYP 72110612

BOLT.3/8-16X1.50
(Superseded to 872110612)

$6.49

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 19121414

WASHER
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

65

Electrolux/AYP 102403X

IDLER-FLAT T
(Superseded to 532102403)

$39.99

$

In Stock, only 1 left!

0

66

Electrolux/AYP 139622

SUB= 918139622
(Superseded to 532156009)

$7.49

$

In Stock, only 1 left!

0

67

Electrolux/AYP 73930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

68

Electrolux/AYP 140364

BRACKET PVT MCH
(Superseded to 582957301)

$4.99

$

Usually ships in 3-10 days

0

69

Electrolux/AYP 74760612

SUB= 74780612
(Superseded to 874760612)

$4.99

$

In Stock, only 3 left!

0

70

Electrolux/AYP 140361

"BRACKET SUPT 44"""

$9.99

$

Usually ships in 3-10 days

0

71

Electrolux/AYP 133944

HARD SMALL WASHER
(Superseded to 532133944)

$6.49

$

Usually ships in 3-10 days

0

72

Electrolux/AYP 140367

ARM BRAKE ASM

$

$

Not available

73

Electrolux/AYP 139888

BOLT.SHLD.5/16-18
(Superseded to 532139888)

$6.49

$

In Stock, only 1 left!

0

74

Electrolux/AYP 133940

SUB= 151785
(Superseded to 532151785)

$40.99

$

In Stock, only 1 left!

0

75

Electrolux/AYP 131340

SHOULDER BOLT
(Superseded to 532131340)

$

$

Not available

76

Electrolux/AYP 69180

LOCKNUT
(Superseded to 532069180)

$6.49

$

Usually ships in 3-10 days

0

77

Electrolux/AYP 133551

PIVOT ROD
(Superseded to 532133551)

$8.99

$

In Stock, only 1 left!

0

78

Electrolux/AYP 4497H

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

79

Electrolux/AYP 140363

ROD CLUTCH SECON

$

$

Not available

80

Electrolux/AYP 143354

ROD.CLUTCH.PRIM44
(Superseded to 582960701)

$

$

Not available

81

Electrolux/AYP 73350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

82

Electrolux/AYP 142028

TRUNION ADJ
(Superseded to 532142028)

$

$

Not available

83

Electrolux/AYP 146927

SPRING.EXT.RETURN
(Superseded to 582967601)

$

$

Not available

84

Electrolux/AYP 128903

SHOULDER BOLT
(Superseded to 532128903)

$6.99

$

In Stock, only 2 left!

0

85

Electrolux/AYP 12000029

RING
(Superseded to 812000029)

$4.99

$

Usually ships in 3-10 days

0

86

Electrolux/AYP 121748X

WASHER
(Superseded to 532121748)

$4.99

$

In Stock, Qty 20+

0

87

Electrolux/AYP 127845

SPRING KEEPER
(Superseded to 532127845)

$

$

Not available

88

Electrolux/AYP 127847

CLUTCH ARM SECOND
(Superseded to 532127847)

$2.99

$

Usually ships in 3-10 days

0

89

Electrolux/AYP 140333

SUB= 140333X431

$

$

Not available

90

Electrolux/AYP 128759

SUB= 918128759
(Superseded to 532153701)

$

$

Not available

91

Electrolux/AYP 127498

BUSHING
(Superseded to 532127498)

$

$

Not available

93

Electrolux/AYP 19171512

WASHER
(Superseded to 819171512)

$3.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 143419

DECK MOWER COMP

$

$

Not available

Electrolux/AYP 143651

MANDREL SERV ASM
(Superseded to 532143651)

$102.99

$

In Stock, only 4 left!

0
