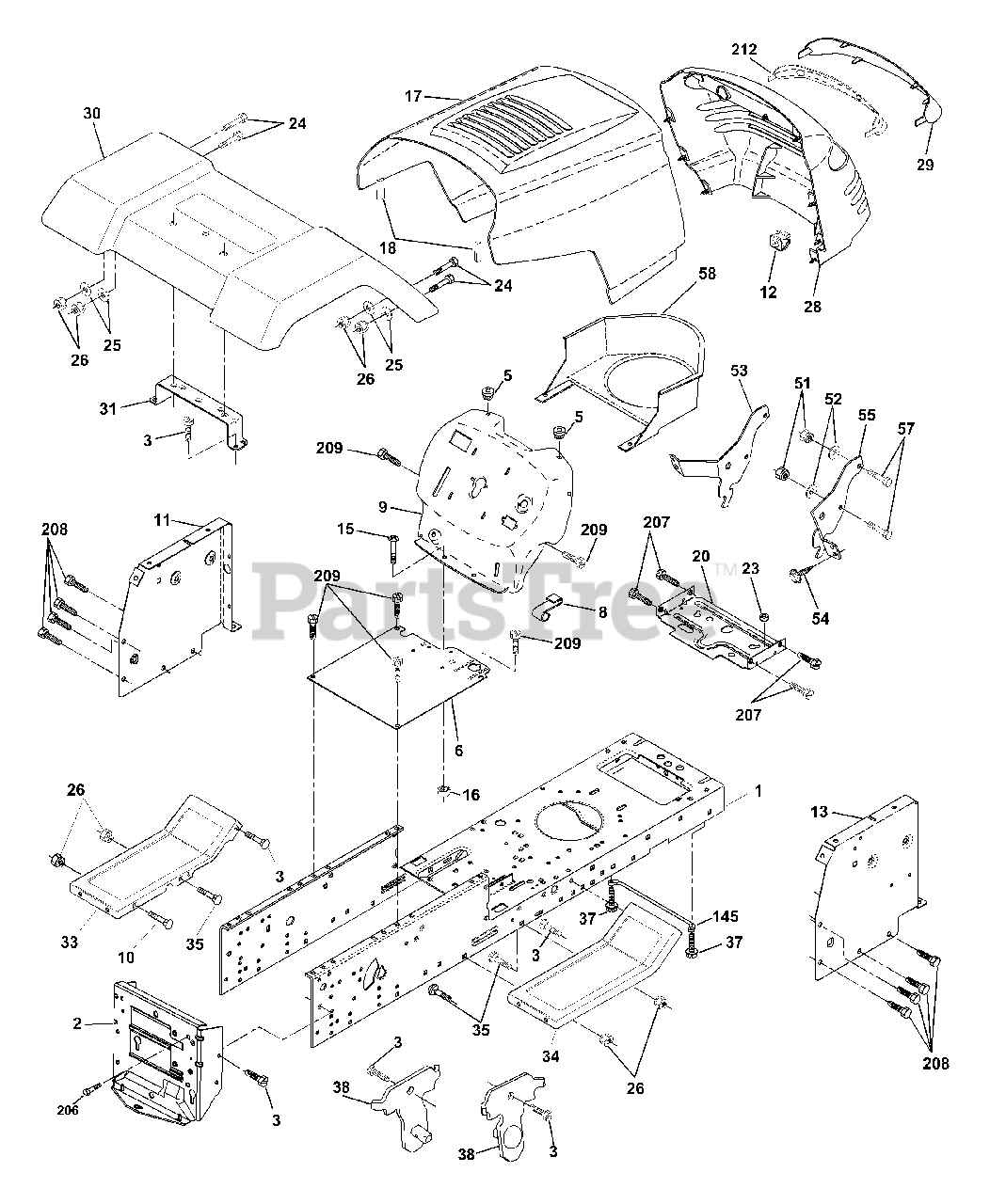

WE 16542 D - Weed Eater Lawn Tractor (2001) Chassis And Enclosures Parts Diagram

Lawn Tractor

Chassis And Enclosures Parts Diagram

  • Title

$

$

Not available

2

Electrolux/AYP 176554

Drawbar
(Superseded to 532176554)

$43.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 17060612

Screw 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

5

Electrolux/AYP 155272

Bumper Hood/Dash
(Superseded to 532155272)

$7.49

$

In Stock, only 3 left!

0

6

Electrolux/AYP 155923

Saddle Flat Lt Fender Shift
(Superseded to 532155923)

$14.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 155138

Clip Retainer Slide-On
(Superseded to 532155138)

$4.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 168347X011

Dash
(Superseded to 532172170)

$31.99

$

Usually ships in 3-10 days

0

10

Murray 72140608

Bolt Rd Hd Sqnk. 3/8-16 Unc x 1

$

$

Not available

11

Electrolux/AYP 155927

Panel Asm. Dash Lh
(Superseded to 174996)

$

$

Not available

12

Electrolux/AYP 145660

Clip Tinnerman Grile P/L
(Superseded to 532145660)

$3.49

$

In Stock, only 1 left!

0

13

$

$

Not available

15

Electrolux/AYP 74180512

Screw Mach Trhd 5/16-18 Unc x 3/4
(Superseded to 874180512)

$

$

Not available

16

Electrolux/AYP 73510500

Nut Keps 5/16-18 Unc

$2.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 159639X550

Hood
(Superseded to 532182408)

$80.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 126938X

Bumper Hood
(Superseded to 532126938)

$

$

Not available

20

Electrolux/AYP 156437

Plate Mtg Battery/Fuel Tank Fr
(Superseded to 180679)

$11.99

$

Usually ships in 3-10 days

0

23

Murray 124028X

Bushing Snap Nyl Blk Fuel Line

$

$

Not available

24

Electrolux/AYP 74780616

Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 19131312

Washer 13/32 x 13/16 x 12 Ga.
(Superseded to 596133201)

$6.99

$

In Stock, only 3 left!

0

26

Electrolux/AYP 73800600

Nut Lock Hex w/Insert 3/8-16 UNC
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 140434

Grill/Lens Asm
(Superseded to 532179101)

$

$

Not available

29

Electrolux/AYP 140273X599

Lens Grille Private label
(Superseded to 532140273)

$

$

Not available

30

Electrolux/AYP 169467X550

Fender Asm
(Superseded to 583690101)

$94.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 136619

Bracket Fender
(Superseded to 532136619)

$

$

Not available

33

Electrolux/AYP 145244X550

Footrest Lh
(Superseded to 532182874)

$43.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 145243X550

Footrest Rh
(Superseded to 179717X550)

$11.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 72110606

Bolt Rd Hd Sht. Sqnk. 3/8-16 x 3/4
(Superseded to 872110606)

$4.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 17490508

Screw Thdrol 5/16-18 x 1/2 Tyt
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 169834

Bracket Asm. Pivot Mower Rear
(Superseded to 532175710)

$11.99

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 73800400

Nut Lock Hex W/Ins. 1/4-20
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 19091416

Washer 9/32 x 7/8 x 16 Ga.
(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 144697

Bracket Grille LH
(Superseded to 532144697)

$

$

Not available

54

Electrolux/AYP 161464

Screw Hex Wshd 8-18 x 7/8
(Superseded to 532161464)

$

$

Not available

55

Electrolux/AYP 144696

Bracket, Grille RH
(Superseded to 532144696)

$

$

Not available

57

Electrolux/AYP 74780412

Bolt Fin Hex 1/4-20 x .75
(Superseded to 874780412)

$

$

Not available

58

Electrolux/AYP 150127

Air Duct Private Label tractor
(Superseded to 532150127)

$

$

Not available

145

Electrolux/AYP 156524

Rod Pivot Chassis/Hood
(Superseded to 532409167)

$13.99

$

In Stock, only 2 left!

0

206

Electrolux/AYP 170165

Bolt shoulder 5/16-18
(Superseded to 532170165)

$4.99

$

In Stock, Qty 5

0

207

Electrolux/AYP 17670508

Screw Thdrol 5/16-18 x 1/2
(Superseded to 817670508)

$9.49

$

In Stock, only 2 left!

0

208

Electrolux/AYP 17670608

Screw Thdrol 3/8-16 x 1/2
(Superseded to 817670608)

$6.49

$

Usually ships in 3-10 days

0

209

Electrolux/AYP 17000612

Screw Hex Wsh Thdrol 3/8-16
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

212

Electrolux/AYP 156229

Insert Lens Reflector
(Superseded to 532174503)

$26.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 5479J

Plug Btn Blk
(Superseded to 532005479)

$5.99

$

Usually ships in 3-10 days

0
