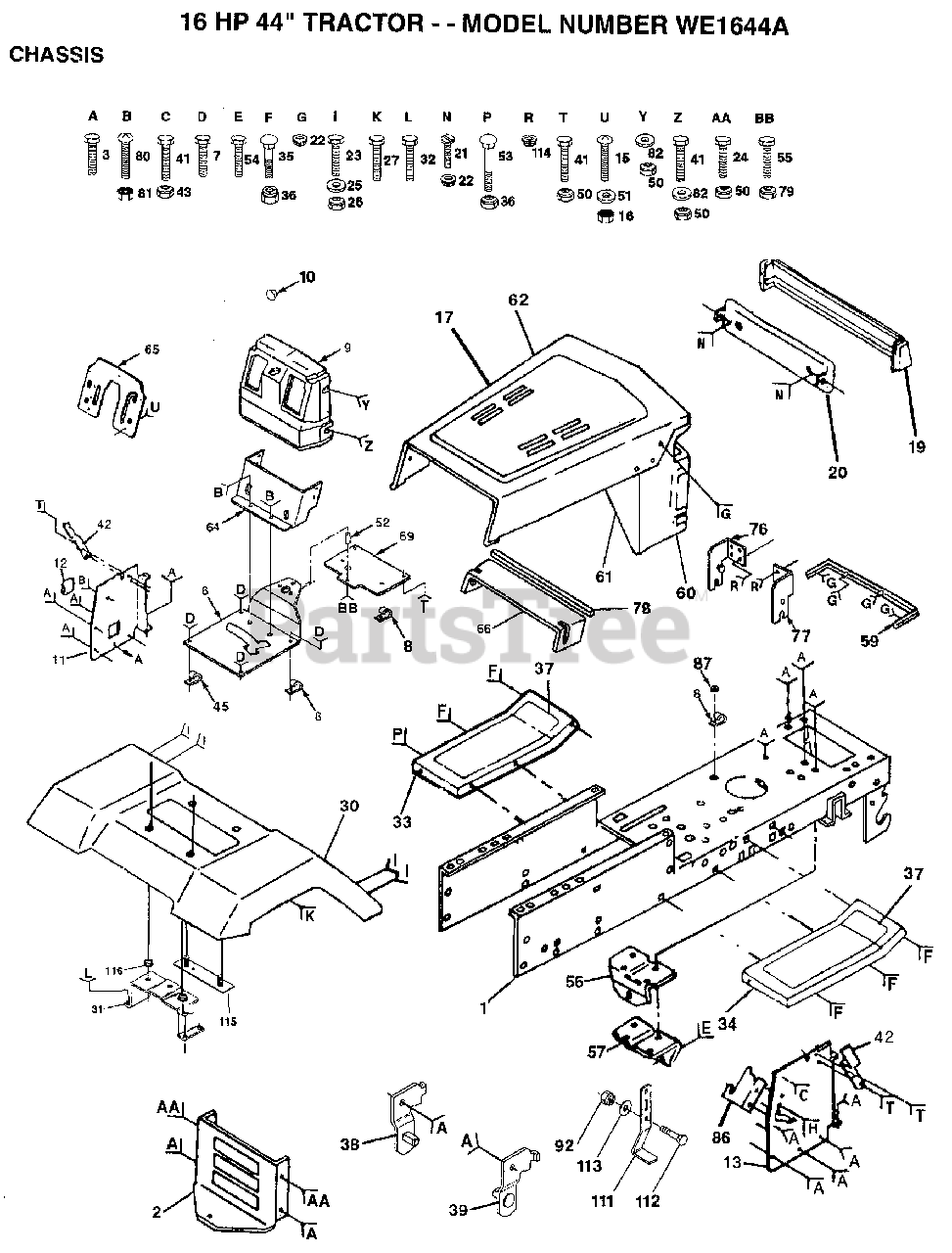

WE 1644 A - Weed Eater Lawn Tractor (1994) CHASSIS Parts Diagram

Lawn Tractor

CHASSIS Parts Diagram

  • Title
1

Electrolux/AYP 140341

SUB= 145501

$

$

Not available

2

Electrolux/AYP 123785X

DRAW BAR
(Superseded to 532145009)

$

$

Not available

3

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 127543

SUB= 127543X011

$

$

Not available

7

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 2751R

CLIP T
(Superseded to 532002751)

$

$

Not available

9

Electrolux/AYP 136696

SUB= 145203

$

$

Not available

10

Electrolux/AYP 8022J

PLUG-DASH T
(Superseded to 532125085)

$

$

Not available

11

Electrolux/AYP 138643

PANEL.DASH.RH

$

$

Not available

15

Electrolux/AYP 74180412

SCREW
(Superseded to 874180412)

$4.99

$

In Stock, only 4 left!

0

$2.99

$

Usually ships in 3-10 days

0

$

$

Not available

$

$

Not available

20

Electrolux/AYP 132257

SUB= 918132257
(Superseded to 132257X417)

$

$

Not available

21

Electrolux/AYP 124201X

SCREW SPECIAL
(Superseded to 583668901)

$2.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 108067X

PAL NUT LT
(Superseded to 532108067)

$

$

Not available

23

Electrolux/AYP 74780616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 74760612

SUB= 74780612
(Superseded to 874760612)

$4.99

$

In Stock, only 3 left!

0

25

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 3 left!

0

26

Electrolux/AYP 73800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 17490608

SCREW LT
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 140002X419

FENDER.RALLY.GRN.

$103.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 137713

BRACKET FENDER

$

$

Not available

32

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 105465X419

SUB= 145244X419

$

$

Not available

34

$5.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 72110606

BOLT
(Superseded to 872110606)

$4.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 73800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 133671

FOOTREST PAD
(Superseded to 532133671)

$10.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 139886

BRACKET ASM LH
(Superseded to 532139886)

$8.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 139887

BRACKET ASM RH
(Superseded to 532139887)

$

$

Not available

41

Electrolux/AYP 74760616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 139915

BRACKET.ASM.SUPT.

$

$

Not available

43

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 126471X

"CLIP,INSULATOR"
(Superseded to 532126471)

$4.99

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 73800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 19111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

52

Electrolux/AYP 121236X

SPACER
(Superseded to 532121236)

$

$

Not available

53

Murray 72140608

SUB= 72110608

$

$

Not available

54

Electrolux/AYP 17490508

SCREW LT
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 74760532

BOLT
(Superseded to 874760532)

$2.99

$

Usually ships in 3-10 days

0

56

Electrolux/AYP 105663X

SUPPORT-SADDL T
(Superseded to 532105663)

$

$

Not available

57

Electrolux/AYP 105664X

SUPPORT.SADDLE.FT
(Superseded to 532105664)

$9.49

$

Usually ships in 3-10 days

0

59

Electrolux/AYP 110350X419

"STRAP,GRILL"
(Superseded to 583659201)

$6.99

$

Usually ships in 3-10 days

0

60

Electrolux/AYP 140671

GRILLE ASM WELD

$

$

Not available

61

$

$

Not available

62

$

$

Not available

64

Electrolux/AYP 105518X

DASH-LOWER YT
(Superseded to 583646101)

$14.99

$

Usually ships in 3-10 days

0

65

Electrolux/AYP 140941X011

PLATE SLKSC YT/

$

$

Not available

66

Electrolux/AYP 124046X

"BAFFLE,HOOD"

$26.99

$

Usually ships in 3-10 days

0

69

Electrolux/AYP 140181

PLATE.SUPT.BATTER
(Superseded to 532140181)

$

$

Not available

76

Electrolux/AYP 137467

BRACKET.RH
(Superseded to 582962401)

$23.99

$

Usually ships in 3-10 days

0

77

Electrolux/AYP 137466

BRACKET.LH
(Superseded to 149036)

$

$

Not available

78

Electrolux/AYP 109458X

FOAM STRIP T
(Superseded to 532109458)

$

$

Not available

79

Electrolux/AYP 73800500

NUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

80

Electrolux/AYP 74180512

SCREW
(Superseded to 874180512)

$

$

Not available

$2.99

$

Usually ships in 3-10 days

0

82

Murray 19131614

WASHER
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

87

$

$

Not available

92

Electrolux/AYP 73800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

111

Electrolux/AYP 142992

STOP.OVER.CENTER
(Superseded to 532142992)

$6.49

$

Usually ships in 3-10 days

0

112

Electrolux/AYP 72240608

BOLT
(Superseded to 872240608)

$4.99

$

Usually ships in 3-10 days

0

113

Electrolux/AYP 19131612

WASHER GT
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

114

Electrolux/AYP 120579X

PAL NUT
(Superseded to 583663301)

$2.99

$

Usually ships in 3-10 days

0

115

Electrolux/AYP 140675

STRAP ASM FENDER
(Superseded to 532140675)

$6.99

$

Usually ships in 3-10 days

0

116

Electrolux/AYP 105531X

NUT-PUSH YT
(Superseded to 532105531)

$2.99

$

Usually ships in 3-10 days

0
