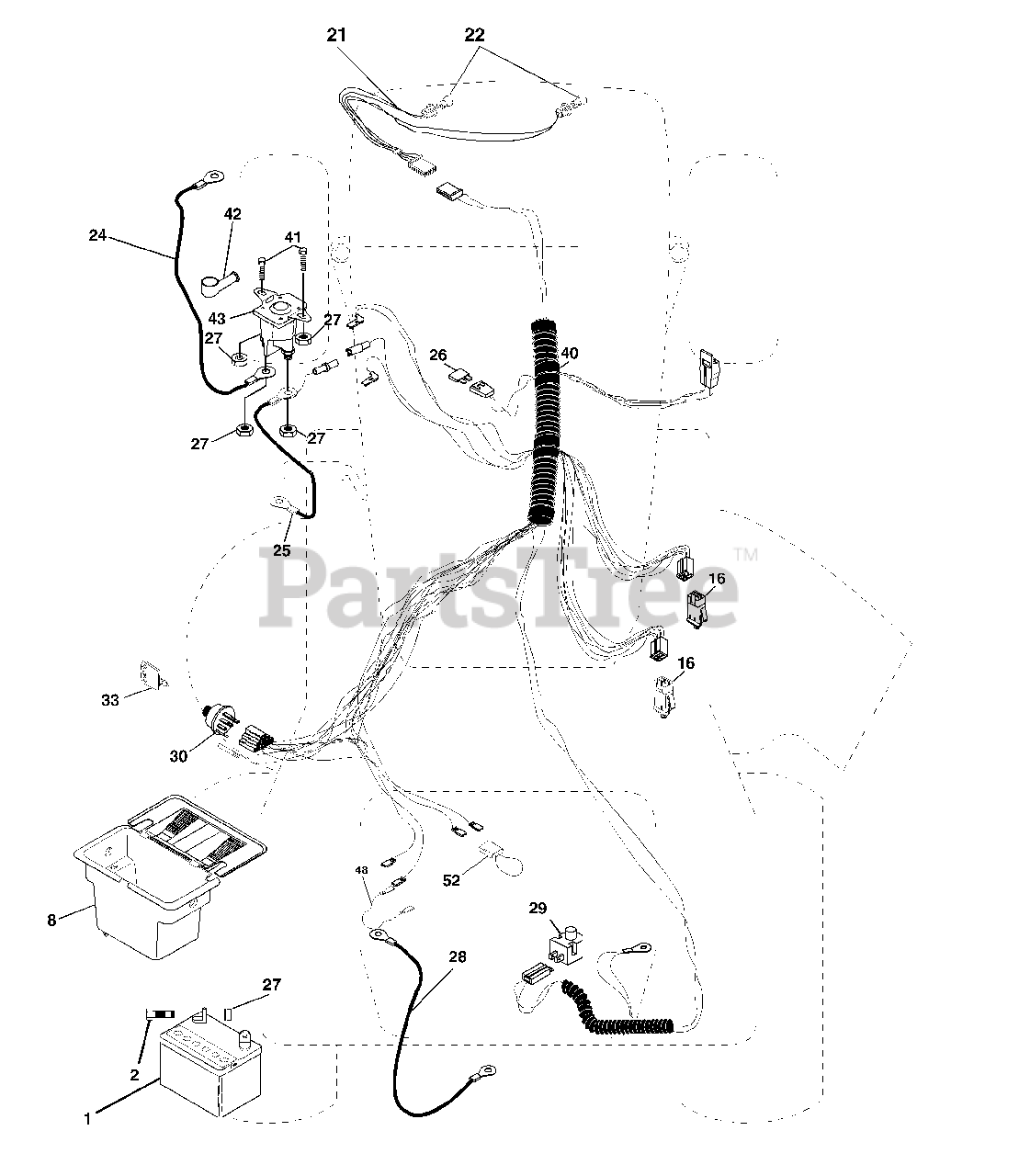

WE 14542 L - Weed Eater Lawn Tractor (2001) Electrical Parts Diagram

Lawn Tractor

Electrical Parts Diagram

  • Title
1

Electrolux/AYP 144925

Battery 12 Volt 25 Amp
(Superseded to 532123899)

$194.99

$

In Stock, only 1 left!

0

2

Electrolux/AYP 74760412

Bolt Hex Hd 1/4-20unc X 3/4
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

8

Electrolux/AYP 156417

Case Battery
(Superseded to 532404349)

$

$

Not available

16

Electrolux/AYP 153664

Switch Interlock Push -In
(Superseded to 532176138)

$22.99

$

In Stock, Qty 7

0

21

Electrolux/AYP 166181

Harness Asm Light W/4152J
(Superseded to 532166181)

$

$

Not available

22

Electrolux/AYP 4152J

Bulb Light #1156
(Superseded to 532004152)

$4.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 4799J

Cable Battery 6 Ga 11"red
(Superseded to 532004799)

$10.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 146147

Cable Battery 6 Ga w/16 wire,red
(Superseded to 532146147)

$34.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 175158

Fuse 20 AMP
(Superseded to 532175158)

$7.49

$

In Stock, only 2 left!

0

27

Murray 73510400

Nut Keps Hex 1/4-20 unc
(Superseded to 873640400)

$

$

Not available

28

Electrolux/AYP 4207J

Cable Ground 6 Ga 12" black
(Superseded to 532004207)

$8.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 121305X

Switch Plunger Nc Gray
(Superseded to 532421062)

$14.99

$

In Stock, only 2 left!

0

30

Electrolux/AYP 175566

Switch Ign
(Superseded to 532175566)

$26.99

$

In Stock, Qty 7

0

33

Electrolux/AYP 140401

Key Ign
(Superseded to 532140401)

$6.99

$

In Stock, Qty 9

0

40

Electrolux/AYP 170217

Harness Ign
(Superseded to 532179720)

$120.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 71110408

Bolt Blk Fin Hex 1/4-20 X 1/2
(Superseded to 871110408)

$3.99

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 131563

Cover Terminal Red
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

43

$

$

Not available

48

Electrolux/AYP 140844

Adaptor Ammeter Rectangular
(Superseded to 532140844)

$6.49

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 141940

Protection Wire Loop
(Superseded to 532141940)

$7.49

$

Usually ships in 3-10 days

0
