WE 14542 C - Weed Eater Lawn Tractor (1997) STEERING ASSEMBLY Parts Diagram

Lawn Tractor

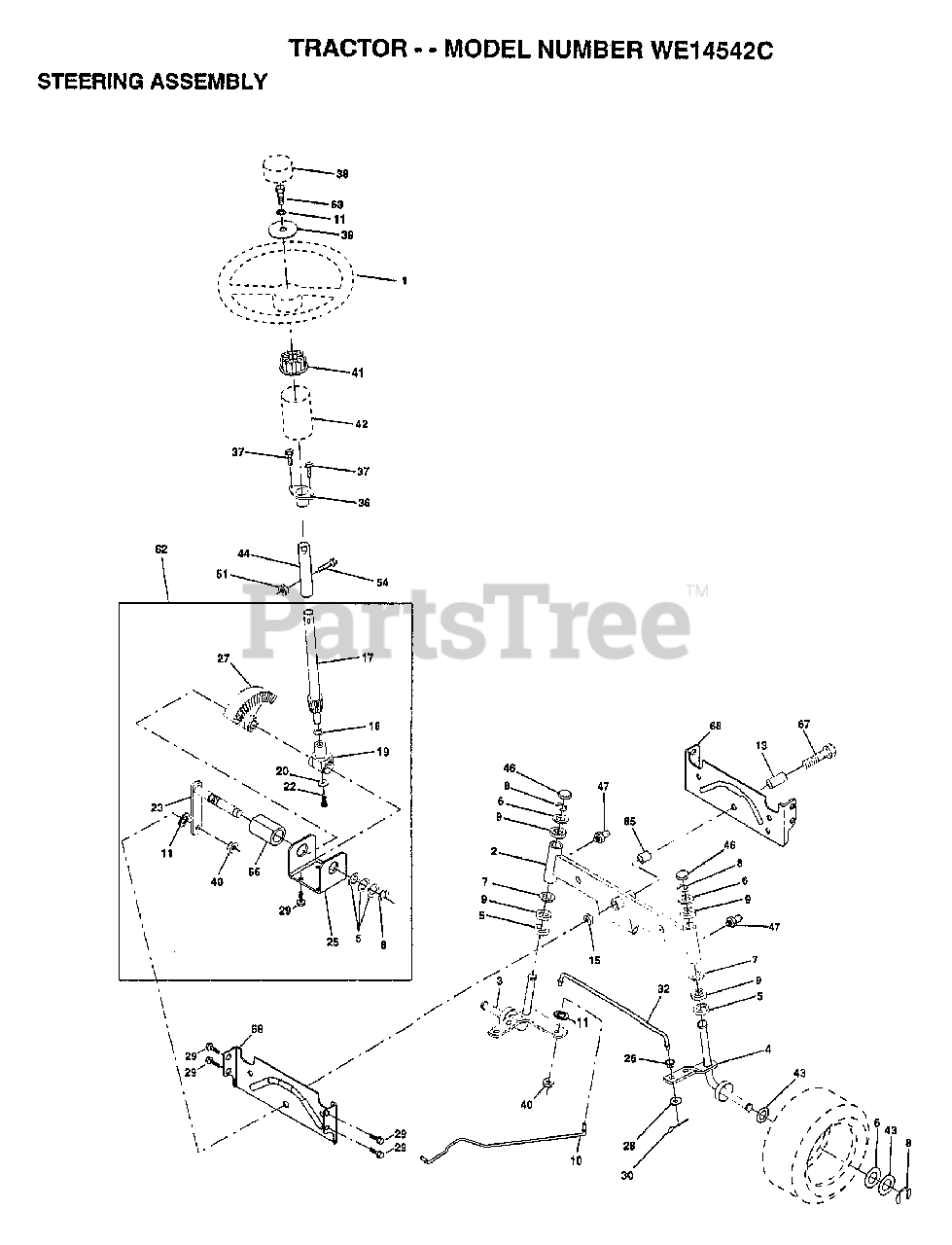

STEERING ASSEMBLY Parts Diagram

  • Title
1

Electrolux/AYP 139768

SUB= 150547

$

$

Not available

2

Electrolux/AYP 154427

AXLE ASM
(Superseded to 532418168)

$46.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 154422

SUB= 156483

$

$

Not available

4

Electrolux/AYP 154423

SUB= 157473

$

$

Not available

5

Electrolux/AYP 6266H

WASHER .T
(Superseded to 532006266)

$7.49

$

In Stock, Qty 11

0

6

Electrolux/AYP 121748X

WASHER
(Superseded to 532121748)

$4.99

$

In Stock, Qty 20+

0

7

Electrolux/AYP 19272016

WASHER
(Superseded to 819272016)

$6.49

$

In Stock, only 2 left!

0

8

Electrolux/AYP 12000029

RING
(Superseded to 812000029)

$4.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 3366R

COL. SRTG. BEAR.
(Superseded to 532003366)

$4.99

$

In Stock, Qty 20+

0

10

Electrolux/AYP 156438

DRAGLINK-STAMPED
(Superseded to 532156438)

$93.99

$

In Stock, only 1 left!

0

11

$

$

Not available

12

Electrolux/AYP 73610600

SUB= 7810H
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 154779

BEARING AXLE
(Superseded to 532154779)

$10.99

$

In Stock, only 1 left!

0

14

Electrolux/AYP 74011056

BOLT HEX 5/8-11
(Superseded to 874011056)

$4.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 73901000

"NUT-LOC,FLANGE LT"
(Superseded to 583612401)

$3.49

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 132624

AXLE PIN
(Superseded to 532132624)

$

$

Not available

17

Electrolux/AYP 156545

SHAFT ASSM STEERN
(Superseded to 582986601)

$74.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 57079

THRUST WASHER
(Superseded to 532057079)

$6.49

$

In Stock, Qty 11

0

19

Electrolux/AYP 124035X

SUPPORT.SHAFT
(Superseded to 532160395)

$10.99

$

In Stock, Qty 8

0

20

Electrolux/AYP 126684X

SUB= 532126684

$

$

Not available

21

Electrolux/AYP 71200410

SCREW HEX SOC1/4-
(Superseded to 532165857)

$6.49

$

In Stock, only 4 left!

0

23

Electrolux/AYP 127501

SUB= 918127501
(Superseded to 532156365)

$

$

Not available

24

Electrolux/AYP 109816X

NYLINER T
(Superseded to 532109816)

$6.49

$

In Stock, only 2 left!

0

25

Electrolux/AYP 154406

BRKT-STEERING
(Superseded to 532154406)

$8.99

$

In Stock, only 1 left!

0

26

Electrolux/AYP 126847X

BUSHING.DRAGLINK
(Superseded to 532126847)

$5.99

$

In Stock, only 2 left!

0

27

Electrolux/AYP 136874

GEAR SECTOR
(Superseded to 532136874)

$80.99

$

In Stock, only 1 left!

0

28

Electrolux/AYP 19131416

WASHER
(Superseded to 819131414)

$6.49

$

In Stock, only 2 left!

0

29

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

$

$

Not available

32

Electrolux/AYP 130465

TIE ROD
(Superseded to 532192757)

$34.99

$

In Stock, only 2 left!

0

36

Murray 155099

BUSHING.STEERING
(Superseded to 532155106)

$10.99

$

In Stock, Qty 13

0

37

Electrolux/AYP 152927

"SCREW-TT,10-32 FL"
(Superseded to 532152927)

$7.49

$

In Stock, only 2 left!

0

38

Electrolux/AYP 139769

CAP WHL STR SEARS
(Superseded to 582956001)

$6.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 19133808

WASHER T
(Superseded to 583789501)

$

$

Not available

40

$

$

Not available

41

Electrolux/AYP 104820X

ADAPTER-WHEEL LT
(Superseded to 532104820)

$17.99

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 124417X

BOOT STR SHAFT
(Superseded to 583669701)

$

$

Not available

43

Electrolux/AYP 121749X

WASHER
(Superseded to 532121749)

$3.49

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 121232X

CAP
(Superseded to 532121232)

$4.99

$

In Stock, Qty 9

0

47

Electrolux/AYP 6855M

ZERK M
(Superseded to 532183226)

$7.49

$

In Stock, only 2 left!

0

62

Electrolux/AYP 156593

STEERING ASM KIT
(Superseded to 532167903)

$157.99

$

Usually ships in 3-10 days

0

65

Electrolux/AYP 154780

SPACER AXLE
(Superseded to 532154780)

$9.99

$

Usually ships in 3-10 days

0

66

Electrolux/AYP 154404

"BEARING-ARM,PITMA"
(Superseded to 532154404)

$6.49

$

In Stock, only 3 left!

0

67

Electrolux/AYP 74781044

BOLT
(Superseded to 874781044)

$

$

Not available

68

Electrolux/AYP 154429

BRACE AXLE
(Superseded to 532154429)

$21.99

$

Usually ships in 3-10 days

0
