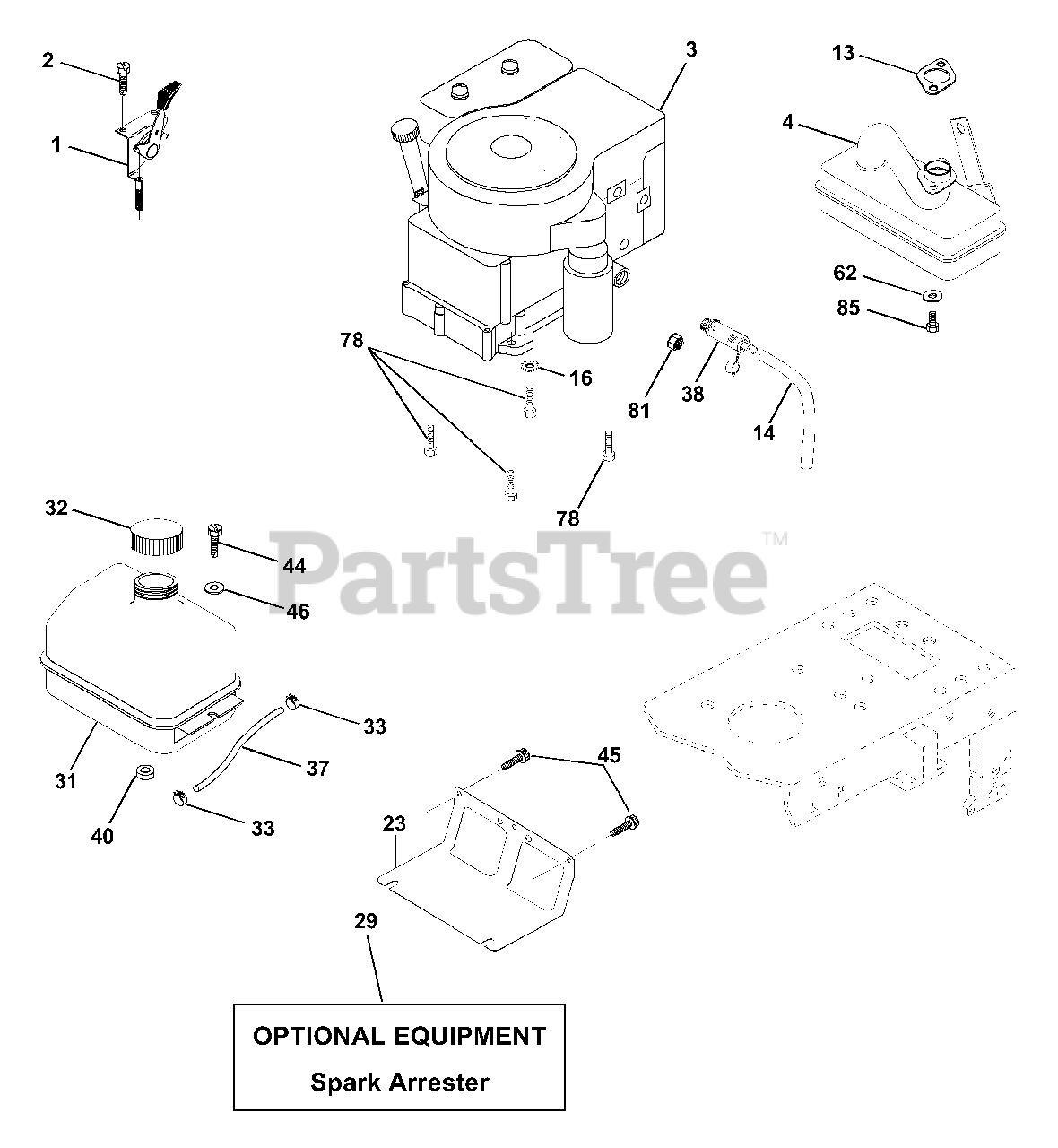

WE 13T38 D - Weed Eater Lawn Tractor (2001) Engine Parts Diagram

Lawn Tractor

Engine Parts Diagram

  • Title
1

Electrolux/AYP 170864

Control Th/ch Flag
(Superseded to 532170864)

$17.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 17720410

Screw Hex Thd Cut 1/4-20x5/8 T
(Superseded to 817720410)

$

$

Not available

3

Engine, Tec. OHV135

Note: (Order parts from engine manufacturer)

$

$

Not available

4

Electrolux/AYP 156700

Muffler Exhaust
(Superseded to 532156700)

$

$

Not available

13

Electrolux/AYP 165291

Gasket Eng 1 313 Id Tin Plated
(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 148456

Tube Drain Oil Easy
(Superseded to 532148456)

$6.99

$

In Stock, Qty 6

0

16

Electrolux/AYP 11050600

Washer Lock Ext Tooth 3/8
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 169837

Shield BRN/DBR Guard
(Superseded to 532169837)

$10.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 137180

Kit Spark Arrestor (Flat Scrn)
(Superseded to 532137180)

$

$

Not available

31

Electrolux/AYP 109202X

Tank Fuel Front
(Superseded to 532184900)

$45.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 140527

Cap Asm Fuel
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 123487X

Clamp Hose
(Superseded to 532123487)

$7.49

$

In Stock, only 1 left!

0

37

Electrolux/AYP 137040

Line Fuel 20"
(Superseded to 532137040)

$6.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 148315

Plug Drain Oil Easy
(Superseded to 532428287)

$18.99

$

In Stock, Qty 5

0

40

Murray 124028X

Bushing Snap Nyl Blk Fuel Line

$

$

Not available

44

Electrolux/AYP 17670412

Screw Thdrol 1/4-20 x 3/4
(Superseded to 817670412)

$6.49

$

In Stock, only 2 left!

0

45

Electrolux/AYP 17000612

Screw Hex Wsh Thdrol 3/8-16
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

46

Electrolux/AYP 19091416

Washer 9/32 X 7/8 X 16 Ga
(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 10040500

Washer Lock Hvy Hlcl Spr
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

78

Electrolux/AYP 17060620

Screw 3/8-16 x 1-1/4
(Superseded to 817060620)

$7.49

$

In Stock, Qty 11

0

81

Murray 73510400

Nut Keps Hex 1/4-20 Unc
(Superseded to 873640400)

$

$

Not available

85

Electrolux/AYP 123528X

Bolt Hex HD. Phillips
(Superseded to 583667801)

$3.99

$

Usually ships in 3-10 days

0
