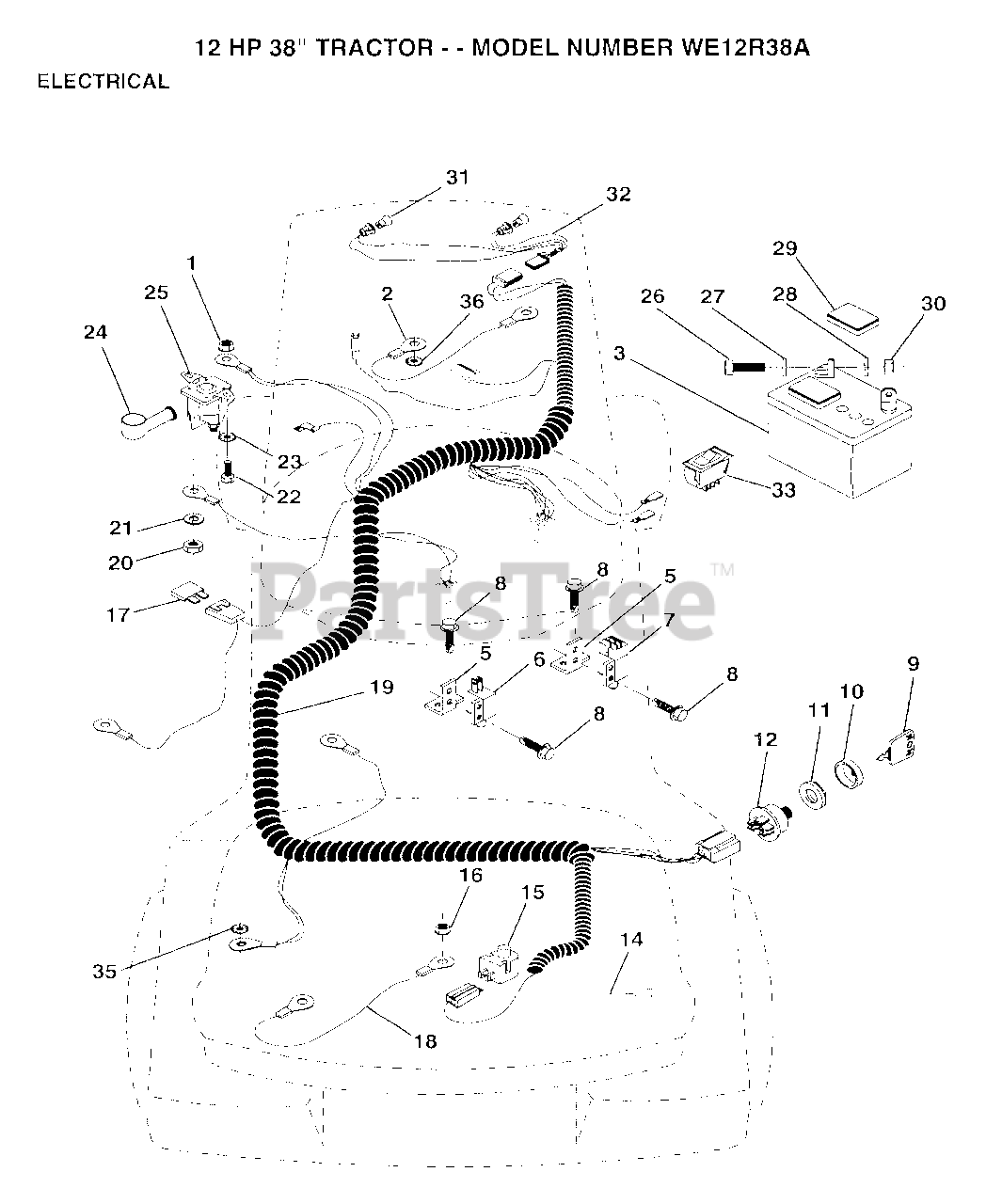

WE 12R38 A - Weed Eater Lawn Tractor (1993) ELECTRICAL Parts Diagram

Lawn Tractor

ELECTRICAL Parts Diagram

  • Title
1

Murray 73510400

NUT
(Superseded to 873640400)

$

$

Not available

2

Electrolux/AYP 108423X

CABLE ASM.
(Superseded to 532108423)

$8.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 133909

SUB= 123899X
(Superseded to 532133909)

$

$

Not available

5

Electrolux/AYP 108236X

BRACKET LT
(Superseded to 532108236)

$2.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 104445X

SWITCH-INTER. GT
(Superseded to 532104445)

$17.99

$

In Stock, only 1 left!

0

7

Electrolux/AYP 109553X

SWITCH INTERLOCKT
(Superseded to 539101080)

$17.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 17021008

SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

9

Electrolux/AYP 122147X

KEY
(Superseded to 532122147)

$

$

Not available

10

Electrolux/AYP 123620X

SUB= 141226
(Superseded to 532141226)

$5.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 124211X

NUT IGNITION
(Superseded to 532124211)

$5.99

$

In Stock, only 1 left!

0

12

Electrolux/AYP 4406R

SUB= STD365402

$

$

Not available

14

Electrolux/AYP 7192J

WIRE TIE
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 121305X

SWITCH SEAT
(Superseded to 532421062)

$14.99

$

In Stock, only 1 left!

0

$2.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 108824X

FUSE HYT
(Superseded to 532108824)

$6.49

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 128353

CABLE ASSY
(Superseded to 532128353)

$3.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 137953

HARNESS.IGN

$72.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 73350400

NUT
(Superseded to 873350400)

$

$

Not available

21

Electrolux/AYP 10090400

SUB= 10040400

$

$

Not available

22

Electrolux/AYP 74780408

BOLT
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

23

$2.49

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 131563

SUB= 154336
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

25

Electrolux/AYP 138406

SUB= 146154
(Superseded to 532138406)

$24.99

$

In Stock, only 2 left!

0

26

Electrolux/AYP 74760412

BOLT LT
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

27

Electrolux/AYP 19091016

WASHER
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

29

Electrolux/AYP 121264X

"CAP,BATTERY "
(Superseded to 532121264)

$

$

Not available

30

Electrolux/AYP 73220400

SUB= 50675
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

31

Electrolux/AYP 7662J

SUB= 4152J
(Superseded to 532004152)

$4.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 136849

SUB= 136850
(Superseded to 532136849)

$

$

Not available

33

Electrolux/AYP 110712X

SWITCH LT
(Superseded to 532110712)

$9.49

$

In Stock, only 2 left!

0

35

Electrolux/AYP 11050600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 11150400

LOCKWASHER
(Superseded to 811150400)

$2.99

$

Usually ships in 3-10 days

0
