WE 12536 A - Weed Eater Lawn Tractor (1991) MOWER DECK Parts Diagram

Lawn Tractor

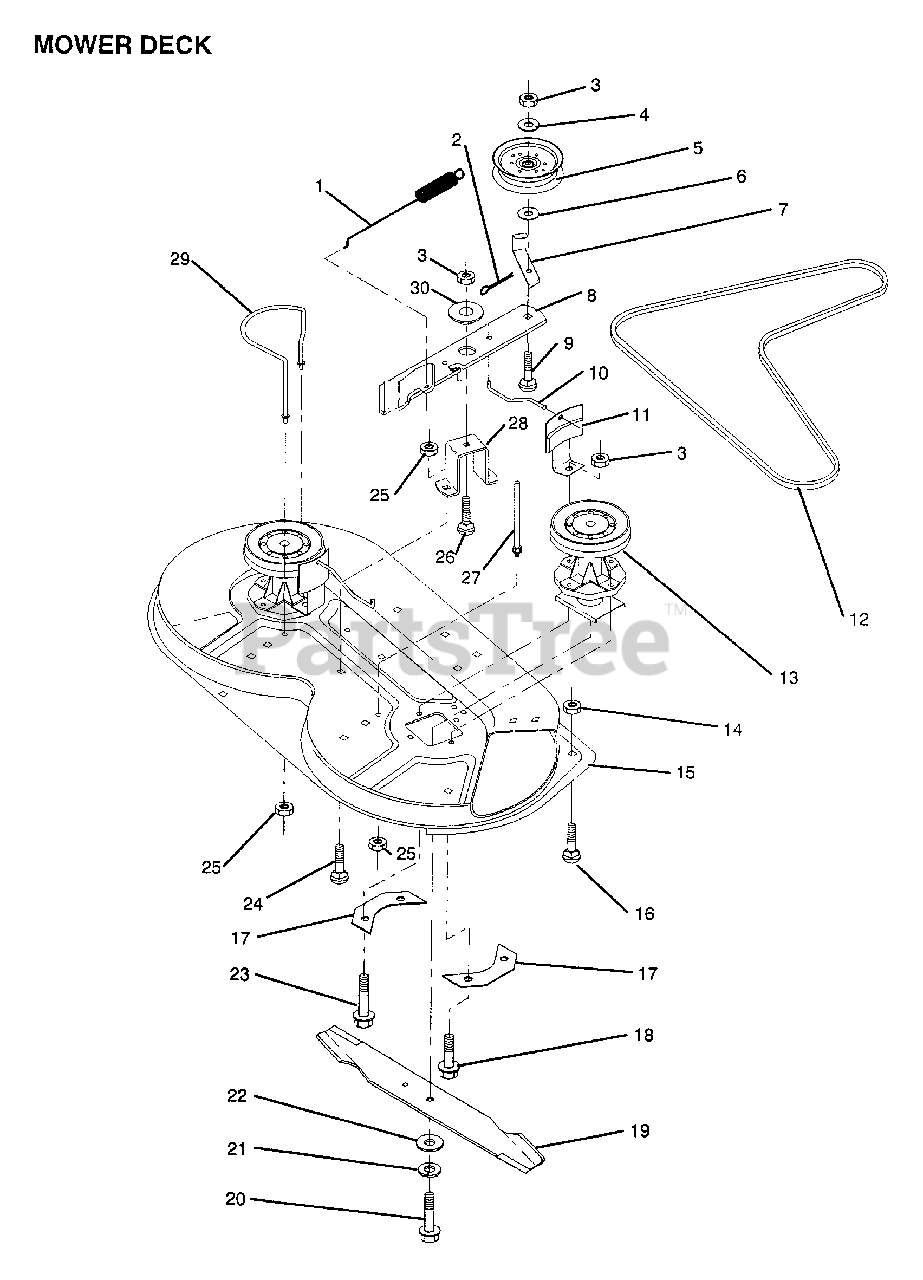

MOWER DECK Parts Diagram

  • Title
1

$

$

Not available

2

Electrolux/AYP 76020312

SUB= 3145
(Superseded to 539003145)

$133.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 19131412

WASHER
(Superseded to 819131412)

$

$

Not available

5

Electrolux/AYP 121316X

PULLEY IDLER
(Superseded to 532121316)

$51.99

$

In Stock, only 4 left!

0

6

Electrolux/AYP 19132203

WASHER GT
(Superseded to 819132203)

$6.49

$

In Stock, only 3 left!

0

7

$

$

Not available

8

Electrolux/AYP 123702X

IDLER ARM ASS'Y
(Superseded to 532123702)

$

$

Not available

9

Electrolux/AYP 72110618

BOLT CARRIAGE
(Superseded to 872110618)

$6.49

$

In Stock, only 2 left!

0

10

Electrolux/AYP 122049X

ROD BRAKE
(Superseded to 532122049)

$

$

Not available

11

Electrolux/AYP 106578X

BRAKE LT
(Superseded to 532106578)

$46.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 124293X

BELT.MOWER.79.75
(Superseded to 532124293)

$46.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 124208X

MANDREL ASS'Y
(Superseded to 532124208)

$193.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 73680400

SUB= 73690400
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

15

$

$

Not available

16

Electrolux/AYP 72140404

BOLT
(Superseded to 872140404)

$6.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 100668L

SUPPORT PLATE LT
(Superseded to 532100668)

$

$

Not available

18

Electrolux/AYP 17490614

SCREW
(Superseded to 817490614)

$

$

Not available

19

Electrolux/AYP 126338X

"BLADE.36""HIGH LIF"
(Superseded to 532143969)

$

$

Not available

20

Electrolux/AYP 74610624

BOLT.3/8-24X1-1/2
(Superseded to 874610624)

$6.49

$

In Stock, only 1 left!

0

21

Electrolux/AYP 10030600

SUB= 10040600
(Superseded to 810030600)

$

$

Not available

22

Electrolux/AYP 19132012

WASHER
(Superseded to 819132012)

$1.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 17490620

SCREW
(Superseded to 817060620)

$7.49

$

In Stock, Qty 11

0

24

Electrolux/AYP 72140505

BOLT
(Superseded to 872140505)

$3.99

$

In Stock, Qty 20+

0

25

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

26

Electrolux/AYP 72110608

BOLT D
(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 123439X

"GUIDE,REAR BEL RH"
(Superseded to 532123439)

$

$

Not available

28

Electrolux/AYP 122051X

"SUPT,IDLER ARM"
(Superseded to 532122051)

$5.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 123673X

GUIDE BELT LH
(Superseded to 532123673)

$8.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 122052X

SPACER RETAINER
(Superseded to 532165723)

$6.99

$

In Stock, only 2 left!

0
