WE 12536 A - Weed Eater Lawn Tractor (1991) ENGINE AND THROTTLE Parts Diagram

Lawn Tractor

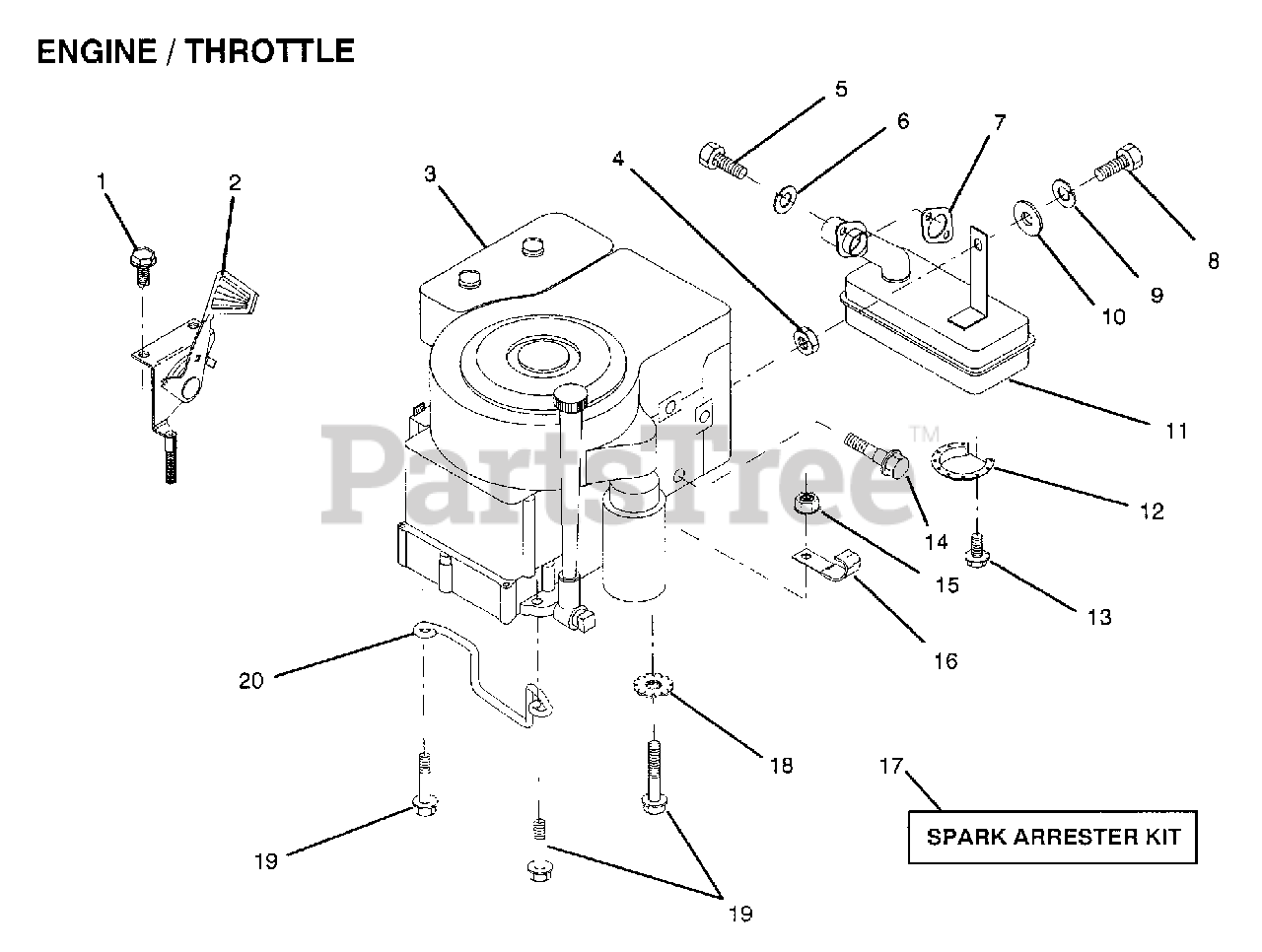

ENGINE AND THROTTLE Parts Diagram

  • Title
1

Electrolux/AYP 17720408

SCREW
(Superseded to 817240408)

$7.49

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 129447

CONT.THROTTLE

$11.99

$

Usually ships in 3-10 days

0

$

$

Not available

4

Electrolux/AYP 73220500

NUT.HEX.5/16-18
(Superseded to 873220500)

$6.49

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 71070512

SCREW
(Superseded to 596134201)

$3.99

$

In Stock, Qty 5

0

6

Electrolux/AYP 10040500

LOCKWASHER
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

7

$

$

Not available

8

Electrolux/AYP 74760416

BOLT
(Superseded to 874780416)

$6.49

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

$

$

Not available

11

Electrolux/AYP 124097X

MUFFLER
(Superseded to 532124097)

$

$

Not available

12

Electrolux/AYP 101326L

DEFLECTOR.222573
(Superseded to 532101326)

$

$

Not available

13

Electrolux/AYP 17030808

SUB= 17030814
(Superseded to 817030808)

$

$

Not available

14

Electrolux/AYP 7901J

SHOULDER BOLT T
(Superseded to 532007901)

$4.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 73510600

NUT
(Superseded to 873510600)

$6.49

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 2751R

CLIP T
(Superseded to 532002751)

$

$

Not available

17

Electrolux/AYP 121851X

SUB= 532137180

$

$

Not available

18

Electrolux/AYP 11050600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 17490624

SCREW LT
(Superseded to 817060624)

$7.49

$

In Stock, only 1 left!

0

20

Electrolux/AYP 126636X

"KEEPER,DR BELT GR"
(Superseded to 532126636)

$8.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 129057

SUB= 532129057

$

$

Not available
