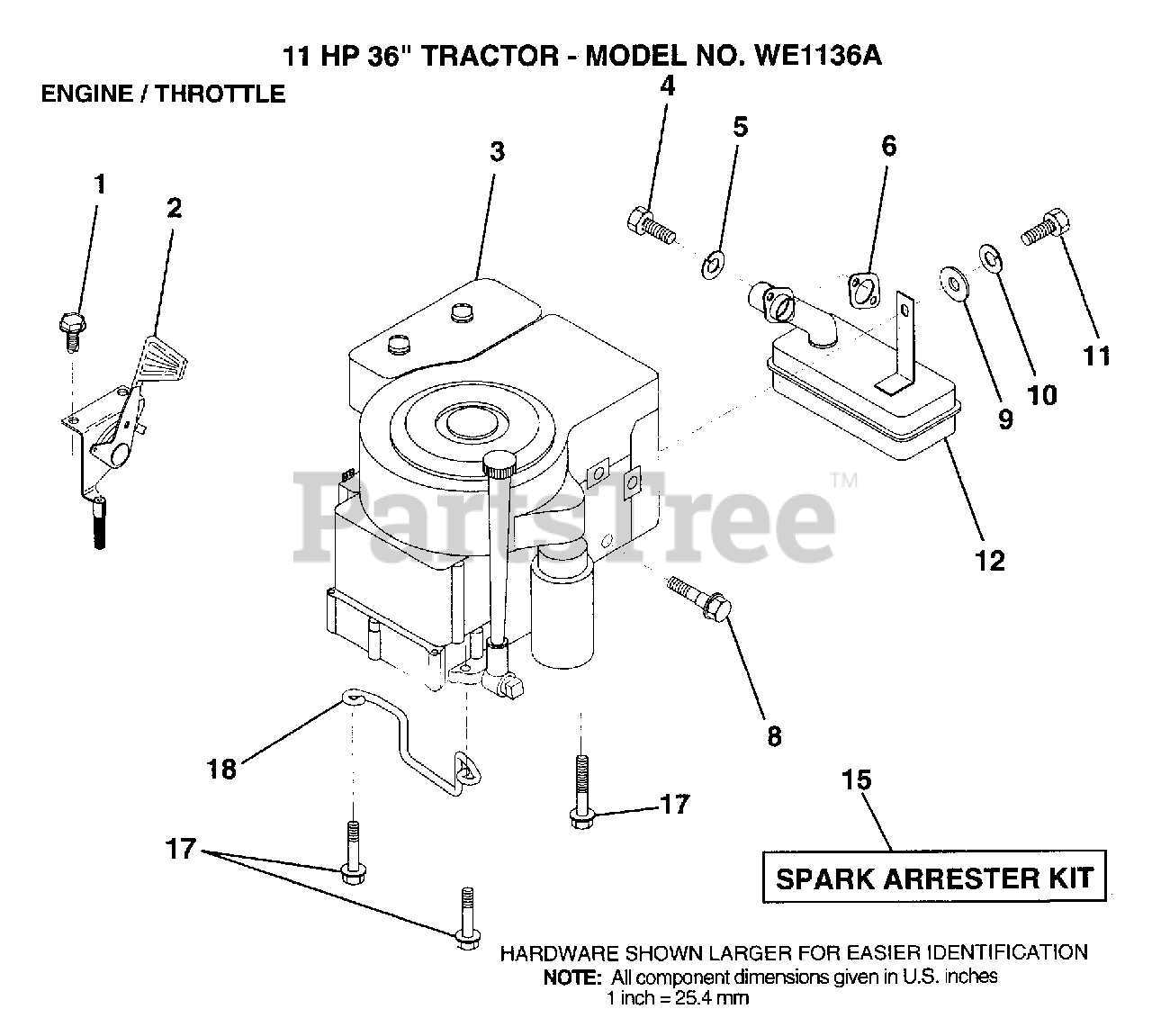

WE 1136 A - Weed Eater Lawn Tractor ENGINE AND THROTTLE Parts Diagram

Lawn Tractor

ENGINE AND THROTTLE Parts Diagram

  • Title
1

Electrolux/AYP 17720408

SCREW
(Superseded to 817240408)

$7.49

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 132521

THROTTLE CONTROL
(Superseded to 532132752)

$

$

Not available

3

Electrolux/AYP 258707

ENGINE B&S 11HP

$

$

Not available

4

Electrolux/AYP 71070512

SCREW
(Superseded to 596134201)

$3.99

$

In Stock, Qty 13

0

5

Electrolux/AYP 10040500

LOCKWASHER
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

6

$

$

Not available

8

Electrolux/AYP 121094X

BOLT T
(Superseded to 532121094)

$2.99

$

Usually ships in 3-10 days

0

$

$

Not available

10

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

11

Electrolux/AYP 74760416

BOLT
(Superseded to 874780416)

$6.49

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 137437

MUFFLER
(Superseded to 532137437)

$242.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 137180

SUB= 532137180
(Superseded to 532137180)

$

$

Not available

17

Electrolux/AYP 17490624

SCREW LT
(Superseded to 817060624)

$7.49

$

In Stock, only 1 left!

0

18

Electrolux/AYP 126636X

"KEEPER,DR BELT GR"
(Superseded to 532126636)

$8.99

$

Usually ships in 3-10 days

0
