WDP30 XT A (WZCA) - Honda Water Pump, Made in Japan (SN: WZCA-6000001 - WZCA-6100000) GEAR BOX (WDP20X/XT, WDP30X/XK1/XT) Parts Diagram

Water Pump, Made in Japan

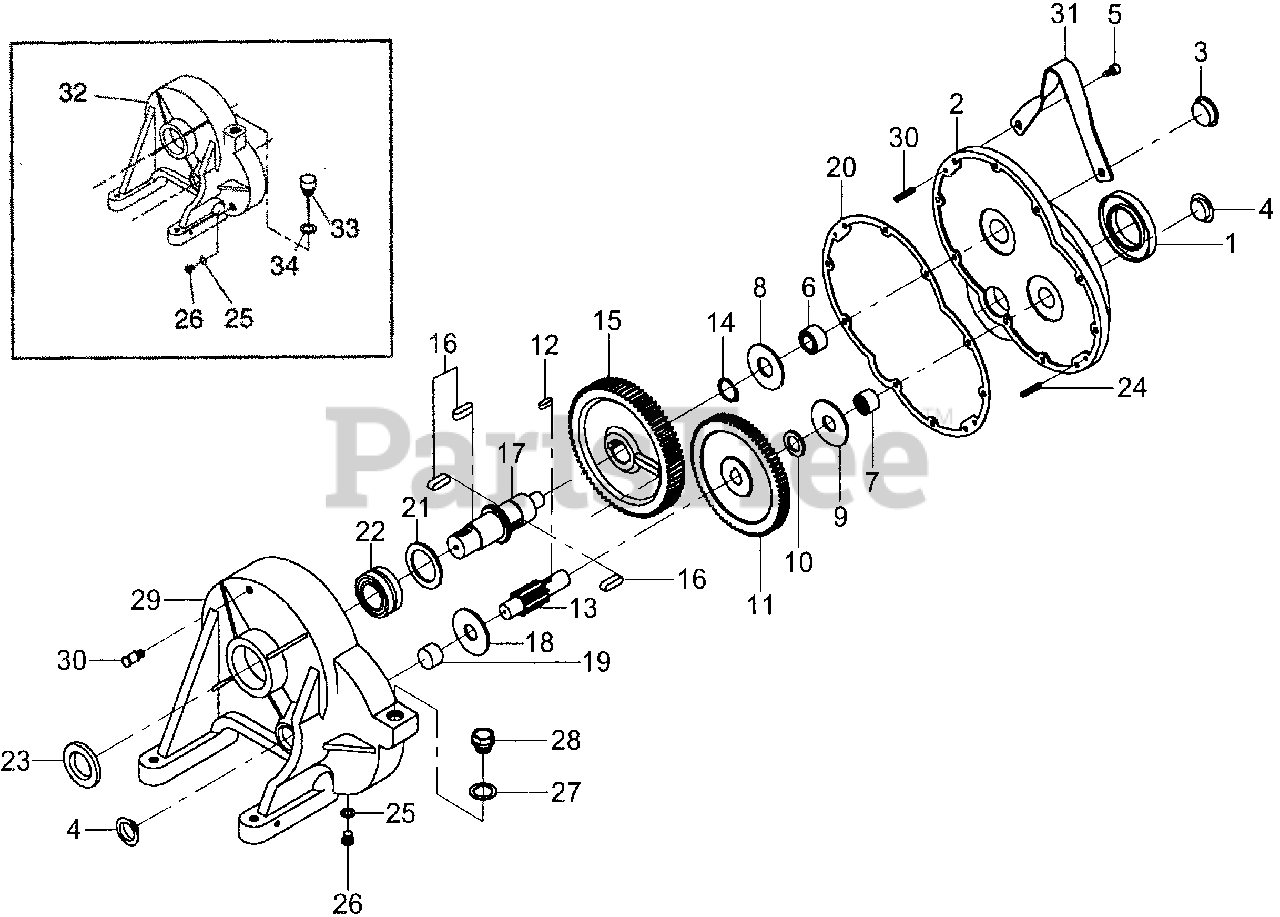

GEAR BOX (WDP20X/XT, WDP30X/XK1/XT) Parts Diagram

  • Title

1

Honda Q14-0000-006

SEAL (48X80X10)

$34.99

$

Usually ships in 3-6 days

0

2

Honda Q14-0000-007A

COVER (ALUMINUM)

Note: Use up to Frame SN 6000824.

$686.99

$

Usually ships in 3-6 days

0

2

Honda Q14-007L14

COVER, GEAR BOX

Note: Use from Frame SN 6000825.

$576.99

$

Usually ships in 3-6 days

0

3

Honda Q14-0000-008

PLUG

$

$

Not available

4

Honda Q14-0000-009

PLUG (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda Q14-0000-010

SCREW, ALLEN (6X1.0X25)

$1.49

$

Usually ships in 3-6 days

0

6

Honda Q14-0000-011

BEARING

$54.99

$

Usually ships in 3-6 days

0

7

Honda M55-TLAN1816

BEARING, NEEDLE

$34.99

$

Usually ships in 3-6 days

0

8

Honda Q14-0000-013

WASHER, FIBER

$

$

Not available

9

Honda Q14-0000-014

WASHER, FIBER

$17.99

$

Usually ships in 3-6 days

0

10

Honda Q14-0000-015

SHIM

$21.99

$

Usually ships in 3-6 days

0

11

Honda Q14-0000-016A

GEAR

$

$

Not available

11

Honda Q14-0000-016C

GEAR

$119.99

$

Usually ships in 3-6 days

0

12

Honda Q14-0000-017

KEY

$3.49

$

Usually ships in 3-6 days

0

13

Honda Q14-0000-018

SHAFT

$132.99

$

Usually ships in 3-6 days

0

14

Honda Q14-0000-019

CLIP

$3.99

$

Usually ships in 3-6 days

0

15

Honda Q14-0000-020C

GEAR

$371.99

$

Usually ships in 3-6 days

0

16

Honda Q14-0000-022

KEY

$1.49

$

Usually ships in 3-6 days

0

17

Honda Q14-0000-023

SHAFT

$132.99

$

Usually ships in 3-6 days

0

18

Honda Q14-0000-024

WASHER

$

$

Not available

19

Honda Q14-0000-025

BEARING

$

$

Not available

20

Honda Q14-0000-026

GASKET

Note: Use up to Frame SN 6000824.

$4.49

$

Usually ships in 3-6 days

0

20

Honda Q14-026L

GASKET, GEAR BOX

Note: Use from Frame SN 6000825.

$11.99

$

Usually ships in 3-6 days

0

21

Honda Q14-0000-027

WASHER

$17.99

$

Usually ships in 3-6 days

0

22

Honda Q14-0000-028

BEARING

$393.99

$

Usually ships in 3-6 days

0

23

Honda Q14-0000-029

SEAL

$16.99

$

Usually ships in 3-6 days

0

24

Honda Q14-0000-030

PIN

$2.99

$

Usually ships in 3-6 days

0

25

Honda Q14-0000-031

WASHER

$2.99

$

Usually ships in 3-6 days

0

26

Honda Q14-0000-032

PLUG

$14.99

$

Usually ships in 3-6 days

0

27

Honda Q14-0000-033

WASHER

Note: Use up to Frame SN 6000824.

$2.99

$

Usually ships in 3-6 days

0

28

Honda Q14-0000-034

PLUG

Note: Use up to Frame SN 6000824.

$7.49

$

Usually ships in 3-6 days

0

29

Honda Q14-0000-036A

CASE (ALUMINUM)

Note: Use up to Frame SN 6000824.

$670.99

$

Usually ships in 3-6 days

0

30

Honda Q14-0000-038

VALVE

$8.49

$

Usually ships in 3-6 days

0

31

Honda Q14-0000-206

BAIL, LIFTING *NH1* (BLACK)

$69.99

$

Usually ships in 3-6 days

0

32

Honda Q14-036L

CASE, GEAR BOX

Note: Use from Frame SN 6000825.

$662.99

$

Usually ships in 3-6 days

0

33

Honda Q14-034L55

DIPSTICK, OIL W/DISCHARGE VALVE

Note: Use from Frame SN 6000825.

$49.99

$

Usually ships in 3-6 days

0

34

Honda Q14-033L05332

GASKET, DIPSTICK

Note: Use from Frame SN 6000825.

$3.99

$

Usually ships in 3-6 days

0
