WDP30 XK2 AT (WZCA) - Honda Water Pump, Made in Japan (SN: WZCA-6200001 - WZCA-9999999) GEAR BOX (WDP30XK2) Parts Diagram

Water Pump, Made in Japan

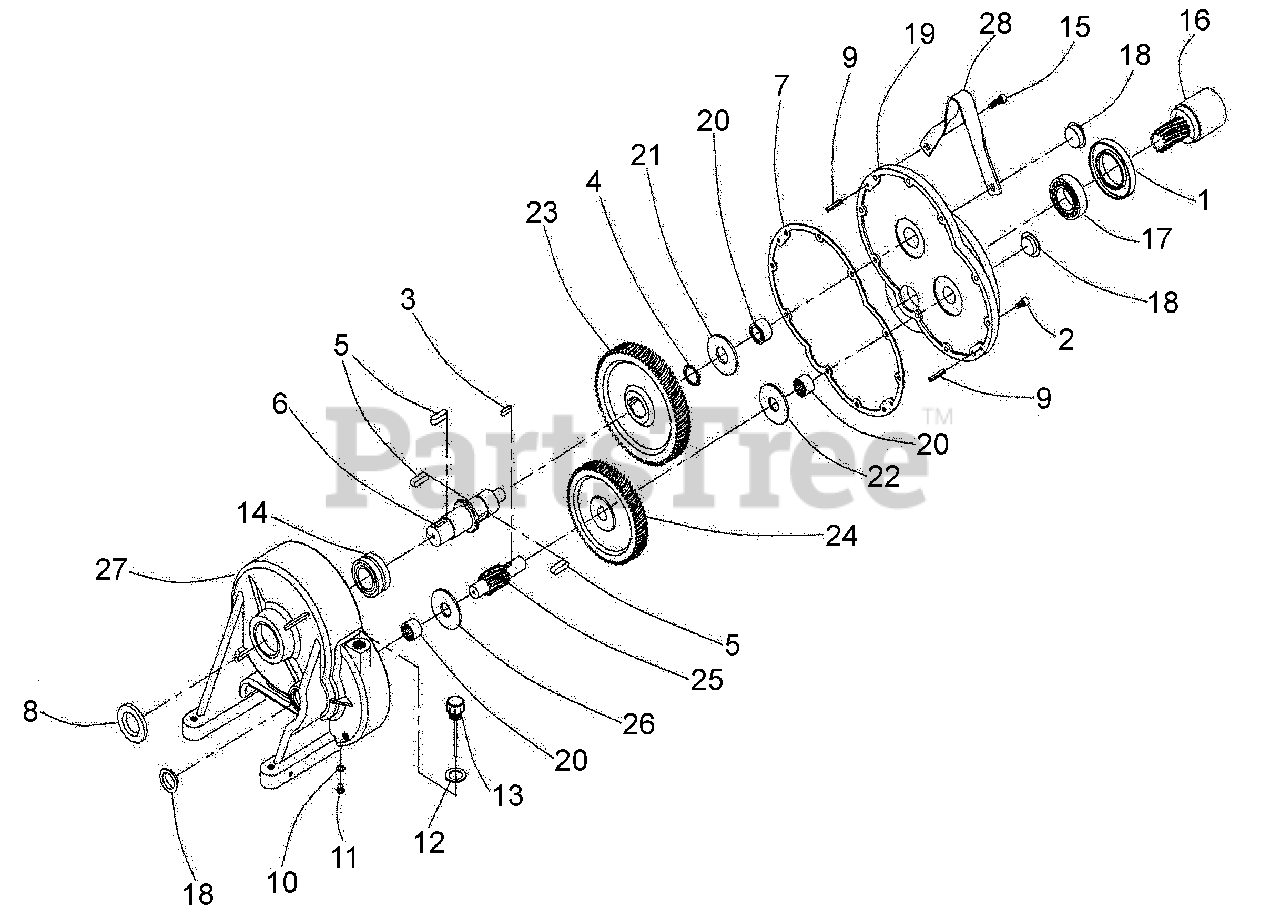

GEAR BOX (WDP30XK2) Parts Diagram

  • Title

1

Honda Q14-0000-006

SEAL (48X80X10)

$35.99

$

Usually ships in 3-6 days

0

2

Honda H62-0001-104

AHCS (6M-1.0-25M)

$1.49

$

Usually ships in 3-6 days

0

3

Honda Q14-0000-017

KEY

$3.99

$

Usually ships in 3-6 days

0

4

Honda Q14-0000-019

CLIP

$3.99

$

Usually ships in 3-6 days

0

5

Honda Q14-0000-022

KEY

$1.49

$

Usually ships in 3-6 days

0

6

Honda Q14-0000-023

SHAFT

$137.99

$

Usually ships in 3-6 days

0

7

Honda Q14-026L

GASKET, GEAR BOX

$11.99

$

Usually ships in 3-6 days

0

8

Honda Q14-0000-029

SEAL

$16.99

$

Usually ships in 3-6 days

0

9

Honda Q14-0000-030

PIN

$2.99

$

Usually ships in 3-6 days

0

10

Honda Q14-0000-031

WASHER

$2.99

$

Usually ships in 3-6 days

0

11

Honda Q14-0000-032

PLUG

$14.99

$

Usually ships in 3-6 days

0

12

Honda Q14-033L05332

GASKET, DIPSTICK

$3.99

$

Usually ships in 3-6 days

0

13

Honda Q14-034L55

DIPSTICK, OIL W/DISCHARGE VALVE

$51.99

$

Usually ships in 3-6 days

0

14

Honda M55-NKIS-30

BEARING, NEEDLE

$407.99

$

Usually ships in 3-6 days

0

15

Honda Q14-0001-143

AHCS (6M-1.0)

$4.49

$

Usually ships in 3-6 days

0

16

Honda Q14-0000-192B

PINION (HELICAL 1:43)

$428.99

$

Usually ships in 3-6 days

0

17

Honda Q14-0001-193

BEARING, PINION

$40.99

$

Usually ships in 3-6 days

0

18

Honda Q14-0001-194

PLUG

$48.99

$

Usually ships in 3-6 days

0

19

Honda Q14-0001-195

COVER, GEAR BOX (PINION SIDE)

$603.99

$

Usually ships in 3-6 days

0

20

Honda M55-TLAN1816

BEARING, NEEDLE

$35.99

$

Usually ships in 3-6 days

0

21

Honda Q14-0001-197

WASHER, FIBER

$24.99

$

Usually ships in 3-6 days

0

22

Honda Q14-0001-198

WASHER, FIBER

$24.99

$

Usually ships in 3-6 days

0

23

Honda Q14-0001-199

GEAR, DRIVEN (1:43 HELICAL)

$216.99

$

Usually ships in 3-6 days

0

24

Honda Q14-0001-200

GEAR, DRIVE (1:43 HELICAL) (PINION)

$253.99

$

Usually ships in 3-6 days

0

25

Honda Q14-0001-201

SHAFT (1:43 W/HELICAL TEETH)

$174.99

$

Usually ships in 3-6 days

0

26

Honda Q14-0001-202

WASHER, FIBER

$24.99

$

Usually ships in 3-6 days

0

27

Honda Q14-0001-204

CASE, GEAR BOX ALUMINUM (2D/3D)

$546.99

$

Usually ships in 3-6 days

0

28

Honda Q14-0000-206

BAIL, LIFTING *NH1* (BLACK)

$72.99

$

Usually ships in 3-6 days

0
