WDP30 XK2 AT (WZCA) - Honda Water Pump, Made in Japan (SN: WZCA-6200001 - WZCA-9999999) CASING AND COMPONENTS (WDP30XK2) Parts Diagram

Water Pump, Made in Japan

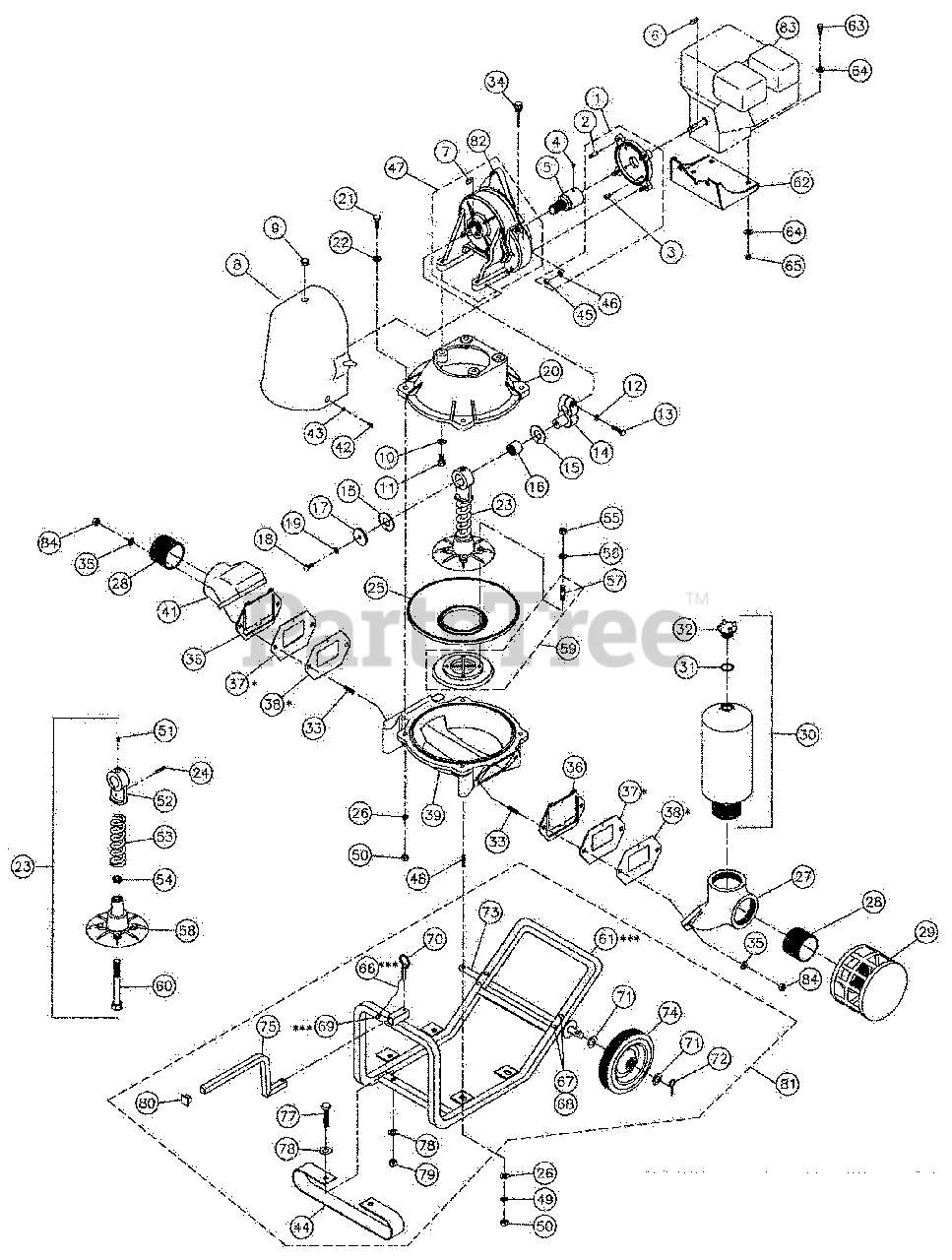

CASING AND COMPONENTS (WDP30XK2) Parts Diagram

  • Title

1

Honda Q14-0000-001A

ADAPTER, ENGINE

$177.99

$

Usually ships in 3-6 days

0

2

Honda Q11-0000-332

STUD

$313.99

$

Usually ships in 3-6 days

0

3

Honda H62-0001-108

SCREW, ALLEN

$0.99

$

Usually ships in 3-6 days

0

4

Honda H62-0000-004

SCREW SET (8MX1.25X10)

$3.49

$

Usually ships in 3-6 days

0

5

Honda Q14-0000-192B

PINION (HELICAL 1:43)

$413.99

$

Usually ships in 3-6 days

0

6

Honda M51-0KEY-187

KEY STOCK (3/16X1)

$17.99

$

Usually ships in 3-6 days

0

7

Honda Q14-0000-022

KEY

$1.49

$

Usually ships in 3-6 days

0

8

Honda Q14-0000-035H

COVER *R1* (RED)

$189.99

$

Usually ships in 3-6 days

0

9

Honda Q14-0000-037

PLUG, COVER (#35)

$2.99

$

Usually ships in 3-6 days

0

10

Honda 94102-12800

SEE PART DETAILS - PRI; WASHER, PLAIN (12MM)

$

$

Not available

11

Honda H62-0001-067

SEE PART DETAILS - PRI; BOLT, HEX.

$3.99

$

Usually ships in 3-6 days

0

12

Honda 94111-10800

WASHER, SPRING (10MM)

$1.99

$

In Stock, only 1 left!

0

13

Honda H62-0001-059

BOLT, HEX.

$2.99

$

Usually ships in 3-6 days

0

14

Honda Q14-0000-043

CRANK (3" PUMP)

$256.99

$

Usually ships in 3-6 days

0

15

Honda Q14-0000-044

WASHER, FIBER

$16.99

$

Usually ships in 3-6 days

0

16

Honda M55-TAF283730

BEARING, CRANK

$135.99

$

Usually ships in 3-6 days

0

17

Honda Q14-0000-047

COVER, CONNECTING ROD BUSHING

$46.99

$

Usually ships in 3-6 days

0

18

Honda H62-0001-055

BOLT, HEX.

$2.49

$

Usually ships in 3-6 days

0

19

Honda 94111-10800

WASHER, SPRING (10MM)

$1.99

$

In Stock, only 1 left!

0

20

Honda Q14-0000-050A

CASE, MOUNTING (UPPER) (ALUMINUM)

$346.99

$

Usually ships in 3-6 days

0

21

Honda H62-0001-068

BOLT, HEX.

$2.49

$

Usually ships in 3-6 days

0

22

Honda 94102-12800

SEE PART DETAILS - PRI; WASHER, PLAIN (12MM)

$

$

Not available

23

Honda Q14-0000-218A

ROD, CONNECTING

$615.99

$

Usually ships in 3-6 days

0

24

Honda Q14-0000-054

ROLL PIN

$2.49

$

Usually ships in 3-6 days

0

25

Honda Q14-0000-056H

DIAPHRAGM, NEOPRENE

$257.99

$

Usually ships in 3-6 days

0

26

Honda 94102-12800

SEE PART DETAILS - PRI; WASHER, PLAIN (12MM)

$

$

Not available

27

Honda Q14-0000-060A/NPT

PORT, SUCTION NPT (3")

$

$

Not available

28

Honda W67-0001-089F

NIPPLE, FACED (3")

$58.99

$

Usually ships in 3-6 days

0

29

Honda W70-2903-000

STRAINER, TRASH SQ. HOLE (3")

$59.99

$

Usually ships in 3-6 days

0

30

Honda Q14-0000-061H/NPT

CHAMBER, AIR NPT (3")

$

$

Not available

31

Honda Q14-061L430

O-RING, AIR CHAMBER PLUG

$1.49

$

Usually ships in 3-6 days

0

32

Honda Q14-061L44

PLUG, AIR CHAMBER (BRONZE)

$27.99

$

Usually ships in 3-6 days

0

33

Honda Q11-0000-333

STUD

$13.99

$

Usually ships in 3-6 days

0

34

Honda Q14-034L55

DIPSTICK, OIL W/DISCHARGE VALVE

$49.99

$

Usually ships in 3-6 days

0

35

Honda 94102-12800

SEE PART DETAILS - PRI; WASHER, PLAIN (12MM)

$

$

Not available

36

Honda Q14-0000-065H

CLAPPET, NEOPRENE

$112.99

$

Usually ships in 3-6 days

0

37

Honda Q14-0000-065WP

WEARPLATE, STAINLESS STEEL

Note: (Optional).

$170.99

$

Usually ships in 3-6 days

0

38

Honda Q14-0000-065P

GASKET, WEARPLATE PAPER

Note: (Optional).

$29.99

$

Usually ships in 3-6 days

0

39

Honda Q14-0000-068A

CASE (LOWER) (ALUMINUM)

$1313.99

$

Usually ships in 3-6 days

0

41

Honda Q14-0000-076A/NPT

SEE PART DETAILS - PRI; PORT, DISCHARGE (3")

$

$

Not available

42

Honda Q14-0000-077

BOLT, HEX. (8x1.25x15)

$2.49

$

Usually ships in 3-6 days

0

43

Honda 94101-08800

WASHER, PLAIN (8MM)

$2.49

$

In Stock, only 3 left!

0

44

Honda Q14-0000-069

SPRING, FRAME

$83.99

$

Usually ships in 3-6 days

0

45

Honda H62-0001-006

NUT

$0.99

$

Usually ships in 3-6 days

0

46

Honda 94111-10800

WASHER, SPRING (10MM)

$1.99

$

In Stock, only 1 left!

0

47

Honda Q14-0000-207

GEAR BOX, HELICAL (3D) (1:43 SILENT)

$1882.99

$

Usually ships in 3-6 days

0

48

Honda H62-12-STUD-040

STUD

$2.99

$

Usually ships in 3-6 days

0

49

Honda Q14-0000-187A

WASHER, STAR (12MM)

$1.49

$

Usually ships in 3-6 days

0

50

Honda H62-0001-009

NUT

$0.99

$

Usually ships in 3-6 days

0

51

Honda Q14-0000-055

NIPPLE, GREASE

$2.49

$

Usually ships in 3-6 days

0

52

Honda Q14-0000-213

ROD END (UPPER)

$144.99

$

Usually ships in 3-6 days

0

53

Honda Q14-0000-214

SPRING, CONNECTING ROD

$152.99

$

Usually ships in 3-6 days

0

54

Honda Q14-0000-215

RING (INNER)

$25.99

$

Usually ships in 3-6 days

0

55

Honda H62-0001-009

NUT

$0.99

$

Usually ships in 3-6 days

0

56

Honda 94102-12800

SEE PART DETAILS - PRI; WASHER, PLAIN (12MM)

$

$

Not available

57

Honda Q14-0000-187

STUD (12X1.75-70)

$10.99

$

Usually ships in 3-6 days

0

58

Honda Q14-0000-219

ROD END (LOWER)

$294.99

$

Usually ships in 3-6 days

0

59

Honda Q14-0000-220

FLANGE, CONNECTING ROD

$251.99

$

Usually ships in 3-6 days

0

60

Honda Q14-0000-221

BOLT, SPECIAL

$43.99

$

Usually ships in 3-6 days

0

61

Honda Q14-DSW0806

FRAME ASSY., WHEEL

$604.99

$

Usually ships in 3-6 days

0

62

Honda Q14-0000-317

BRACKET, ENGINE MOUNTING

$219.99

$

Usually ships in 3-6 days

0

63

Honda H60-0001-048

BOLT, HEX. (5/16-18X1.5")

$0.99

$

Usually ships in 3-6 days

0

64

Honda H61-0001-018

WASHER, FLAT (5/16" SAE)

$0.99

$

Usually ships in 3-6 days

0

65

Honda HA-NYN-313C-2Z

NUT, NYLOCK (5/16"-18) (N/A: PURCHASE STD. HARDWARE)

$

$

Currently unavailable

66

Honda R48-KEY-CABLE

CABLE, KEY

$14.99

$

Usually ships in 3-6 days

0

67

Honda H60-0001-048

BOLT, HEX. (5/16-18X1.5")

$0.99

$

Usually ships in 3-6 days

0

68

Honda HA-NYN-313C-2Z

NUT, NYLOCK (5/16"-18) (N/A: PURCHASE STD. HARDWARE)

$

$

Currently unavailable

70

Honda H63-98485A133

PIN, QUICK RELEASE

$18.99

$

Usually ships in 3-6 days

0

71

Honda 94102-20000

WASHER, PLAIN (20MM)

$1.49

$

In Stock, Qty 8

0

72

Honda 94201-40300

PIN, SPLIT (4.0X30)

$1.49

$

In Stock, Qty 5

0

73

Honda Q14-DSW0808

SHAFT, AXLE

$173.99

$

Usually ships in 3-6 days

0

74

Honda 42710-899-801

WHEEL (GLEASON 10"X2.75"=254X70)

$64.99

$

Usually ships in 3-6 days

0

75

Honda Q14-DSW0703

HANDLE

$87.99

$

Usually ships in 3-6 days

0

77

Honda H60-0001-058

BOLT (3/8X1-3/4) (N/A: PURCHASE STD. HARDWARE)

$

$

Currently unavailable

78

Honda HA-FWU-375C-2Z

WASHER (3/8") (N/A: PURCHASE STD. HARDWARE)

$

$

Currently unavailable

79

Honda HA-NYN-375C-2Z

LOCKNUT, NYLOCK (3/8"-16) (N/A: PURCHASE STD. HARDWARE)

$

$

Currently unavailable

80

Honda M51-2436T65

PLUG, HANDLE CAP

$52.99

$

Usually ships in 3-6 days

0

84

Honda H62-0001-009

NUT

$0.99

$

Usually ships in 3-6 days

0
