WDP30 X A (WZCA) - Honda Water Pump, Made in Japan (SN: WZCA-6000001 - WZCA-6100000) CRANKCASE COVER Parts Diagram

Water Pump, Made in Japan

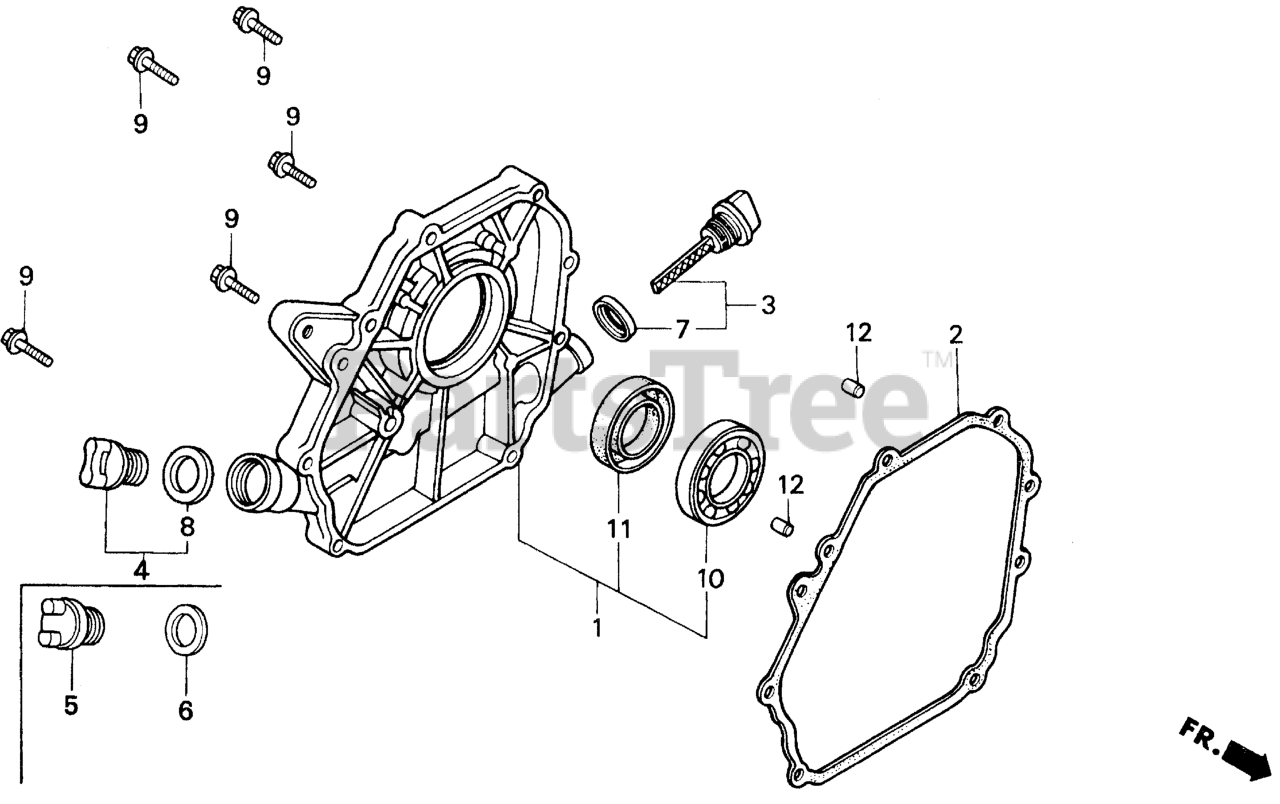

CRANKCASE COVER Parts Diagram

  • Title

1

Honda 11300-ZE0-641

SEE PART DETAILS - PRI; COVER ASSY., CRANKCASE

$180.99

$

Usually ships in 3-6 days

0

2

Honda 11381-ZH7-800

SEE PART DETAILS - PRI; GASKET, CASE COVER (Honda Code 3693488).

$9.49

$

In Stock, Qty 12

0

3

Honda 15600-ZE1-003

SEE PART DETAILS - PRI; CAP ASSY., OIL FILLER (Honda Code 4500146).
(Superseded to 15600-Z0T-810)

$1.49

$

In Stock, Qty 7

0

3

Honda 15600-Z0T-810

CAP ASSY., OIL FILLER (Honda Code 7346562).

$1.49

$

In Stock, Qty 7

0

4

Honda 15600-ZG4-003

SEE PART DETAILS - PRI; CAP ASSY., OIL FILLER

Note: Use from Engine SN 2354520.

$6.99

$

In Stock, only 1 left!

0

5

Honda 15620-ZG4-910

SEE PART DETAILS - PRI; CAP, OIL FILLER (Honda Code 3678596).

Note: Use up to Engine SN 2354519.

$4.49

$

Usually ships in 3-6 days

0

6

Honda 15621-896-010

SEE PART DETAILS - PRI; GASKET, OIL FILLER CAP Use from Engine SN 1391010.

Note: Use up to Engine SN 2354519.

$5.49

$

In Stock, Qty 5

0

7

Honda 15625-ZE1-003

SEE PART DETAILS - PRI; GASKET, OIL FILLER CAP (Honda Code 4497947).

$3.49

$

In Stock, only 2 left!

0

8

Honda 15625-ZE1-003

SEE PART DETAILS - PRI; GASKET, OIL FILLER CAP (Honda Code 4497947).

Note: Use from Engine SN 2354520.

$3.49

$

In Stock, only 2 left!

0

9

Honda 90015-883-000

BOLT, FLANGE (6X28) (CT200) Use up to Engine SN 1530314.

$3.99

$

In Stock, Qty 8

0

10

Honda 91001-878-003

BEARING, RADIAL BALL (62/22) (Honda Code 0442061).

$37.99

$

In Stock, only 1 left!

0

11

Honda 91203-ZE0-013

SEE PART DETAILS - PRI; OIL SEAL (22X41X6) (Honda Code 7424484).

$10.99

$

In Stock, Qty 12

0

12

Honda 94301-08140

SEE PART DETAILS - PRI; PIN A, DOWEL (8X14) (Honda Code 0069310).

$2.99

$

In Stock, Qty 8

0
