WDP20 X A (WZBZ) - Honda Water Pump, Made in Japan (SN: WZBZ-6000001 - WZBZ-9999999) CARBURETOR Parts Diagram

Water Pump, Made in Japan

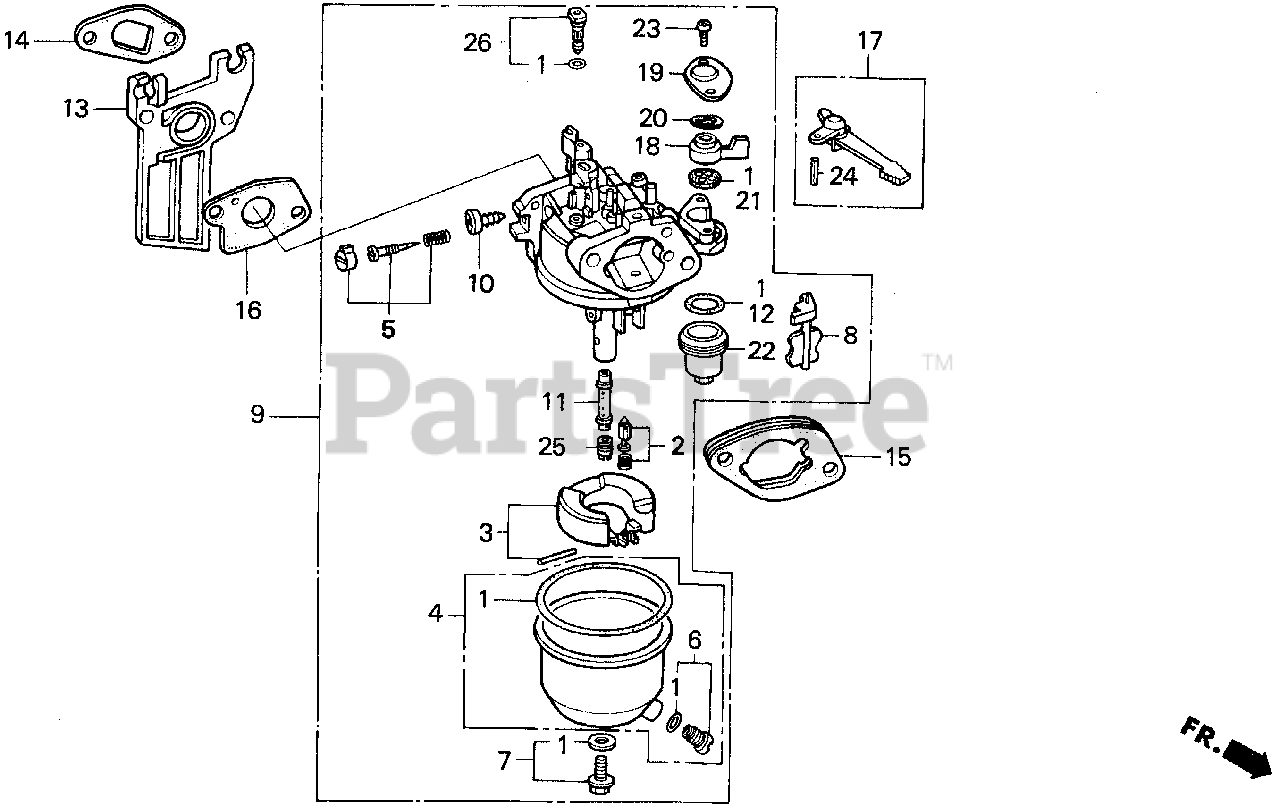

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-ZE1-812

SEE PART DETAILS - PRI; GASKET SET

$20.99

$

In Stock, Qty 8

0

2

Honda 16011-ZE0-005

VALVE SET, FLOAT (SEAT NOT INCLUDED)

$30.99

$

In Stock, only 1 left!

0

3

Honda 16013-ZE0-005

FLOAT SET

$31.99

$

In Stock, only 1 left!

0

4

Honda 16015-ZE1-811

CHAMBER SET, FLOAT
(Superseded to 16015-ZE0-831)

$38.99

$

In Stock, only 2 left!

0

5

Honda 16016-ZH7-W01

SCREW SET, PILOT

$21.99

$

In Stock, only 1 left!

0

6

Honda 16024-ZE1-811

SCREW SET, DRAIN

$10.99

$

In Stock, only 3 left!

0

7

Honda 16028-ZE0-005

SEE PART DETAILS - SUP; SCREW SET
(Superseded to 16028-ZK7-S91)

$13.99

$

In Stock, only 1 left!

0

7

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

$13.99

$

In Stock, only 1 left!

0

8

Honda 16044-ZE0-005

CHOKE SET

$39.99

$

Usually ships in 3-6 days

0

9

Honda 16100-ZH7-W51

CARBURETOR ASSY. (BE60B B)

$120.99

$

In Stock, only 3 left!

0

10

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

$17.99

$

In Stock, only 1 left!

0

11

Honda 16166-ZK7-S91

NOZZLE, MAIN

$22.99

$

Usually ships in 3-6 days

0

12

Honda 16173-001-004

GASKET, FUEL STRAINER CUP

$7.49

$

In Stock, only 2 left!

0

13

Honda 16211-ZE0-000

INSULATOR, CARBURETOR

$20.99

$

In Stock, only 1 left!

0

14

Honda 16212-ZH7-800

GASKET, INSULATOR

$2.99

$

In Stock, Qty 17

0

15

Honda 16220-ZE1-020

SEE PART DETAILS - PRI; SPACER, CARBURETOR

$8.49

$

In Stock, Qty 20+

0

16

Honda 16221-ZH8-801

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$2.49

$

In Stock, Qty 20+

0

17

Honda 16610-ZE1-000

LEVER, CHOKE (STD)

$11.99

$

In Stock, Qty 8

0

18

Honda 16953-ZE1-406

SEE PART DETAILS - PRI; LEVER, VALVE

$14.99

$

Usually ships in 3-6 days

0

18

Honda 16953-ZE1-811

SEE PART DETAILS - SUP; LEVER, PETCOCK
(Superseded to 16953-ZE1-406)

$14.99

$

Usually ships in 3-6 days

0

18

Honda 16953-ZE1-812

LEVER, PETCOCK

$10.99

$

In Stock, Qty 10

0

19

Honda 16954-ZE1-812

PLATE, LEVER SETTING

$4.49

$

In Stock, only 1 left!

0

20

Honda 16956-ZE1-811

SEE PART DETAILS - PRI; SPRING, PETCOCK LEVER

$4.49

$

Usually ships in 3-6 days

0

21

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, PETCOCK

$4.49

$

In Stock, Qty 20+

0

22

Honda 16967-ZE0-811

CUP, FUEL STRAINER

$23.99

$

In Stock, only 3 left!

0

23

Honda 93500-03008-1G

SCREW, PAN (3X8)

$

$

Currently unavailable

24

Honda 94305-20122

PIN, SPRING (2X12)

$2.49

$

In Stock, only 4 left!

0

25

Honda 99101-ZH7-0550

JET, MAIN (#55)

Note: (Optional).

$

$

Not available

25

Honda 99101-ZH7-0600

JET, MAIN (#60)

$9.49

$

Usually ships in 3-6 days

0

25

Honda 99101-ZK7-0580

JET, MAIN (#58)

Note: (Optional).

$8.99

$

Usually ships in 3-6 days

0

26

Honda 99204-ZE0-0350

JET SET, PILOT (#35)

$23.99

$

In Stock, only 2 left!

0
