WD30 XK1 C1 (GC02) - Honda Water Pump, Made in Japan (SN: GC02-2000001 - GC02-8669999) CYLINDER Parts Diagram

Water Pump, Made in Japan

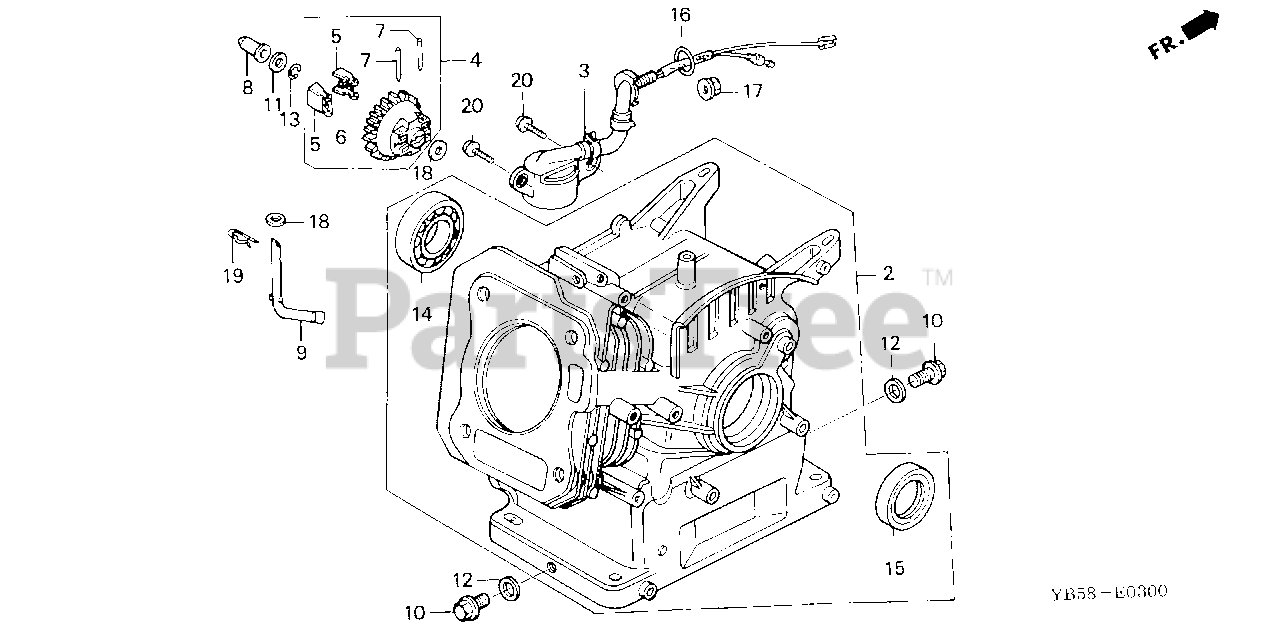

CYLINDER Parts Diagram

  • Title

2

Honda 12000-ZH8-426

CYLINDER ASSY. (OIL ALERT)

$548.99

$

Usually ships in 3-6 days

0

3

Honda 15510-ZE1-013

SEE PART DETAILS - SUP; SWITCH ASSY., OIL LEVEL

Note: Use up to Engine SN 4367320.

$

$

Not available

3

Honda 15510-ZE1-023

SEE PART DETAILS - SUP; SWITCH ASSY., OIL LEVEL
(Superseded to 15510-ZE1-043)

Note: Use up to Engine SN 4367320.

$68.99

$

In Stock, Qty 9

0

3

Honda 15510-ZE1-023

SEE PART DETAILS - SUP; SWITCH ASSY., OIL LEVEL
(Superseded to 15510-ZE1-043)

Note: Use from Engine SN 4367321 to 5640312.

$68.99

$

In Stock, Qty 9

0

3

Honda 15510-ZE1-033

SEE PART DETAILS - PRI; SWITCH ASSY., OIL LEVEL
(Superseded to 15510-ZE1-043)

Note: Use up to Engine SN 4367320.

$68.99

$

In Stock, Qty 9

0

3

Honda 15510-ZE1-033

SEE PART DETAILS - PRI; SWITCH ASSY., OIL LEVEL
(Superseded to 15510-ZE1-043)

Note: Use from Engine SN 4367321.

$68.99

$

In Stock, Qty 9

0

3

Honda 15510-ZE1-043

SEE PART DETAILS - PRI; SWITCH ASSY., OIL LEVEL

Note: Use up to Engine SN 4367320.

$68.99

$

In Stock, Qty 9

0

3

Honda 15510-ZE1-043

SEE PART DETAILS - PRI; SWITCH ASSY., OIL LEVEL

Note: Use from Engine SN 4367321.

$68.99

$

In Stock, Qty 9

0

4

Honda 16510-ZE1-000

GOVERNOR ASSY.

$17.99

$

In Stock, only 2 left!

0

5

Honda 16511-ZE1-000

WEIGHT, GOVERNOR

$4.49

$

Usually ships in 3-6 days

0

6

Honda 16512-ZE1-000

HOLDER, GOVERNOR WEIGHT

$25.99

$

In Stock, only 1 left!

0

7

Honda 16513-ZE1-000

PIN, GOVERNOR WEIGHT

$2.49

$

Usually ships in 3-6 days

0

8

Honda 16531-ZE1-000

SEE PART DETAILS - PRI; SLIDER, GOVERNOR

$3.49

$

In Stock, Qty 8

0

9

Honda 16541-ZE1-000

SHAFT, GOVERNOR ARM

$13.99

$

Usually ships in 3-6 days

0

10

Honda 90131-ZE1-000

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG

$3.49

$

In Stock, only 2 left!

0

11

Honda 90451-ZE1-000

WASHER, THRUST (6MM)

$2.49

$

In Stock, only 2 left!

0

12

Honda 90601-ZE1-000

WASHER, DRAIN PLUG (10.2MM)

$1.49

$

In Stock, Qty 20+

0

13

Honda 90602-ZE1-000

CLIP, GOVERNOR HOLDER

$1.99

$

In Stock, only 3 left!

0

14

Honda 91001-ZF1-003

BEARING, RADIAL BALL (6205TMB) (NTN)

$25.99

$

In Stock, only 3 left!

0

15

Honda 91201-Z0T-801

SEE PART DETAILS - PRI; OIL SEAL (25X41X6)

$9.49

$

In Stock, Qty 11

0

15

Honda 91202-883-005

SEE PART DETAILS - SUP; OIL SEAL (25X41X6)
(Superseded to 91201-Z0T-801)

Note: Use up to Engine SN 8565637.

$9.49

$

In Stock, Qty 11

0

16

Honda 91353-671-003

SEE PART DETAILS - PRI; O-RING (14MM) (ARAI)

$3.99

$

In Stock, Qty 20+

0

16

Honda 91353-671-004

SEE PART DETAILS - SUP; O-RING (14MM) (NOK)
(Superseded to 91353-671-003)

$3.99

$

In Stock, Qty 20+

0

17

Honda 94050-10000

NUT, FLANGE (10MM)

$1.99

$

In Stock, Qty 5

0

18

Honda 94101-06800

WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

19

Honda 94251-08000

PIN, LOCK (8MM)

$1.99

$

In Stock, Qty 9

0

20

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0
