WD30 XK1 AC1 (GC02) - Honda Water Pump, Made in Japan (SN: GC02-2000001 - GC02-8669999) FRAME Parts Diagram

Water Pump, Made in Japan

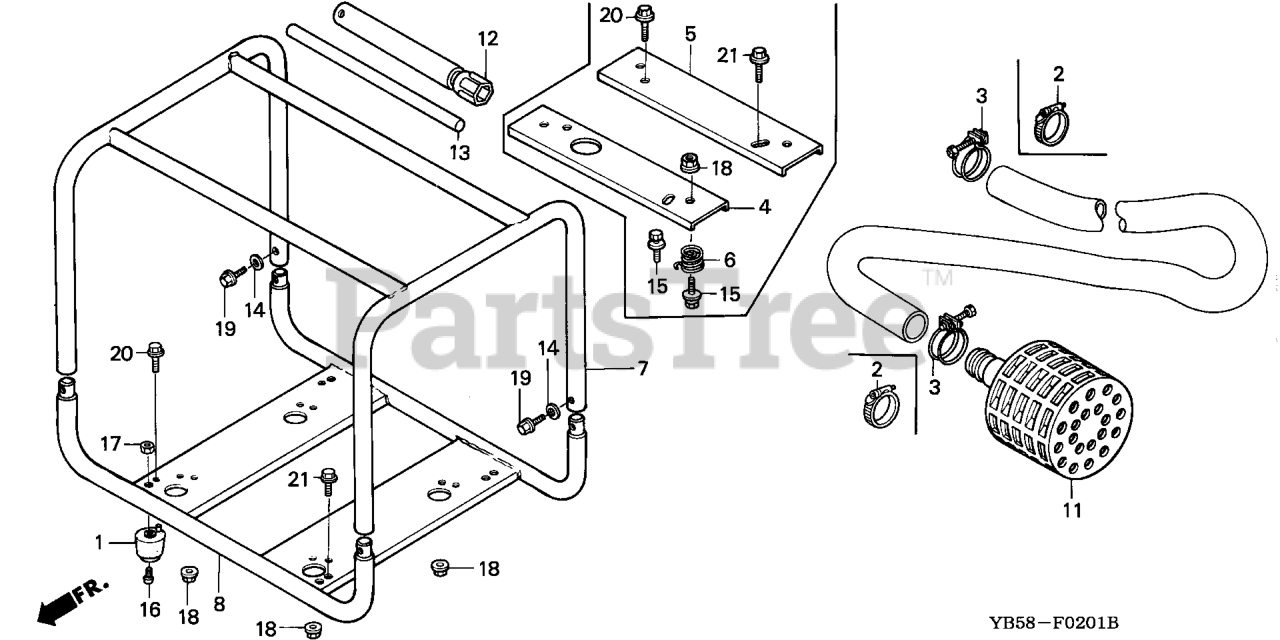

FRAME Parts Diagram

  • Title
1

Honda 60407-YB3-900

RUBBER (LOWER)

$

$

Not available

3

Honda 78139-YB4-000

BAND, HOSE

$14.99

$

Usually ships in 3-6 days

0

4

Honda 78201-YB4-900

STAY A, MOUNTING

$

$

Not available

5

Honda 78202-YB4-900

STAY B, MOUNTING

$

$

Not available

6

Honda 78205-954-000

SPRING, MOUNT

$17.99

$

Usually ships in 3-6 days

0

7

Honda 78206-YB4-900

FRAME (UPPER)

$253.99

$

Usually ships in 3-6 days

0

8

Honda 78207-YB4-900

FRAME (LOWER)

$326.99

$

Usually ships in 3-6 days

0

11

Honda 78325-YB4-662

SEE PART DETAILS - PRI; STRAINER

$44.99

$

Usually ships in 3-6 days

0

12

Honda 89218-ZE1-000

WRENCH, SPARK PLUG (Honda Code 1431048).

Note: Use up to Frame SN 5708522.

$21.99

$

Usually ships in 3-6 days

0

13

Honda 89219-805-000

HANDLE, BOX WRENCH (NOT AVAILABLE) (Honda Code 0066654).

Note: Use up to Frame SN 5708522.

$3.99

$

Usually ships in 3-6 days

0

14

Honda 90501-898-000

WASHER, FRAME JOINT

$2.99

$

In Stock, Qty 9

0

15

Honda 93404-08020-08

SEE PART DETAILS - PRI; BOLT-WASHER (8X20)

$2.49

$

In Stock, Qty 6

0

16

Honda 93500-06010-0A

SCREW, PAN (6X10)

$1.49

$

In Stock, only 4 left!

0

17

Honda 94001-06000-0S

SEE PART DETAILS - SUP; NUT, HEX. (6MM) (Honda Code 0156067).
(Superseded to 94001-06200-0S)

$1.99

$

In Stock, Qty 20+

0

17

Honda 94001-06200-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM) (Honda Code 2043255).

$1.99

$

In Stock, Qty 20+

0

18

Honda 94050-08080

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0468447).

$1.49

$

In Stock, Qty 15

0

19

Honda 95701-08018-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X18) Use from Frame SN 1256673.

$2.49

$

Usually ships in 3-6 days

0

20

Honda 95701-08025-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X25) (Honda Code 2545325).

$2.49

$

In Stock, only 3 left!

0

21

Honda 95701-08028-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X28) (Honda Code 2581387).

$1.99

$

In Stock, Qty 5

0
