WD20 XK1 C1/B (GC01) - Honda Water Pump, Made in Japan (SN: GC01-4410067 - GC01-9999999) CASING (WB20XK1, WD20XK1) Parts Diagram

Water Pump, Made in Japan

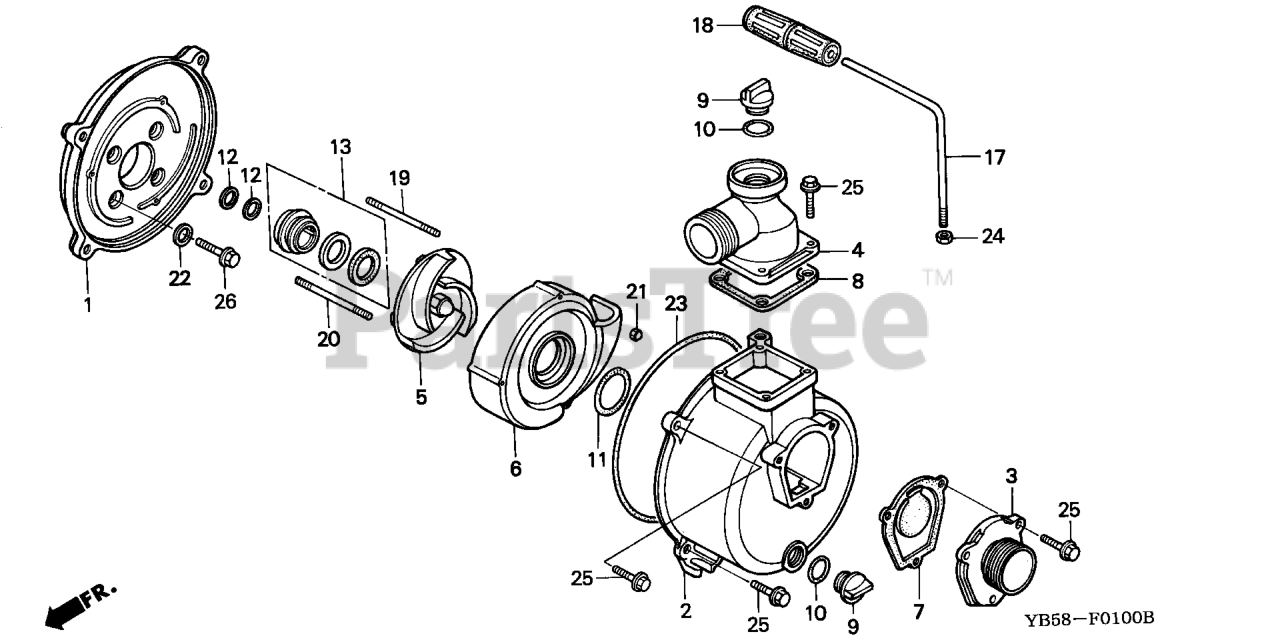

CASING (WB20XK1, WD20XK1) Parts Diagram

  • Title

1

Honda 78102-YB3-020

COVER, CASING

$

$

Currently unavailable

2

Honda 78101-YB3-040

SEE PART DETAILS - PRI; CASING

$

$

Not available

3

Honda 78103-YB3-630

PIPE, INLET

$69.99

$

In Stock, only 1 left!

0

4

Honda 78104-YB3-631

PIPE, OUTLET

$139.99

$

Usually ships in 3-6 days

0

5

Honda 78106-YB3-000

IMPELLER

$12.99

$

In Stock, only 1 left!

0

6

Honda 78107-YB3-K10

SEE PART DETAILS - PRI; CASE, VOLUTE

$26.99

$

In Stock, only 1 left!

0

7

Honda 78110-YB3-000

VALVE, IN.

$31.99

$

In Stock, only 4 left!

0

8

Honda 78114-YB3-000

GASKET, OUTLET

$13.99

$

In Stock, only 3 left!

0

9

Honda 78117-YB7-020

SEE PART DETAILS - PRI; CAP, FILLER

$13.99

$

In Stock, only 2 left!

0

10

Honda 78118-YB0-003

SEE PART DETAILS - SUP; RING, SEAL (B)
(Superseded to 78118-YB0-004)

$10.99

$

In Stock, Qty 9

0

10

Honda 78118-YB0-004

SEE PART DETAILS - PRI; RING, SEAL (B)

$10.99

$

In Stock, Qty 9

0

11

Honda 78118-YB3-004

O-RING (49X5.7) (NOK)

$9.49

$

In Stock, Qty 11

0

12

Honda 78122-YB3-000

SHIM, ADJUSTER

$4.99

$

In Stock, only 2 left!

0

13

Honda 78130-YB4-901

SEE PART DETAILS - PRI; SEAL ASSY., MECHANICAL WATER

$108.99

$

In Stock, only 4 left!

0

19

Honda 90034-402-000

BOLT, STUD (6X50)

$5.49

$

In Stock, only 2 left!

0

20

Honda 90043-YB4-000

BOLT, STUD (6X50)

$3.99

$

Usually ships in 3-6 days

0

21

Honda 90281-YB4-000

NUT, CAP (6MM)

$2.49

$

In Stock, only 3 left!

0

22

Honda 90474-333-000

WASHER, SEALING (8MM)

$5.49

$

In Stock, only 4 left!

0

23

Honda 91351-YB3-003

O-RING (217.5X3.5) (ARAI)

$17.99

$

In Stock, Qty 13

0

25

Honda 95701-08025-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X25) (Honda Code 2545325).

$2.49

$

In Stock, only 4 left!

0

26

Honda 95701-08028-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X28) (Honda Code 2581387).

$1.99

$

In Stock, Qty 5

0
