WD20 XK1 AC1/A (GC01) - Honda Water Pump, Made in Japan (SN: GC01-4300001 - GC01-9999999) CYLINDER HEAD Parts Diagram

Water Pump, Made in Japan

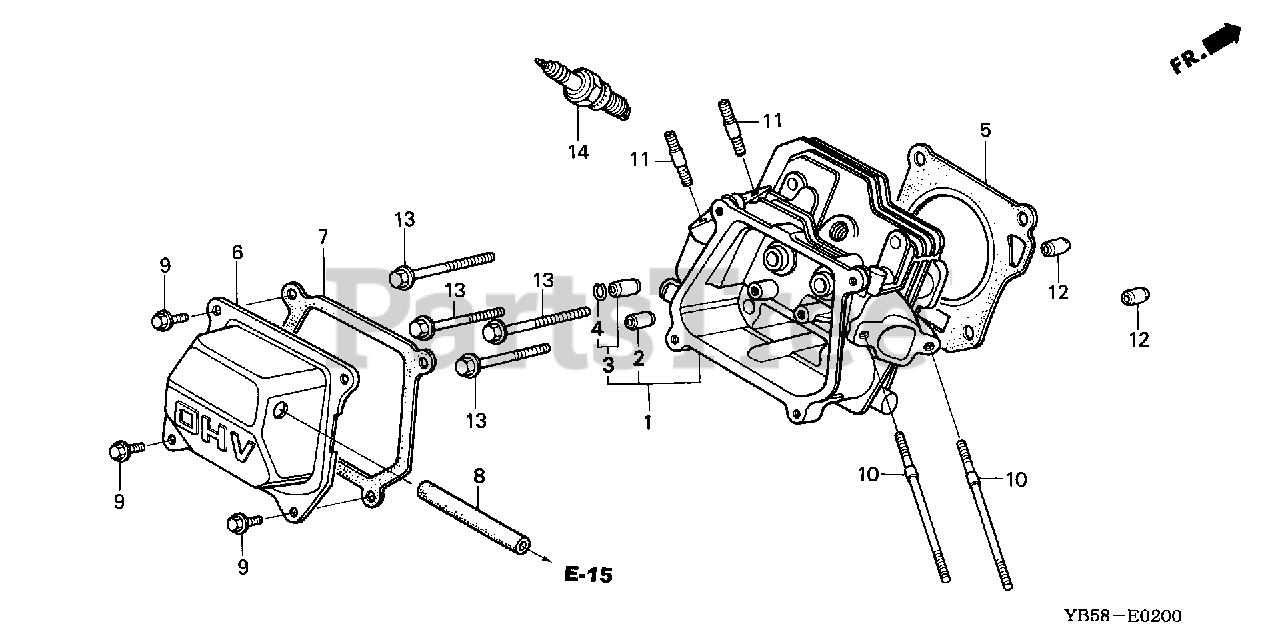

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 12210-ZH7-415

SEE PART DETAILS - PRI; CYLINDER HEAD

$227.99

$

Usually ships in 3-6 days

0

2

Honda 12204-ZE1-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OVER SIZE)

Note: (Optional).

$9.99

$

Usually ships in 3-6 days

0

3

Honda 12205-ZE1-315

GUIDE, EX. VALVE (OVER SIZE)

Note: (Optional).

$10.99

$

In Stock, only 2 left!

0

4

Honda 12216-ZE5-300

CLIP, VALVE GUIDE

$1.99

$

In Stock, Qty 17

0

5

Honda 12251-ZH7-800

SEE PART DETAILS - SUP; GASKET, CYLINDER HEAD
(Superseded to 12251-ZH7-801)

$13.99

$

In Stock, only 3 left!

0

5

Honda 12251-ZH7-801

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD

$13.99

$

In Stock, only 3 left!

0

6

Honda 12310-ZE1-020

SEE PART DETAILS - PRI; COVER, HEAD

$18.99

$

In Stock, only 1 left!

0

7

Honda 12391-ZE1-000

GASKET, HEAD COVER

$5.49

$

In Stock, Qty 20+

0

8

Honda 15721-ZH8-000

TUBE, BREATHER

$4.99

$

In Stock, Qty 11

0

9

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 17

0

10

Honda 90043-ZE1-020

SEE PART DETAILS - PRI; BOLT, STUD (6X112)

$6.99

$

In Stock, only 2 left!

0

11

Honda 90047-ZE1-000

BOLT, STUD (8X32)

$4.99

$

In Stock, only 2 left!

0

12

Honda 94301-10160

PIN, DOWEL (10X16)

$3.49

$

In Stock, only 3 left!

0

13

Honda 95723-08055-00

BOLT, FLANGE (8X55)

$2.49

$

In Stock, only 1 left!

0

14

Honda 98079-56846

SEE PART DETAILS - PRI; SPARK PLUG (BPR6ES) (NGK)

$3.99

$

In Stock, Qty 20+

0

14

Honda 98079-56855

SPARK PLUG (W20EPR-U) (DENSO)

$3.99

$

In Stock, Qty 8

0
