WD20 X C (GX110) - Honda Water Pump, Made in Japan (SN: GX110-1000001 - GX110-9999999) WD20/30XFRAME BED + TOOLS Parts Diagram

Water Pump, Made in Japan

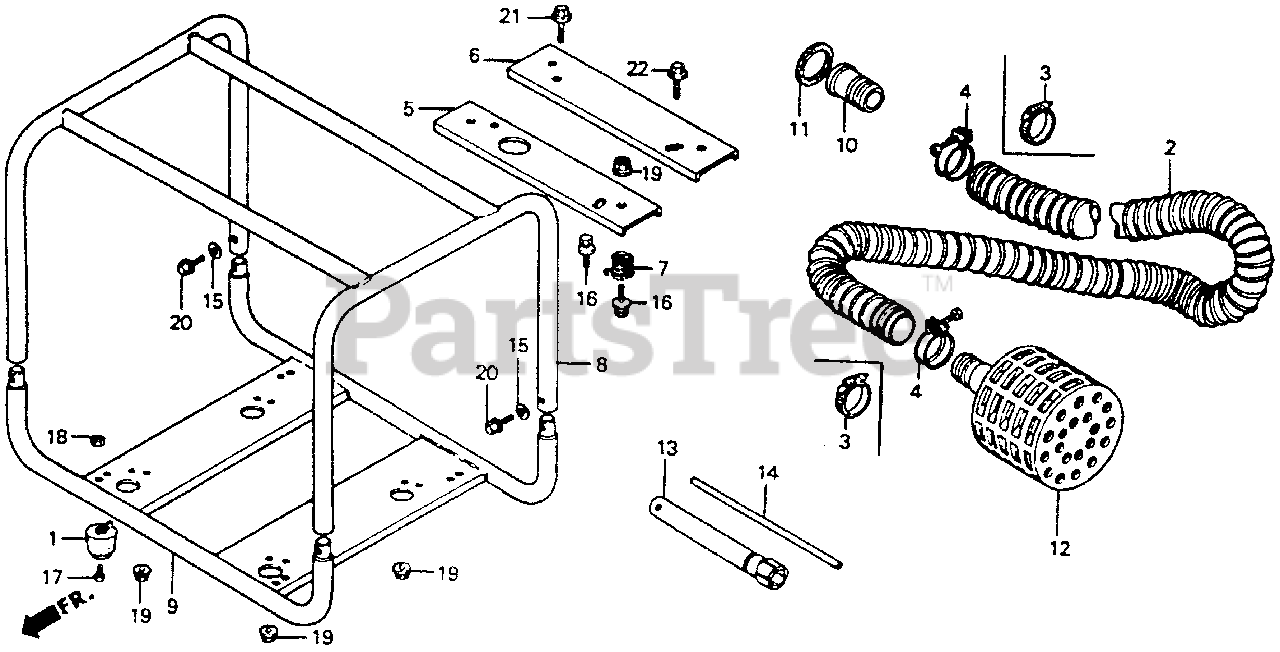

WD20/30XFRAME BED + TOOLS Parts Diagram

  • Title

1

Honda 60407-YB3-900

RUBBER (LOWER)

$

$

Not available

2

Honda 78111-YB3-000

SEE PART DETAILS - SUP; HOSE, SUCTION
(Superseded to 78151-YB7-711)

$368.99

$

Usually ships in 3-6 days

0

3

Honda 78139-YB3-000

BAND, HOSE

$14.99

$

Usually ships in 3-6 days

0

5

Honda 78201-YB4-900

STAY A, MOUNTING

$

$

Not available

6

Honda 78202-YB4-900

STAY B, MOUNTING

$

$

Not available

7

Honda 78205-954-000

SPRING, MOUNT

$17.99

$

Usually ships in 3-6 days

0

8

Honda 78206-YB4-010

FRAME (UPPER)

$268.99

$

Usually ships in 3-6 days

0

9

Honda 78207-YB4-900

FRAME (LOWER)

$326.99

$

Usually ships in 3-6 days

0

10

Honda 78311-YB3-900

COUPLING, HOSE

$41.99

$

Usually ships in 3-6 days

0

11

Honda 78313-YB3-000

GASKET, HOSE COUPLING

$8.49

$

Usually ships in 3-6 days

0

12

Honda 78325-YB3-660

SEE PART DETAILS - SUP; STRAINER Use up to Frame SN 1582885.
(Superseded to 78325-YB3-661)

$50.99

$

Usually ships in 3-6 days

0

12

Honda 78325-YB3-661

SEE PART DETAILS - PRI; STRAINER

$50.99

$

Usually ships in 3-6 days

0

13

Honda 89218-ZE1-000

WRENCH, SPARK PLUG

$21.99

$

Usually ships in 3-6 days

0

14

Honda 89219-805-000

HANDLE, BOX WRENCH

$3.99

$

Usually ships in 3-6 days

0

15

Honda 90501-898-000

WASHER, FRAME JOINT

$2.99

$

In Stock, Qty 7

0

16

Honda 93404-08020-08

BOLT-WASHER (8X20)

$2.49

$

In Stock, Qty 6

0

17

Honda 93500-06010

SCREW, PAN (6X10)
(Superseded to 93500-06010-0A)

$1.49

$

In Stock, only 4 left!

0

17

Honda 93500-06010-0A

SCREW, PAN (6X10)

$1.49

$

In Stock, only 4 left!

0

18

Honda 94001-06000-0S

SEE PART DETAILS - SUP; NUT, HEX. (6MM)
(Superseded to 94001-06200-0S)

$1.99

$

In Stock, Qty 20+

0

18

Honda 94001-06200-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM)

$1.99

$

In Stock, Qty 20+

0

19

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 9

0

20

Honda 95701-08018-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X18)

$2.49

$

Usually ships in 3-6 days

0

21

Honda 95701-08025-00

BOLT, FLANGE (8X25)

$2.49

$

In Stock, Qty 5

0

22

Honda 95701-08028-00

BOLT, FLANGE (8X28)

$1.99

$

In Stock, Qty 5

0
