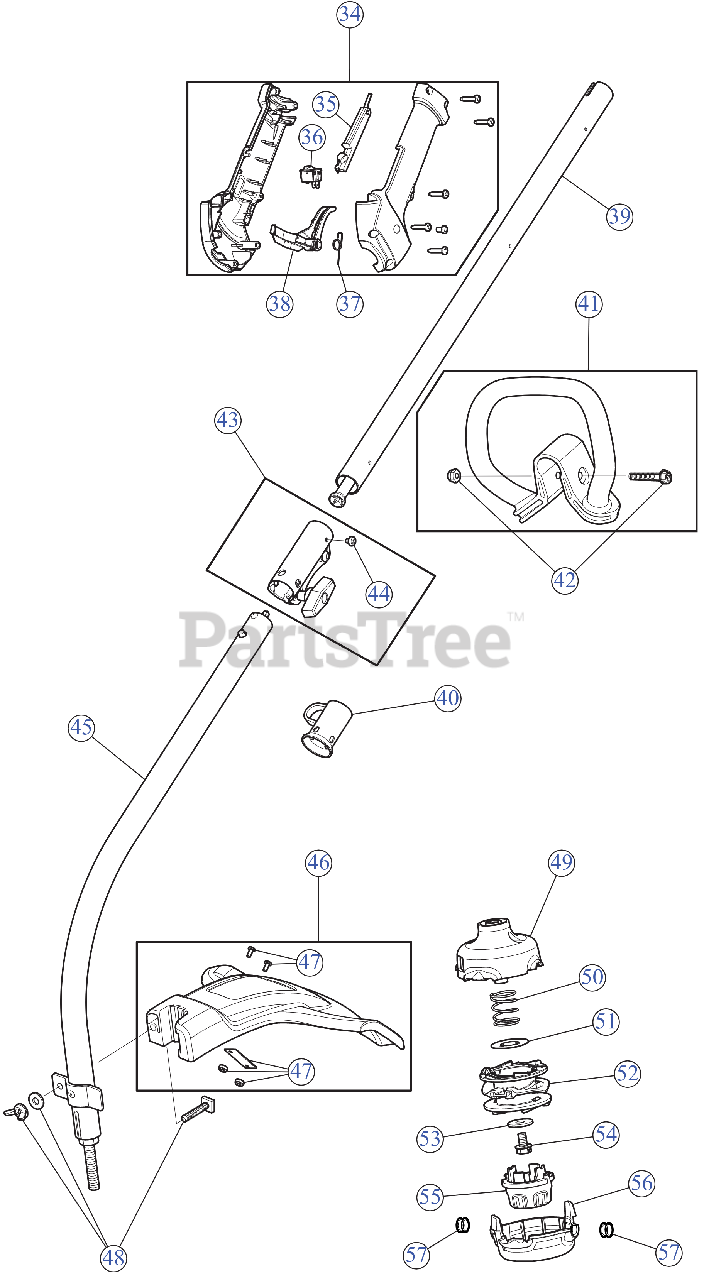

WC 215 (CMXGTAMDZ20C) (41ADZ20C791) - Craftsman String Trimmer General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

34

MTD 753-08344

THROTTLE GRIP ASSEMBLY

Note: (Incl. 35 - 38)

$30.99

$

Usually ships in 3-6 days

0

35

MTD 731-08433C-10

LEVER LOCK OUT

$3.49

$

In Stock, Qty 14

0

36

MTD 791-182405

SW, MOMENTARY ON/O

$10.99

$

In Stock, Qty 12

0

37

MTD 753-05007

SPRING TRIG

$5.49

$

In Stock, only 3 left!

0

38

MTD 731-04970B-10

THROTTLE TRIGGER

$9.49

$

In Stock, Qty 20+

0

39

MTD 753-06880

BOOM ASSEMBLY UPR

$19.99

$

In Stock, only 1 left!

0

40

MTD 731-08926

HANGER

$2.99

$

In Stock, Qty 20+

0

41

MTD 753-08042

D-HANDLE

Note: (Incl. 42)

$4.99

$

In Stock, Qty 7

0

42

MTD 753-06040

BOLT 1/4-20X1 1/2

$6.99

$

In Stock, only 1 left!

0

43

MTD 753-09225

COUPLER ASSEMBLY

Note: (Incl. 44)

$7.49

$

In Stock, Qty 6

0

44

MTD 791-182057

SCREW, 10-32X.250 TA

$4.49

$

In Stock, only 3 left!

0

45

MTD 753-08692

BOOM ASM LWR

$23.99

$

In Stock, only 1 left!

0

46

MTD 753-04283

GUARD ASSEMBLY

Note: (Incl. 47)

$50.99

$

In Stock, only 1 left!

0

47

MTD 791-180553

ASSEMBLY, BLADE

$14.99

$

In Stock, only 1 left!

0

48

MTD 753-04282

BLADE GUARD MOUNTING HARDWARE

$25.99

$

In Stock, only 1 left!

0

49

MTD 731-12543-1

OUTER SPOOL 2N1

$3.49

$

In Stock, Qty 20+

0

50

MTD 791-610636B

SPRING-SPOOL

$10.99

$

In Stock, only 2 left!

0

51

MTD 797-00256

STAMPED COVER

$3.49

$

In Stock, Qty 16

0

52

MTD 731-12545-1

INNER REEL 2N1
(Superseded to 731-12545A-1)

$3.99

$

In Stock, Qty 20+

0

53

MTD 736-04117

FLAT WASHER 1.0 OD:.331 ID

$3.49

$

In Stock, Qty 20+

0

54

MTD 710-04562

BOLT 5/16-18

$4.49

$

In Stock, Qty 20+

0

55

MTD 731-09582-49

BUMP KNOB

$2.99

$

In Stock, Qty 20+

0

56

MTD 697-00701S

CAP 2N1

$3.99

$

In Stock, Qty 20+

0

57

MTD 728-04061

EYELET

$2.49

$

In Stock, Qty 20+

0
