WC 210 (CMXGTAMD25CC) (41CD25CC793) - Craftsman String Trimmer General Assembly Parts Diagram

String Trimmer

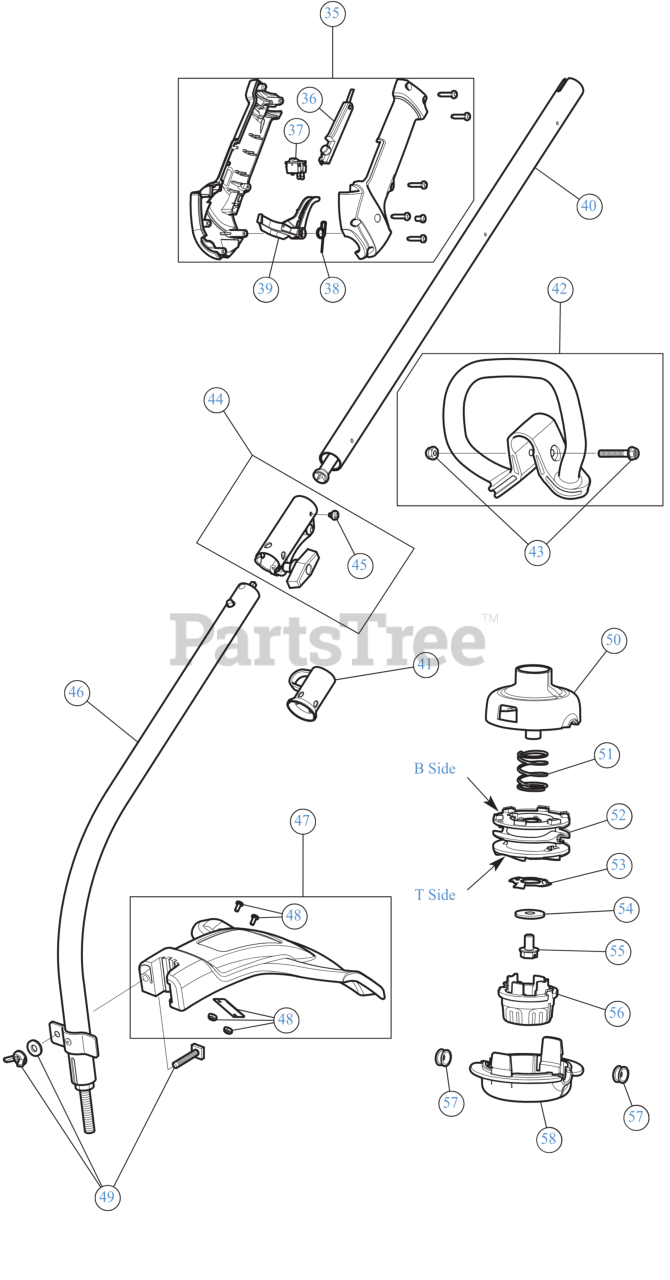

General Assembly Parts Diagram

  • Title

35

MTD 753-08344

THROTTLE GRIP ASSEMBLY

Note: (Incl. 36 - 39)

$30.99

$

Usually ships in 3-6 days

0

36

MTD 731-08433C-10

LEVER LOCK OUT

$3.49

$

In Stock, only 4 left!

0

37

MTD 791-182405

SW, MOMENTARY ON/O

$10.99

$

In Stock, Qty 12

0

38

MTD 753-05007

SPRING TRIG

$5.49

$

In Stock, only 2 left!

0

39

MTD 731-04970B-10

THROTTLE TRIGGER

$9.49

$

In Stock, Qty 16

0

40

MTD 753-06880

BOOM ASSEMBLY UPR

$19.99

$

In Stock, only 1 left!

0

41

MTD 731-08926

HANGER

$2.99

$

In Stock, only 3 left!

0

42

MTD 753-08042

D-HANDLE

Note: (Incl. 43)

$4.99

$

In Stock, Qty 5

0

43

MTD 753-06040

BOLT 1/4-20X1 1/2

$6.99

$

Usually ships in 3-6 days

0

44

MTD 753-09225

COUPLER ASSEMBLY

Note: (Incl. 45)

$7.49

$

In Stock, only 2 left!

0

45

MTD 791-182057

SCREW, 10-32X.250 TA

$4.49

$

In Stock, Qty 7

0

46

MTD 753-08692

BOOM ASM LWR

$23.99

$

Usually ships in 3-6 days

0

47

MTD 753-04283

GUARD ASSEMBLY

Note: (Incl. 48)

$50.99

$

Usually ships in 3-6 days

0

48

MTD 791-180553

ASSEMBLY, BLADE

$14.99

$

Usually ships in 3-6 days

0

49

MTD 753-04282

BLADE GUARD MOUNTING HARDWARE

$25.99

$

In Stock, only 1 left!

0

50

MTD 731-09579A-1

OUTER SPOOL

$3.99

$

In Stock, Qty 20+

0

51

MTD 791-610636B

SPRING-SPOOL

$10.99

$

In Stock, Qty 5

0

52

MTD 753-10604

INNER REEL

$4.99

$

In Stock, Qty 8

0

53

MTD 797-00022

SPOOL RETAINER

$1.49

$

In Stock, Qty 20+

0

54

MTD 736-04117

FLAT WASHER 1.0 OD:.331 ID

$3.49

$

In Stock, Qty 11

0

55

MTD 710-04562

BOLT 5/16-18

$4.49

$

In Stock, Qty 6

0

56

MTD 731-09582-A-49

BUMP KNOB (LIBERTY RED)

$4.99

$

In Stock, only 3 left!

0

57

MTD 728-04061

EYELET

$2.49

$

In Stock, Qty 20+

0

58

MTD 731-09583A-1

SPOOL CAP

$3.49

$

Usually ships in 3-6 days

0

MTD 841P035132S

HEAD ASSEMBLY

Note: (Incl. 50-58) (Not Shown)

$18.99

$

In Stock, Qty 15

0
