WB30 XK2 A (WACT) - Honda Water Pump, Made in Thailand (SN: WACT-1000001 - WACT-1999999) CASING + IMPELLER (WB30XK2/XT2/XT3) Parts Diagram

Water Pump, Made in Thailand

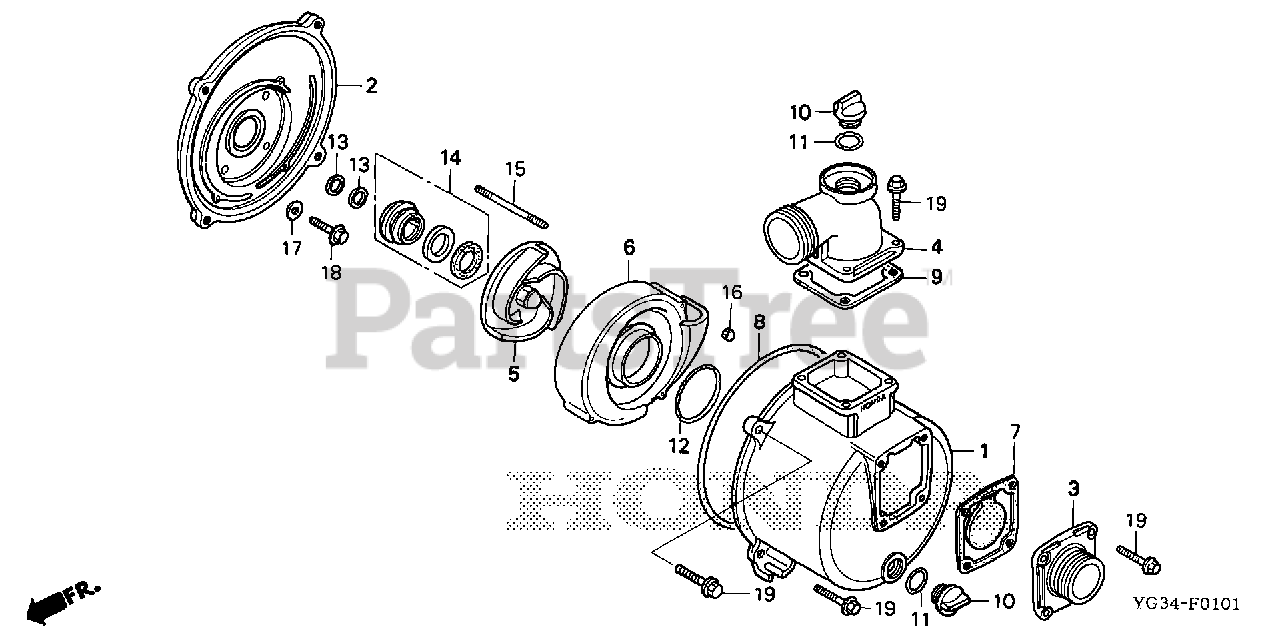

CASING + IMPELLER (WB30XK2/XT2/XT3) Parts Diagram

  • Title

1

Honda 78101-YG4-000

CASING

$97.99

$

Usually ships in 3-6 days

0

2

Honda 78102-YG4-000

SEE PART DETAILS - PRI; COVER, CASING

$30.99

$

Usually ships in 3-6 days

0

3

Honda 78103-YG4-610

INLET (NPTF)

$20.99

$

Usually ships in 3-6 days

0

4

Honda 78104-YG4-610

OUTLET (NPTF)

$24.99

$

In Stock, only 1 left!

0

5

Honda 78106-YB4-000

IMPELLER

$105.99

$

Usually ships in 3-6 days

0

6

Honda 78107-YB4-K10

SEE PART DETAILS - PRI; CASE, VOLUTE

$172.99

$

Usually ships in 3-6 days

0

7

Honda 78110-YB4-000

VALVE, IN.

$38.99

$

In Stock, only 1 left!

0

8

Honda 78112-954-003

RING, CASING SEAL

$17.99

$

In Stock, only 1 left!

0

9

Honda 78114-YB4-000

GASKET, OUTLET

$14.99

$

In Stock, only 1 left!

0

10

Honda 78117-YB3-K10

CAP, FILLER

$15.99

$

In Stock, only 1 left!

0

11

Honda 78118-YB0-003

SEE PART DETAILS - SUP; RING, SEAL (B)
(Superseded to 78118-YB0-004)

$10.99

$

Usually ships in 3-6 days

0

11

Honda 78118-YB0-004

SEE PART DETAILS - PRI; RING, SEAL (B)

$10.99

$

Usually ships in 3-6 days

0

12

Honda 78118-YB4-004

O-RING (71X5.7)

$11.99

$

In Stock, only 2 left!

0

13

Honda 78122-YB3-000

SHIM, ADJUSTER

$4.99

$

In Stock, only 2 left!

0

14

Honda 78130-YB4-901

SEAL, MECHANICAL

$108.99

$

Usually ships in 3-6 days

0

15

Honda 90043-YB4-000

BOLT, STUD (6X50)

$3.99

$

Usually ships in 3-6 days

0

16

Honda 90281-YB4-000

NUT, CAP (6MM)

$2.49

$

In Stock, only 3 left!

0

17

Honda 90474-333-000

WASHER, SEALING (8MM)

$5.49

$

In Stock, only 4 left!

0

18

Honda 95701-08028-08

BOLT, FLANGE (8X28)

$2.99

$

In Stock, only 3 left!

0

19

Honda 95701-10032-08

BOLT, FLANGE (10X32)

$2.99

$

Usually ships in 3-6 days

0
