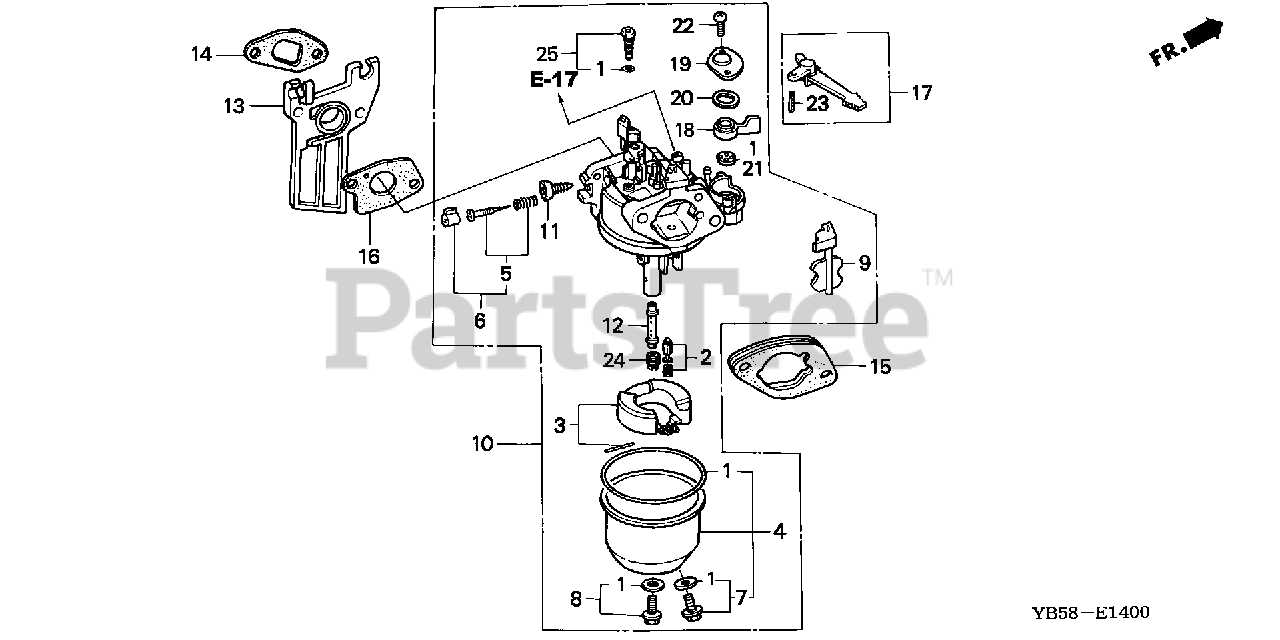

WB30 XK1 C1 (GC02) - Honda Water Pump, Made in Japan (SN: GC02-2000001 - GC02-8669999) CARBURETOR Parts Diagram

Water Pump, Made in Japan

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-ZE0-025

SEE PART DETAILS - PRI; GASKET SET

$21.99

$

In Stock, only 1 left!

0

2

Honda 16011-ZE0-005

VALVE SET, FLOAT (SEAT NOT INCLUDED)

$31.99

$

In Stock, only 1 left!

0

3

Honda 16013-ZE0-005

FLOAT SET

$33.99

$

In Stock, only 1 left!

0

4

Honda 16015-ZE0-831

CHAMBER SET, FLOAT (CARBURETOR NO.)

Note: Use from Engine SN BE06H C.

$40.99

$

In Stock, only 1 left!

0

4

Honda 16015-ZE1-811

CHAMBER SET, FLOAT (CARBURETOR NO.)
(Superseded to 16015-ZE0-831)

Note: Use up to Engine SN BE06H B.

$40.99

$

In Stock, only 1 left!

0

5

Honda 16016-ZE0-005

SCREW SET, PILOT (CARBURETOR NO.)

$16.99

$

In Stock, only 1 left!

0

7

Honda 16024-ZE1-811

SCREW SET, DRAIN

$11.99

$

In Stock, only 3 left!

0

8

Honda 16028-ZE0-005

SEE PART DETAILS - SUP; SCREW SET
(Superseded to 16028-ZK7-S91)

$14.99

$

In Stock, only 1 left!

0

8

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

$14.99

$

In Stock, only 1 left!

0

9

Honda 16044-ZE0-005

CHOKE SET (CARBURETOR NO.)

Note: Use from Engine SN BE06H B.

$40.99

$

Usually ships in 3-6 days

0

10

Honda 16100-ZH8-812

CARBURETOR ASSY. (BE06H C)
(Superseded to 16100-ZH8-W41)

Note: Use up to Engine SN 4012407.

$110.99

$

Usually ships in 3-6 days

0

10

Honda 16100-ZH8-812

CARBURETOR ASSY. (BE06H C)
(Superseded to 16100-ZH8-W41)

Note: Use from Engine SN 4012408.

$110.99

$

Usually ships in 3-6 days

0

11

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

$18.99

$

In Stock, only 1 left!

0

12

Honda 16166-ZH8-W50

NOZZLE, MAIN (CARBURETOR NO.)

Note: Use from Engine SN BE06H B.

$27.99

$

Usually ships in 3-6 days

0

12

Honda 16166-ZH8-810

NOZZLE, MAIN (CARBURETOR NO.)

Note: Use up to Engine SN BE06H A.

$28.99

$

Usually ships in 3-6 days

0

13

Honda 16211-ZE1-000

INSULATOR, CARBURETOR

$26.99

$

Usually ships in 3-6 days

0

14

Honda 16212-ZH8-800

GASKET, INSULATOR

$3.99

$

In Stock, Qty 20+

0

15

Honda 16220-ZE1-020

SEE PART DETAILS - PRI; SPACER, CARBURETOR

$8.99

$

In Stock, Qty 9

0

16

Honda 16221-ZH8-801

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$2.49

$

In Stock, Qty 20+

0

17

Honda 16610-ZE1-000

LEVER, CHOKE (STD)

$11.99

$

In Stock, only 3 left!

0

18

Honda 16953-ZE1-812

LEVER, PETCOCK

$11.99

$

In Stock, Qty 9

0

19

Honda 16954-ZE1-812

SEE PART DETAILS - PRI; PLATE, LEVER SETTING

$4.49

$

In Stock, only 1 left!

0

20

Honda 16956-ZE1-811

SEE PART DETAILS - PRI; SPRING, PETCOCK LEVER

$4.49

$

Usually ships in 3-6 days

0

21

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, PETCOCK

$4.99

$

In Stock, Qty 20+

0

22

Honda 93500-03006-0H

SCREW, PAN (3X6)

Note: Use from Engine SN BE06H C.

$1.49

$

In Stock, only 3 left!

0

22

Honda 93500-03008-0G

SCREW, PAN (3X8)

Note: Use up to Engine SN BE06H B.

$

$

Not available

23

Honda 94305-20122

PIN, SPRING (2X12)

$2.49

$

In Stock, only 3 left!

0

24

Honda 99101-ZF5-0680

SEE PART DETAILS - SUP; JET, MAIN (#68)

Note: (Optional).

$

$

Currently unavailable

24

Honda 99101-ZH7-0680

SEE PART DETAILS - PRI; JET, MAIN (#68)

Note: (Optional).

$12.99

$

Usually ships in 3-6 days

0

24

Honda 99101-ZH7-0700

SEE PART DETAILS - PRI; JET, MAIN (#70) (CARBURETOR NO.)

Note: (Optional).

$10.99

$

Usually ships in 3-6 days

0

24

Honda 99101-ZH8-0700

SEE PART DETAILS - SUP; JET, MAIN (#70) (CARBURETOR NO.)
(Superseded to 99101-ZK7-0700)

Note: Use from Engine SN BE06H C.

$10.99

$

In Stock, Qty 9

0

24

Honda 99101-ZK7-0700

SEE PART DETAILS - PRI; JET, MAIN (#70)

Note: Use from Engine SN BE06H C.

$10.99

$

In Stock, Qty 9

0

24

Honda 99101-ZF5-0720

SEE PART DETAILS - SUP; JET, MAIN (#72) (CARBURETOR NO.)
(Superseded to 99101-ZH8-0720)

Note: Use up to Engine SN BE06H A.

$8.99

$

In Stock, only 1 left!

0

24

Honda 99101-ZH8-0720

SEE PART DETAILS - PRI; JET, MAIN (#72)

Note: Use up to Engine SN BE06H A.

$8.99

$

In Stock, only 1 left!

0

25

Honda 99204-ZE0-0350

JET SET, PILOT (#35) (CARBURETOR NO.)

Note: Use from Engine SN BE06H B.

$24.99

$

In Stock, only 1 left!

0

25

Honda 99204-ZE0-0380

JET SET, PILOT (#38) (CARBURETOR NO.)

Note: Use up to Engine SN BE06H A.

$24.99

$

In Stock, only 2 left!

0
