WB30 X CR (GX140) - Honda Water Pump, Made in Japan (SN: GX140-1000001 - GX140-9999999) RECOIL STARTER Parts Diagram

Water Pump, Made in Japan

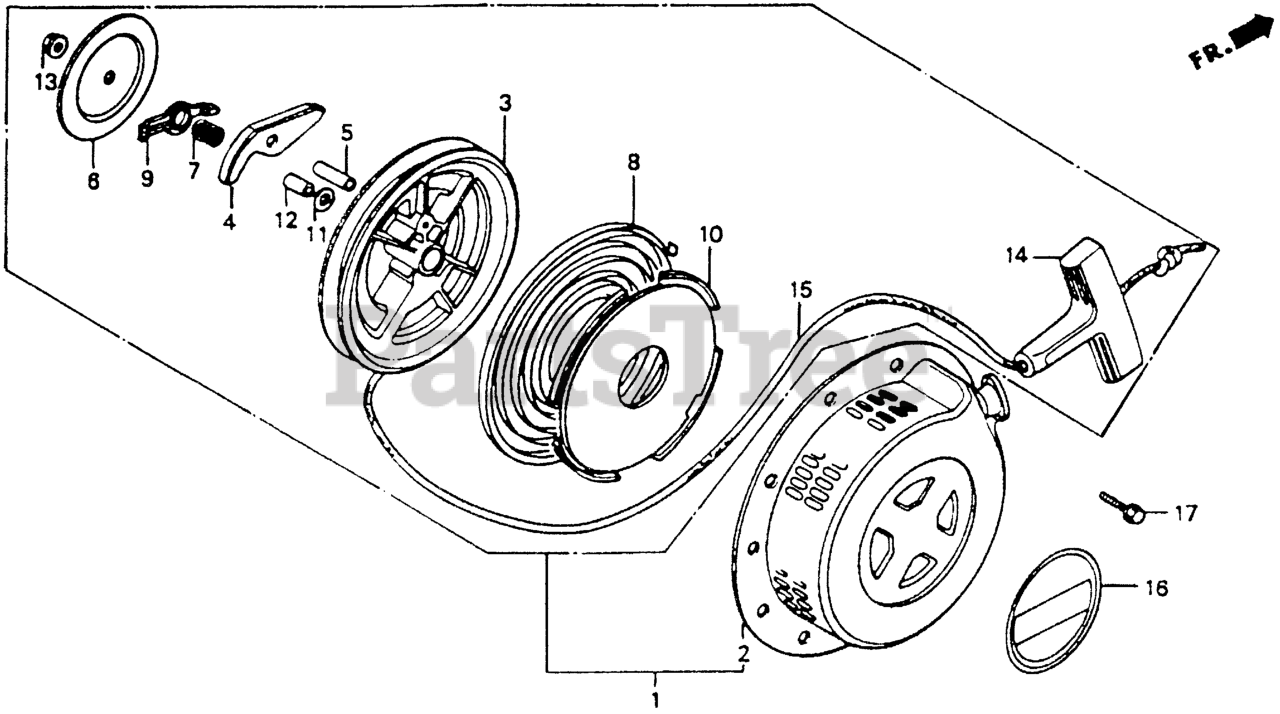

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-ZE1-003ZF

SEE PART DETAILS - PRI; STARTER ASSY., RECOIL *R280* (POWER RED)

$123.99

$

Usually ships in 3-6 days

0

2

Honda 28410-ZE1-003ZA

SEE PART DETAILS - PRI; CASE, RECOIL STARTER *R8* (BRIGHT RED) (Honda Code 3349883).
(Superseded to 28410-ZE1-003ZF)

$

$

Not available

3

Honda 28420-ZE1-003

PULLEY, RECOIL STARTER (Honda Code 1428598).

$45.99

$

Usually ships in 3-6 days

0

4

Honda 28422-ZE1-003

RATCHET, STARTER (Honda Code 1428606).

$6.49

$

Usually ships in 3-6 days

0

5

Honda 28423-ZE1-003

PIN, STARTER RATCHET (Honda Code 1428614).

$9.49

$

Usually ships in 3-6 days

0

6

Honda 28431-ZE1-003

PLATE, FRICTION (Honda Code 1428622).

$6.99

$

Usually ships in 3-6 days

0

7

Honda 28441-ZE1-003

SPRING, FRICTION (Honda Code 1428630).

$6.99

$

Usually ships in 3-6 days

0

8

Honda 28442-ZE1-003

SPRING, RECOIL STARTER (Honda Code 1428648).

$22.99

$

Usually ships in 3-6 days

0

9

Honda 28443-ZE1-003

GUIDE, RATCHET (Honda Code 1428655).

$15.99

$

Usually ships in 3-6 days

0

10

Honda 28445-ZE1-003

CASE, RECOIL STARTER SPRING (Honda Code 1428663).

$16.99

$

Usually ships in 3-6 days

0

11

Honda 28446-ZE1-003

WASHER, STARTER (Honda Code 1428671).

$5.49

$

Usually ships in 3-6 days

0

12

Honda 28447-ZE1-003

SHAFT, SUB (Honda Code 1428689).

$6.49

$

Usually ships in 3-6 days

0

13

Honda 28448-ZE1-003

NUT (Honda Code 1428697).

$

$

Not available

14

Honda 28461-ZE1-013

SEE PART DETAILS - PRI; KNOB, RECOIL STARTER

$8.99

$

In Stock, only 2 left!

0

15

Honda 28462-ZE1-003

SEE PART DETAILS - PRI; ROPE, RECOIL STARTER (#5X59") (NA USE ALT:08550-ZG921-11) (Honda Code 1428754).

$9.49

$

Usually ships in 3-6 days

0

16

Honda 87521-ZE1-810

EMBLEM (EXTERNAL) (Honda Code 1441419).

$

$

Not available

17

Honda 95701-06008-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X8) (Honda Code 2581353).

$4.49

$

In Stock, Qty 20+

0
