WB30 X CR (GX140) - Honda Water Pump, Made in Japan (SN: GX140-1000001 - GX140-9999999) FRAME BED@TOOLS Parts Diagram

Water Pump, Made in Japan

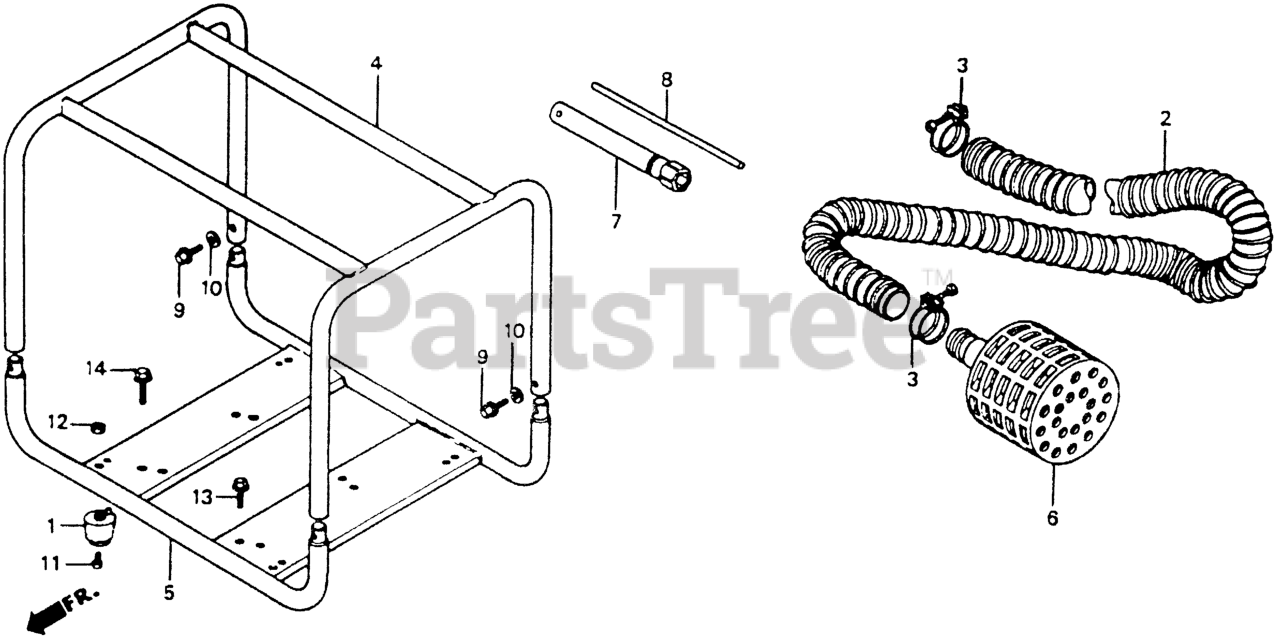

FRAME BED@TOOLS Parts Diagram

  • Title

1

Honda 60407-812-001

RUBBER (LOWER)

Note: (Optional)

$20.99

$

Usually ships in 3-6 days

0

2

Honda 78111-YB4-000

HOSE, SUCTION (4.5M)

Note: (Optional)

$

$

Currently unavailable

3

Honda 78139-YB4-000

BAND, HOSE

Note: (Optional)

$13.99

$

Usually ships in 3-6 days

0

4

Honda 78206-YB4-010

FRAME (UPPER)

$250.99

$

Usually ships in 3-6 days

0

5

Honda 78207-YB4-020

FRAME (LOWER)

$293.99

$

Usually ships in 3-6 days

0

6

Honda 78325-YB4-000

SEE PART DETAILS - SUP; STRAINER Use up to Frame SN 1835623.
(Superseded to 78325-YB4-020)

Note: (Optional) Use up to Frame SN 1835623.

$41.99

$

Usually ships in 3-6 days

0

6

Honda 78325-YB4-020

SEE PART DETAILS - PRI; STRAINER (ENGINE NO.)

Note: (Optional)

$41.99

$

Usually ships in 3-6 days

0

7

Honda 89218-ZE1-000

WRENCH, SPARK PLUG (Honda Code 1431048).

$20.99

$

Usually ships in 3-6 days

0

8

Honda 89219-805-000

HANDLE, BOX WRENCH (NOT AVAILABLE) (Honda Code 0066654).

$3.99

$

Usually ships in 3-6 days

0

9

Honda 90015-898-000

BOLT, FLANGE (8X20) (NOT AVAILABLE)

$2.99

$

Usually ships in 3-6 days

0

10

Honda 90501-898-000

WASHER, FRAME JOINT

$2.99

$

In Stock, Qty 12

0

11

Honda 93500-06010

SCREW, PAN (6X10)
(Superseded to 93500-06010-0A)

Note: (Optional)

$1.49

$

In Stock, only 4 left!

0

11

Honda 93500-06010-0A

SCREW, PAN (6X10)

Note: (Optional)

$1.49

$

In Stock, only 4 left!

0

12

Honda 94001-06000-0S

SEE PART DETAILS - SUP; NUT, HEX. (6MM) (Honda Code 0156067).
(Superseded to 94001-06200-0S)

Note: (Optional)

$1.99

$

In Stock, Qty 20+

0

12

Honda 94001-06200-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM) (Honda Code 2043255).

Note: (Optional)

$1.99

$

In Stock, Qty 20+

0

13

Honda 95701-08025-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X25) (Honda Code 2545325).

$2.49

$

In Stock, Qty 5

0

14

Honda 95701-08032-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X32) (Honda Code 2751725).

$1.99

$

In Stock, Qty 5

0
