WB30 X CR (GX140) - Honda Water Pump, Made in Japan (SN: GX140-1000001 - GX140-9999999) CYLINDER HEAD Parts Diagram

Water Pump, Made in Japan

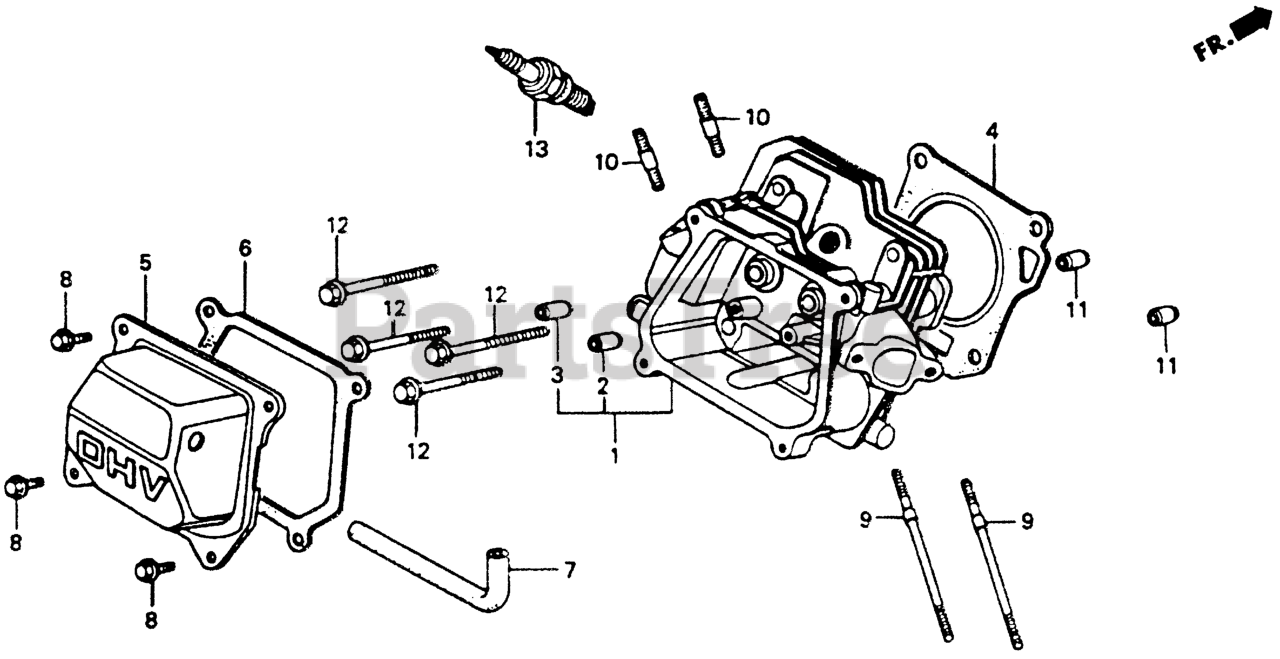

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 122A0-ZE1-000

CYLINDER HEAD (NOT AVAILABLE) (Honda Code 1426451).

Note: Use up to Engine SN 1206239.

$

$

Currently unavailable

1

Honda 122A0-ZE1-010

CYLINDER HEAD

Note: Use from Engine SN 1206240 to 1369812.

$

$

Currently unavailable

1

Honda 122A0-ZE1-020

SEE PART DETAILS - PRI; CYLINDER HEAD (Honda Code 1950575).

Note: Use from Engine SN 1369813.

$

$

Not available

2

Honda 12204-ZE1-305

SEE PART DETAILS - SUP; GUIDE, VALVE (OVER SIZE) Use up to Engine SN 2416541.

Note: (Optional)

$

$

Not available

3

Honda 12205-ZE1-305

GUIDE, EX. VALVE (OVER SIZE)

Note: (Optional) Use up to Engine SN 1369812.

$

$

Currently unavailable

4

Honda 12251-ZE1-800

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD (Honda Code 4210860).

$11.99

$

In Stock, only 1 left!

0

5

Honda 12310-ZE1-020

SEE PART DETAILS - PRI; COVER, HEAD

$18.99

$

In Stock, only 1 left!

0

6

Honda 12391-ZE1-000

GASKET, CYLINDER HEAD COVER (Honda Code 1426527).

$5.49

$

In Stock, Qty 20+

0

7

Honda 15721-ZE1-000

SEE PART DETAILS - SUP; TUBE, BREATHER (Honda Code 1427095).
(Superseded to 15721-ZE1-710)

Note: Use up to Engine SN 1220569.

$

$

Not available

7

Honda 15721-ZE1-010

SEE PART DETAILS - PRI; TUBE, BREATHER

Note: Use from Engine SN 1220570.

$4.99

$

Usually ships in 3-6 days

0

8

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

Note: Use up to Engine SN 1049824.

$1.99

$

In Stock, Qty 20+

0

8

Honda 90016-ZE1-000

BOLT, FLANGE (6X13) (Honda Code 1541002).

Note: Use from Engine SN 1049825.

$3.99

$

Usually ships in 3-6 days

0

9

Honda 90043-ZE1-010

SEE PART DETAILS - SUP; BOLT, STUD (6X109)

$6.49

$

Usually ships in 3-6 days

0

9

Honda 90043-ZE1-020

SEE PART DETAILS - PRI; BOLT, STUD (6X109) (Honda Code 4588323).

$6.49

$

In Stock, only 3 left!

0

10

Honda 90047-ZE1-000

BOLT, STUD (8X32) (Honda Code 1431097).

$4.49

$

In Stock, only 2 left!

0

11

Honda 94301-10160

SEE PART DETAILS - PRI; PIN A, DOWEL (10X16) (Honda Code 0058206).

$3.49

$

In Stock, only 3 left!

0

12

Honda 95723-08060-00

BOLT, FLANGE (8X60) (Honda Code 1436591).

$2.49

$

Usually ships in 3-6 days

0

13

Honda 98079-56846

SEE PART DETAILS - PRI; SPARK PLUG (BPR6ES) (NGK) (Honda Code 1441112).

$3.49

$

In Stock, Qty 20+

0

13

Honda 98079-56855

SPARK PLUG (W20EPR-U) (DENSO) (Honda Code 1441120).

$3.99

$

In Stock, Qty 11

0
