WB30 X CR (GX140) - Honda Water Pump, Made in Japan (SN: GX140-1000001 - GX140-9999999) CASING@IMPELLER Parts Diagram

Water Pump, Made in Japan

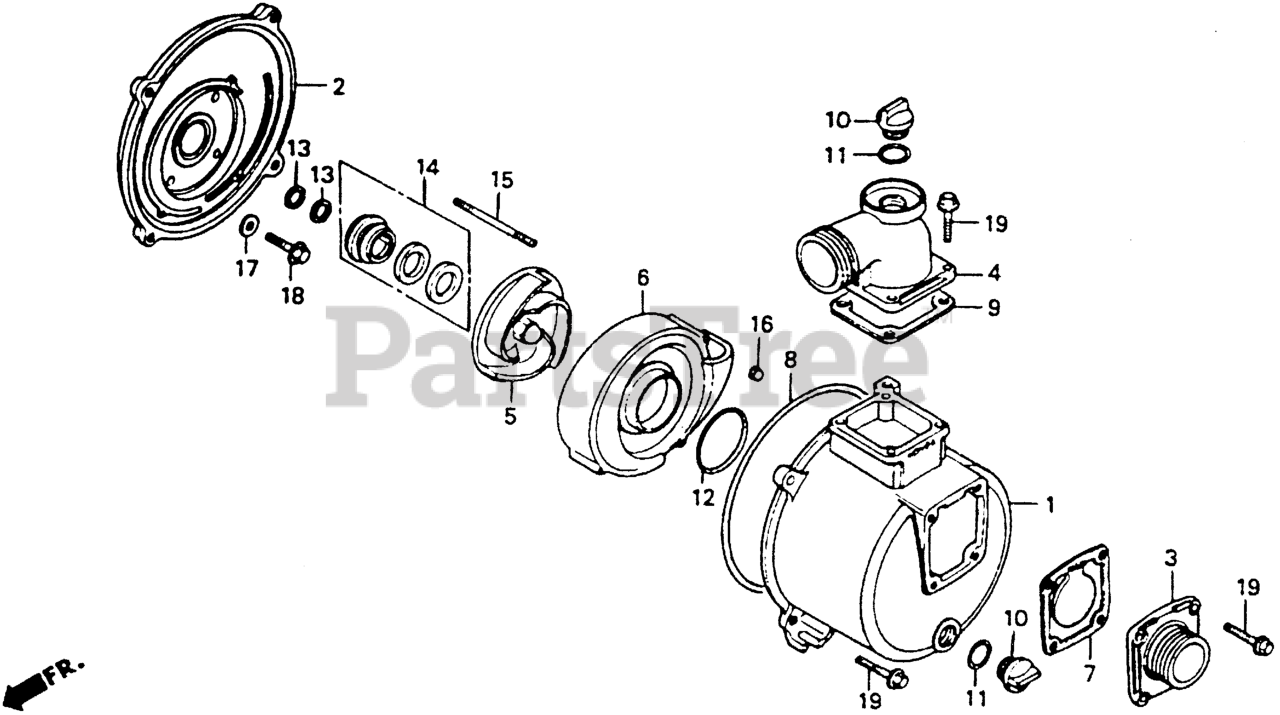

CASING@IMPELLER Parts Diagram

  • Title

1

Honda 78101-YB4-030

SEE PART DETAILS - PRI; CASING

$470.99

$

Usually ships in 3-6 days

0

2

Honda 78102-YG4-000

SEE PART DETAILS - PRI; COVER, CASING

$32.99

$

Usually ships in 3-6 days

0

3

Honda 78103-YB4-630

PIPE, INLET (NPTF)

$

$

Not available

4

Honda 78104-YB4-631

PIPE, OUTLET (NPTF)

$

$

Not available

5

Honda 78106-YB4-000

IMPELLER

$109.99

$

Usually ships in 3-6 days

0

6

Honda 78107-YB4-K10

SEE PART DETAILS - PRI; CASE, VOLUTE

$179.99

$

Usually ships in 3-6 days

0

7

Honda 78110-YB4-000

VALVE, IN.

$41.99

$

In Stock, only 4 left!

0

8

Honda 78112-954-003

RING, CASING SEAL

$18.99

$

Usually ships in 3-6 days

0

9

Honda 78114-YB4-000

GASKET, OUTLET

$15.99

$

In Stock, only 1 left!

0

10

Honda 78117-YB7-020

SEE PART DETAILS - PRI; CAP, FILLER

Note: Use from Frame SN 1874937. Use up to Frame SN 1874936.

$14.99

$

Usually ships in 3-6 days

0

11

Honda 78118-YB0-003

SEE PART DETAILS - SUP; RING, SEAL (B)
(Superseded to 78118-YB0-004)

$10.99

$

In Stock, only 4 left!

0

11

Honda 78118-YB0-004

SEE PART DETAILS - PRI; RING, SEAL (B)

$10.99

$

In Stock, only 4 left!

0

12

Honda 78118-YB4-004

O-RING (71X5.7)

$12.99

$

In Stock, only 2 left!

0

13

Honda 78122-YB3-000

SHIM, ADJUSTER

$5.49

$

In Stock, only 2 left!

0

14

Honda 78130-YB4-901

SEE PART DETAILS - PRI; SEAL ASSY., MECHANICAL WATER

$116.99

$

In Stock, only 3 left!

0

15

Honda 90043-YB4-000

BOLT, STUD (6X50)

$4.49

$

In Stock, only 2 left!

0

16

Honda 90281-YB4-000

NUT, CAP (6MM)

$2.49

$

In Stock, only 3 left!

0

17

Honda 90474-333-000

WASHER, SEALING (8MM)

$5.49

$

In Stock, only 4 left!

0

18

Honda 95701-08028-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X28) (Honda Code 2581387).

$1.99

$

In Stock, only 4 left!

0

19

Honda 95701-10032-00

BOLT, FLANGE (10X32)

$1.99

$

Usually ships in 3-6 days

0
