WB30 X CR (GX140) - Honda Water Pump, Made in Japan (SN: GX140-1000001 - GX140-9999999) CAMSHAFT@VALVE Parts Diagram

Water Pump, Made in Japan

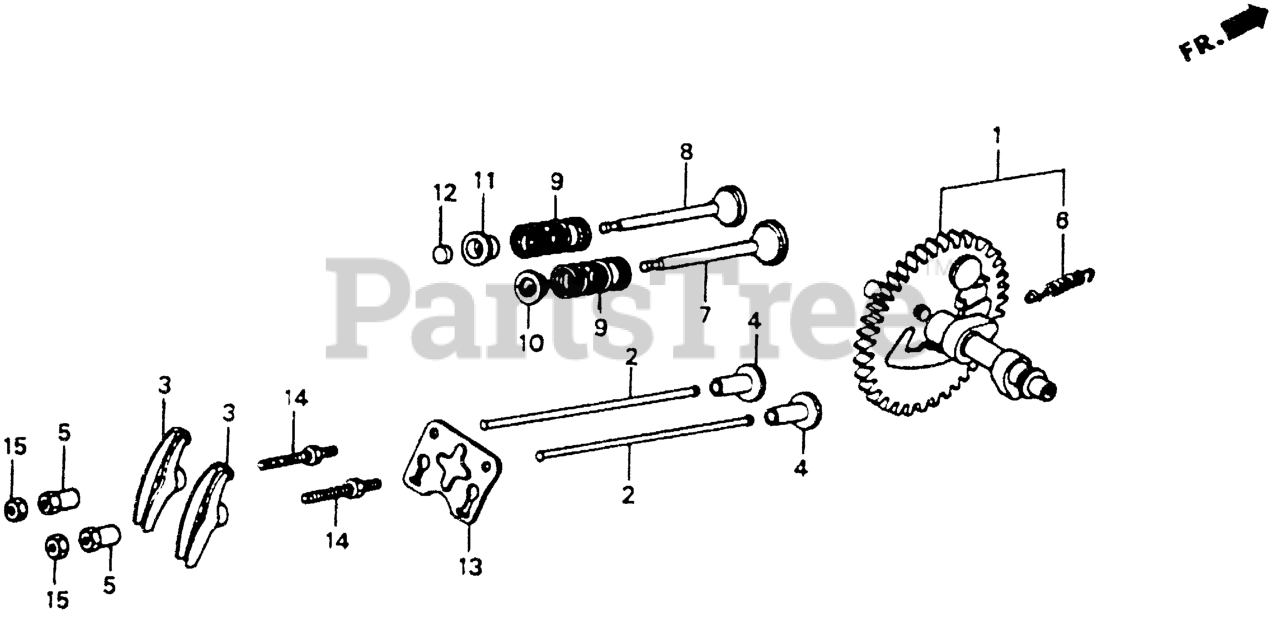

CAMSHAFT@VALVE Parts Diagram

  • Title

1

Honda 14100-ZE1-000

SEE PART DETAILS - SUP; CAMSHAFT ASSY. (Honda Code 1426725).
(Superseded to 14100-ZE1-812)

Note: Use up to Engine SN 1062314.

$154.99

$

Usually ships in 3-6 days

0

1

Honda 14100-ZE1-810

SEE PART DETAILS - SUP; CAMSHAFT ASSY. (Honda Code 1744200).
(Superseded to 14100-ZE1-812)

Note: Use up to Engine SN 1265459.

$154.99

$

Usually ships in 3-6 days

0

1

Honda 14100-ZE1-812

SEE PART DETAILS - PRI; CAMSHAFT ASSY. (Honda Code 1929611).

$154.99

$

Usually ships in 3-6 days

0

2

Honda 14410-ZE1-010

SEE PART DETAILS - PRI; ROD, PUSH (Honda Code 3352655).

$8.49

$

In Stock, only 1 left!

0

3

Honda 14431-ZE1-000

ARM, VALVE ROCKER (Honda Code 1426824).

$7.99

$

In Stock, only 1 left!

0

4

Honda 14441-ZE1-000

SEE PART DETAILS - SUP; LIFTER, VALVE (Honda Code 1426832).
(Superseded to 14441-ZE1-010)

$14.99

$

Usually ships in 3-6 days

0

4

Honda 14441-ZE1-010

SEE PART DETAILS - PRI; LIFTER, VALVE (Honda Code 5181383).

$14.99

$

Usually ships in 3-6 days

0

5

Honda 14451-Z4M-000

SEE PART DETAILS - PRI; PIVOT, ROCKER ARM

$5.99

$

In Stock, Qty 5

0

6

Honda 14568-ZE1-000

SPRING, WEIGHT RETURN (Honda Code 1426907).

$3.49

$

In Stock, only 2 left!

0

7

Honda 14711-ZE1-000

VALVE, IN. (Honda Code 1426931).

$20.99

$

Usually ships in 3-6 days

0

8

Honda 14721-ZE1-000

SEE PART DETAILS - SUP; VALVE, EX. (Honda Code 1426964).
(Superseded to 14721-ZE1-810)

$34.99

$

Usually ships in 3-6 days

0

9

Honda 14751-ZE1-000

SPRING, VALVE (Honda Code 1426972).

$3.99

$

In Stock, only 3 left!

0

10

Honda 14771-Z0T-900

SEE PART DETAILS - PRI; RETAINER, VALVE SPRING (EXHAUST SIDE)

$1.49

$

In Stock, Qty 14

0

11

Honda 14773-ZE1-000

SEE PART DETAILS - PRI; RETAINER, EX. VALVE SPRING

$10.99

$

In Stock, only 1 left!

0

12

Honda 14781-ZE1-000

ROTATOR, VALVE (Honda Code 1427004).

$5.99

$

In Stock, only 1 left!

0

13

Honda 14791-ZE1-000

PLATE, PUSH ROD GUIDE (Honda Code 1427020).

Note: Use up to Engine SN 1206239.

$3.99

$

In Stock, only 1 left!

0

13

Honda 14791-ZE1-010

PLATE, PUSH ROD GUIDE (Honda Code 1899947).

Note: Use from Engine SN 1206240.

$4.49

$

Usually ships in 3-6 days

0

14

Honda 90012-ZE0-000

BOLT, PIVOT (Honda Code 1431063).

Note: Use up to Engine SN 1206239.

$9.49

$

Usually ships in 3-6 days

0

14

Honda 90012-ZE0-010

BOLT, PIVOT (8MM) (Honda Code 1756964).

Note: Use from Engine SN 1206240.

$8.49

$

Usually ships in 3-6 days

0

15

Honda 90206-ZE1-000

NUT, PIVOT ADJ. (Honda Code 1431287).

$4.49

$

In Stock, Qty 6

0
