WB30 T DRA (WZAN) - Honda Water Pump, Made in Thailand (SN: WZAN-1000001 - WZAN-1999999) PISTON Parts Diagram

Water Pump, Made in Thailand

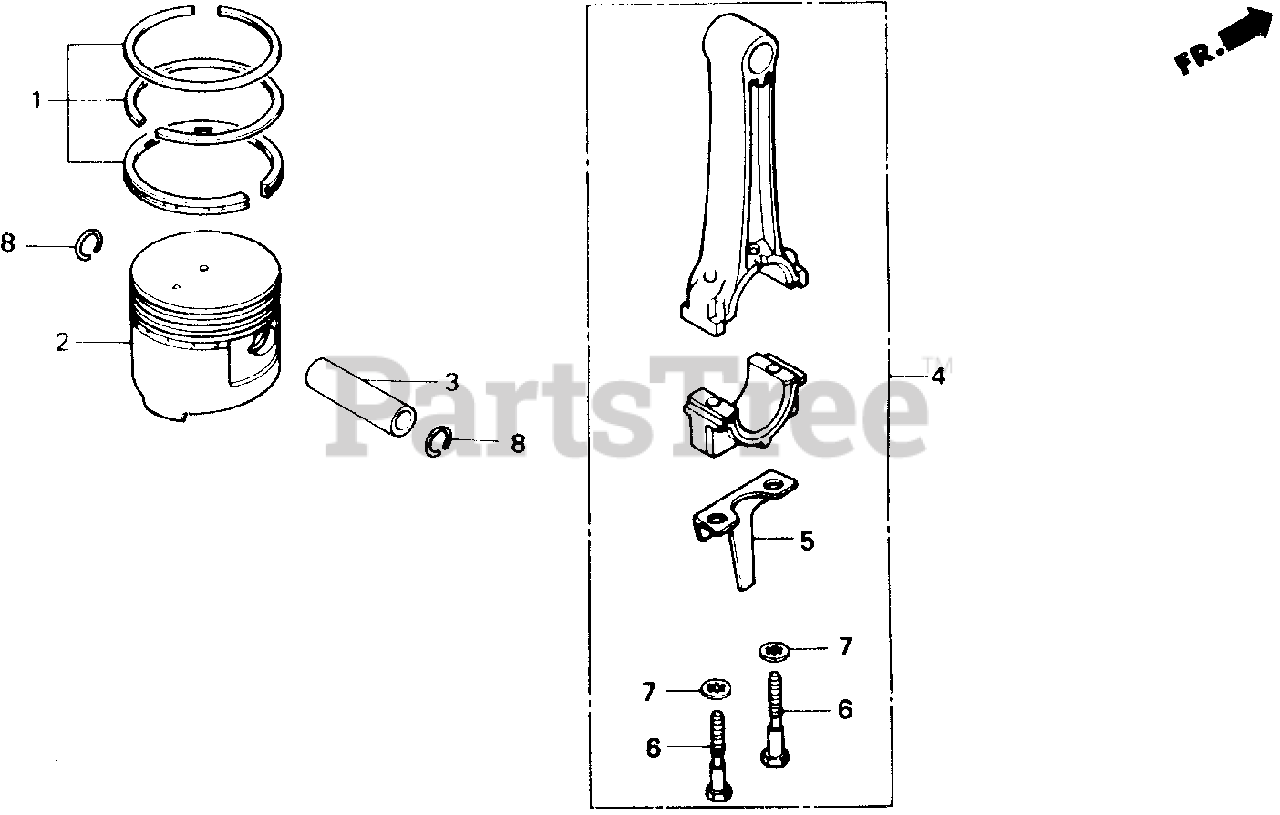

PISTON Parts Diagram

  • Title

1

Honda 13010-YA0-004

SEE PART DETAILS - PRI; RING SET, PISTON (STD) (NIPPON)

$45.99

$

Usually ships in 3-6 days

0

1

Honda 13010-894-003

SEE PART DETAILS - SUP; RING SET, PISTON (STD) (TEIKOKU)

$45.99

$

Usually ships in 3-6 days

0

1

Honda 13010-894-004

SEE PART DETAILS - SUP; RING SET, PISTON (STD) (NIPPON)

$

$

Not available

1

Honda 13011-YA0-004

SEE PART DETAILS - PRI; RING SET, PISTON (0.25)

$

$

Not available

1

Honda 13011-894-003

SEE PART DETAILS - SUP; RING SET, PISTON (0.25)
(Superseded to 13011-YA0-004)

$

$

Not available

1

Honda 13012-YA0-004

SEE PART DETAILS - PRI; RING SET, PISTON (0.50)

$50.99

$

Usually ships in 3-6 days

0

1

Honda 13012-894-003

SEE PART DETAILS - SUP; RING SET, PISTON (0.50)

$

$

Currently unavailable

1

Honda 13012-894-004

SEE PART DETAILS - SUP; RING SET, PISTON (0.50)
(Superseded to 13012-YA0-004)

$50.99

$

Usually ships in 3-6 days

0

1

Honda 13013-YA0-004

RING SET, PISTON (0.75)

$50.99

$

Usually ships in 3-6 days

0

2

Honda 13101-883-T01

SEE PART DETAILS - SUP; PISTON (STD)

$

$

Currently unavailable

2

Honda 13102-883-003

PISTON (0.25)

$

$

Not available

2

Honda 13103-883-003

PISTON (0.50)

$

$

Not available

2

Honda 13104-883-003

PISTON (0.75)

$57.99

$

Usually ships in 3-6 days

0

3

Honda 13111-883-000

PIN, PISTON

$12.99

$

In Stock, only 1 left!

0

4

Honda 13200-883-040

SEE PART DETAILS - SUP; ROD ASSY., CONNECTING
(Superseded to 13200-883-060)

$

$

Not available

4

Honda 13200-883-345

SEE PART DETAILS - SUP; ROD ASSY., CONNECTING

$

$

Currently unavailable

5

Honda 13281-883-030

DIPPER, CONNECTING ROD

$13.99

$

Usually ships in 3-6 days

0

6

Honda 90001-883-020

BOLT, CONNECTING ROD (7MM)

$4.49

$

Usually ships in 3-6 days

0

7

Honda 90432-889-003

WASHER, LOCK (7MM)

$1.99

$

Usually ships in 3-6 days

0

8

Honda 90551-883-000

SEE PART DETAILS - SUP; CLIP, PISTON PIN (15MM)
(Superseded to 94601-15000)

$1.49

$

Usually ships in 3-6 days

0

8

Honda 94601-15000

SEE PART DETAILS - PRI; CLIP, PISTON PIN (15MM)

$1.49

$

Usually ships in 3-6 days

0
